Hydraulic Scrap Metal Baler/scrap Metal Shavings Packer for Sale Y83-5000
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
Hydraulic Horizontal Baler for Waste Paper,cardboard Baler,baling Press Machie XS2-100T
-
Y81 Hydraulic Manual Metal Baling Press Y81T-2500
-
Hydraulic Horizontal Semi-automatic Waste Paper Baler Machine, Bailing Press Machine XS2-100T
-
Y81T-4000 Hydraulic Scrap Metal Baler Press,used Scrap Metal Baling Press
-
Silage Round Bale Coating Machine Xiashi-300
-
Hydraulic Vertical Semi-automatic Baler for Waste Rag, Used Clothes Baler Machine XS-205T
Product Details
| Place of Origin | Guangxi, China | Brand Name | XS | |
| Model Number | Y83-5000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Application
Y83 series of scrap metal pressure hydraulic press, suitable for aluminium alloy profile factory, cast steel, cast aluminum, cast copper factory, aluminum scrap, steel scrap, scrap iron, copper scrap, briquetting and recycled, instead of scrap steel, pig iron, aluminum ingots, copper scrap as raw materials, can reduce the loss. This equipment can be crumbs of cast iron, steel scrap, copper scrap, aluminum scrap, such as direct cold pressing into 3 ~ 6 kg of cylindrical cake pieces, in order to facilitate transport, cast furnace, the whole process without heating, additives, or other processes. Cast iron after suppressing density can be up to 5 ~ 6 t/m3.
Features
1..The hydraulic pressure drive, work smoothly, no vibration.
2. The infrastructure is simple, installation does not need to use foot screws.
3. PLC control, the user can choose manual or automatic operation.
4. According to user requirements can increase the automatic feeding mechanism.
Techical Parameters for your reference
Parameter name | Unit | Model | |||
|
| Master cylinder | Accelerating cylinder | Pushing block cylinder | Feeding cylinder |
Norminal force | KN | 5000 | 245 | 400 | 50 |
Inside diameter of cylinder | mm | 450 | 125 | 160 | 80 |
Diameter of piston rod | mm | 220 | 70 | 80 | 45 |
Working pressure | Mpa | 20 | 20 | 20 | 10 |
electric motor | 1set | Y250M-6 37KW | |||
oil pump | 1set | 160MCY14-1B | |||
Briquette density | ≥5T/m3 | ||||
work efficiency | 3-4 blocks / min (block weight 5.5 ~ 7kg) | ||||
Output per shift | 10-12T / shift (cast iron scrap) | ||||
Briquette size | Φ120mm | ||||
Cooling type | Water cooling | ||||
Operation | manual/PLC | ||||
Overall dimensions(mm) | Main machine:2500×1000×3500 Oil box:2200×1400×1800 | ||||

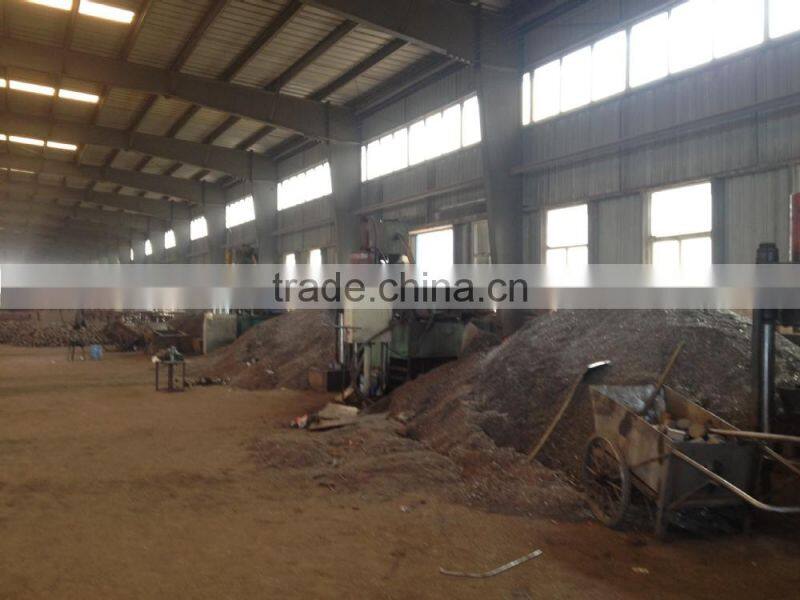

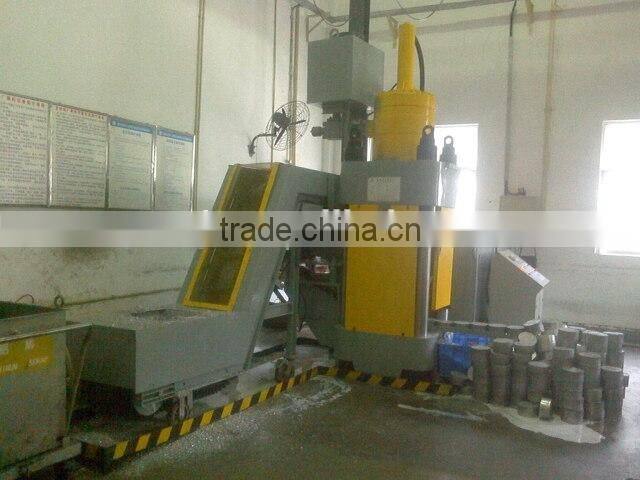

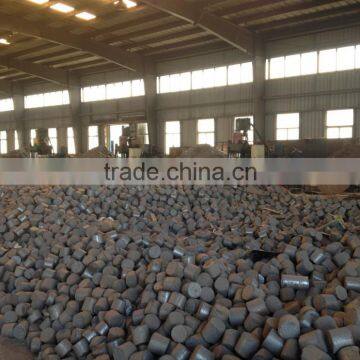

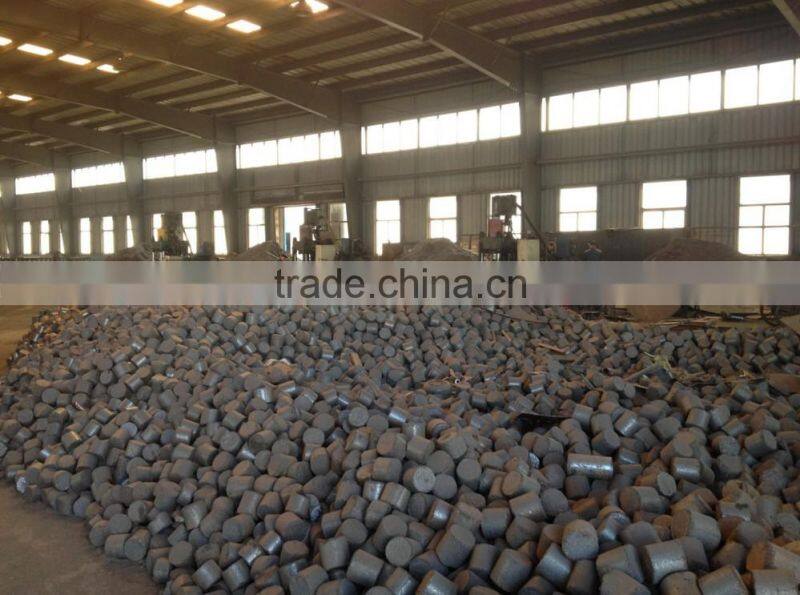

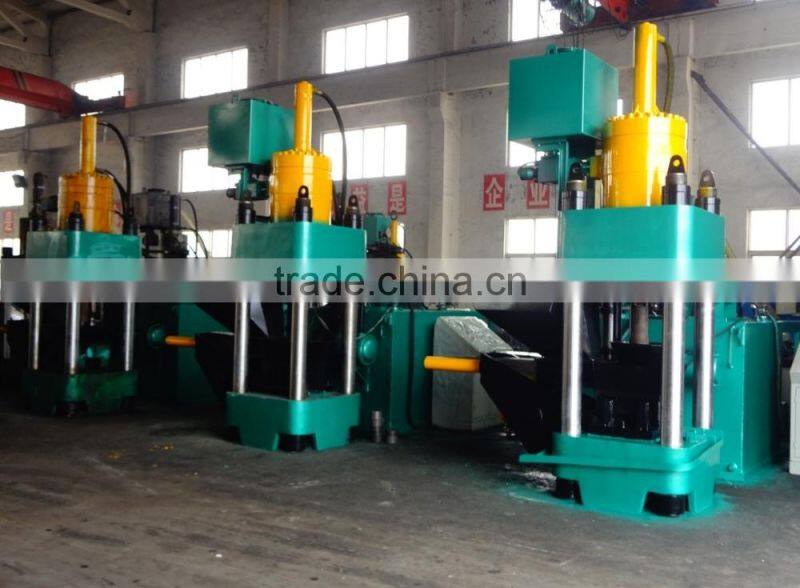

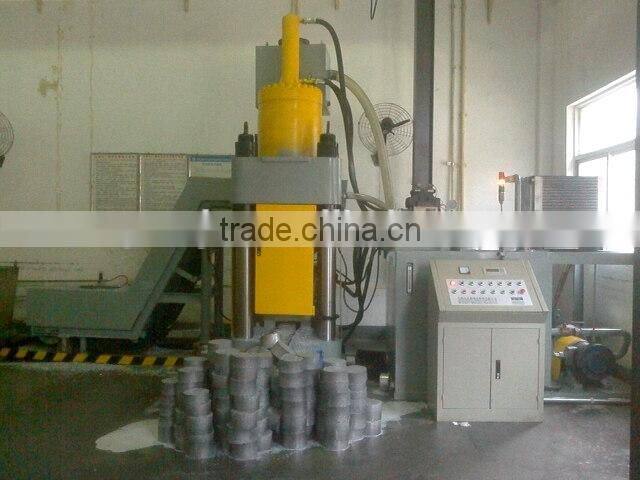

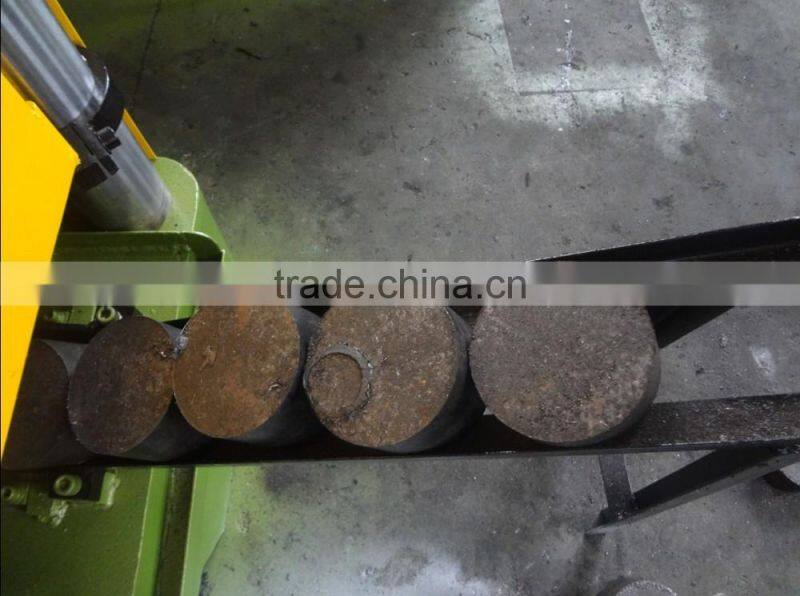

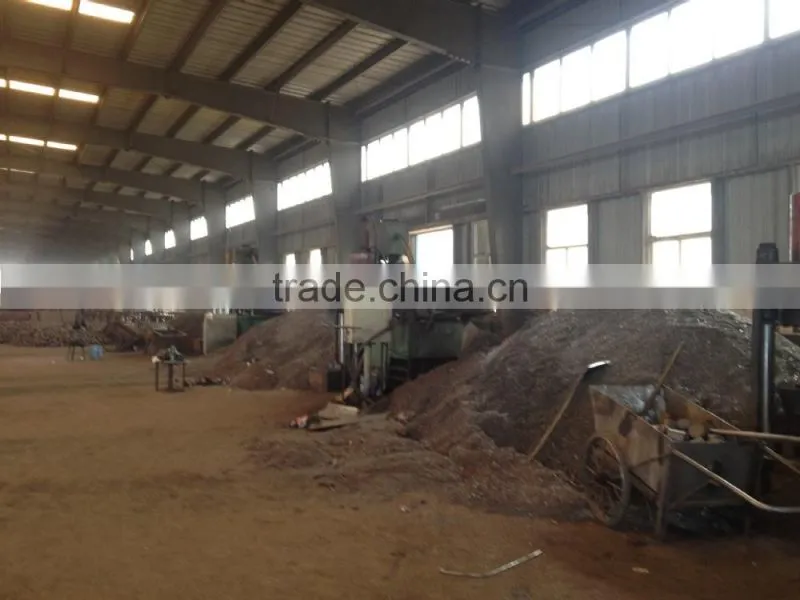

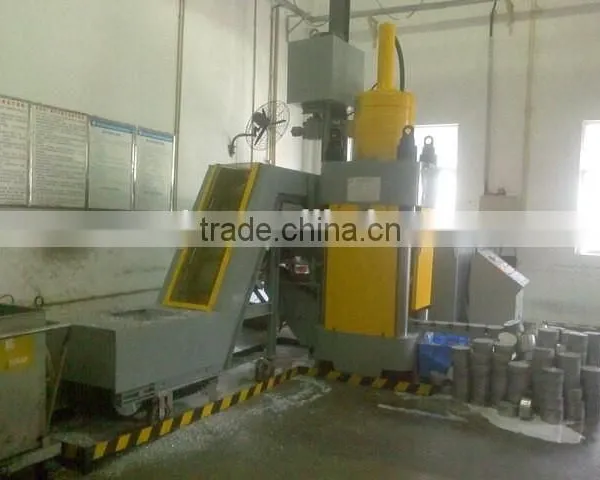

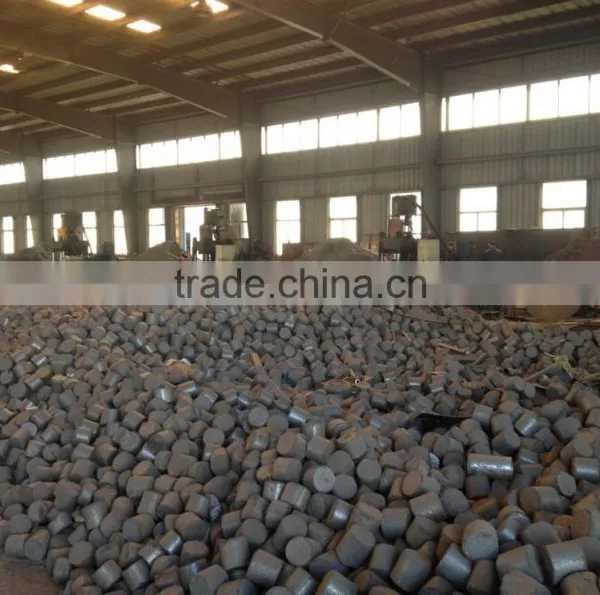

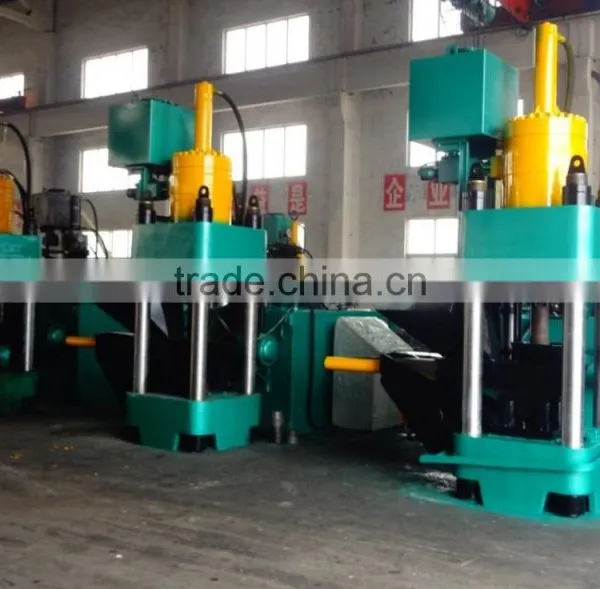

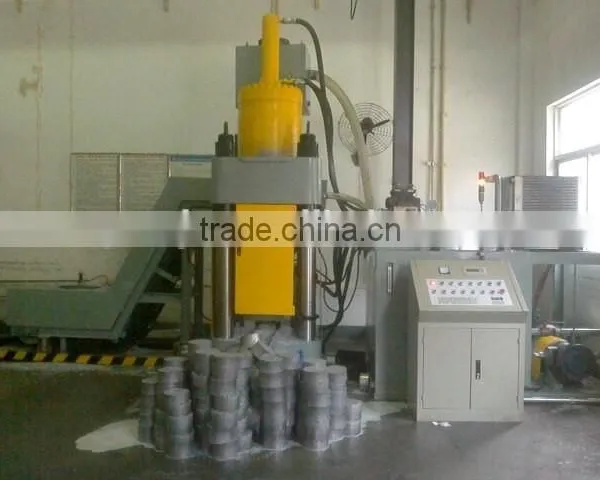

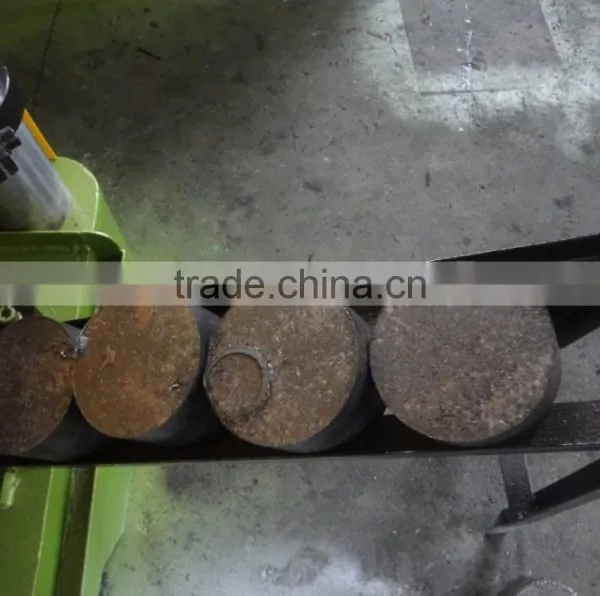

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
