Y81 Hydraulic Manual Metal Baling Press Y81T-2500
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
Hydraulic Horizontal Semi-automatic Waste Paper Baler Machine, Bailing Press Machine XS2-100T
-
Y81T-4000 Hydraulic Scrap Metal Baler Press,used Scrap Metal Baling Press
-
Silage Round Bale Coating Machine Xiashi-300
-
Hydraulic Vertical Semi-automatic Baler for Waste Rag, Used Clothes Baler Machine XS-205T
-
GD4028 Horizontal Band Sawing Machine
-
Full Automatic Metal Cutting Band Saw Machine GHY280
Product Details
| Condition | New | Automatic Grade | Semi-Automatic | |
| Usage | Metal Forming Machine | Place of Origin | Guangxi, China | |
| Brand Name | XiaShi | Model Number | Y81/T-2500 | |
| Power(W) | 22(Kw) | Certification | ISO9001,CE,3C | |
| Warranty | 1Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Metal scrap recycling
2.Operation by PLC automatic or manual valve
Product Description
Y81 metal baling press are suitable for all kinds of scrap metal as following
Apply in
1. Various steel paring
2. Scrap metals, such as waste copper, aluminum, copper and so on
3. All kinds of old things made of metal, like aluminum can, household appliances, oil drum bike, car etc
Features
1.Final bale out way: push out, turn out, lateral push out.
2.Operation by PLC automatic or manual valve.
3.Good quality seals, so no oil leak.
4.Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.
Technical parameter
Y81 Series Hydraulic Scrap Metal Baler | ||||||
No. | Type | Nominal force(KN) | Power (KW) | Feed Box Size (mm) | Bale Size (mm) | Output(kg/h) |
1 | Y81-1250 | 1250 | 15 | 1200*700*600 | 300*300 | 800-1500 |
2 | Y81Q-1350 | 1350 | 22 | 1400*600*600 | 600*240 | 1500-2200 |
3 | Y81-1600A | 1600 | 22 | 1600*1000*700 | 350*350 | 2000-3000 |
4 | Y81-1600B | 1600 | 22 | 1600*1200*800 | 400*400 | 2000-3000 |
5 | Y81-2000 | 2000 | 37 | 1800*1400*900 | 450*450 | 2500-3500 |
6 | Y81-2500 | 2500 | 44 | 2000*1400*900 | 500*500 | 3000-5000 |
7 | Y81-3150 | 3150 | 60/66 | 2000*1750*1200 | 500*500 | 3500-5000 |
8 | Y81-4000C | 4000 | 90 | 3000*2000*1200 | 600*600 | 6000-8000 |
9 | Y81-6000 | 6000 | 135 | 5000*2000*1200 | 700*700 | 8000-10000 |
Note: 1. Please choose the model according to different demand. 2. Manual or PLC automatic control can be chosen! | ||||||
Bale Effect diagram

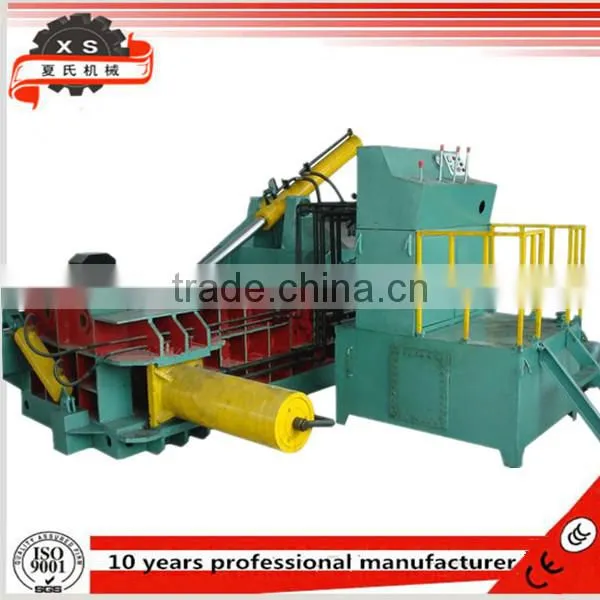

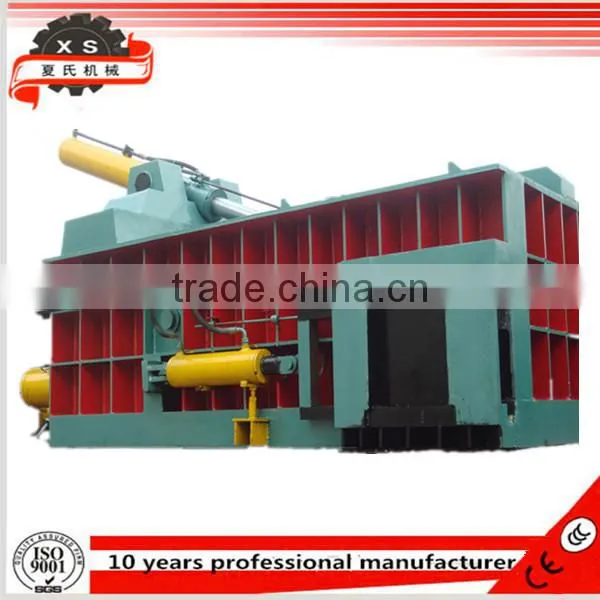

Detailed pictures for your reference
For more pictures
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
