Hydraulic Horizontal Semi-automatic Waste Paper Baler Machine, Bailing Press Machine XS2-100T

1.XS2-100T horizontal baler

2.system main force: 1000KN system

3.Baler structure: horizontal baler

4.Working way: hydraulic power

5.Motor power: 22KW (host) + 4KW (conveyor optional)

6.Pump Model : YCY14-1B-80 rated capacity: 80ml/r pressure rating: 31.5MPa

7.Hydraulic oil: 46# anti-wear hydraulic oil

8.Inlet size:L1500*W 820mm

9.Packing size: W 1100mm * 900mm * 1500-2000 (adjustable)

10.Packing density :800-1000kg/m3

11.packaging efficiency: 8-10 tons (8-10package) per hour

12.Control system: uses the PLC automatic program control, automatic alarm system length.

13.Binding modes: manual wire with diameter of 2.8/3.2mm 8mm gold rope

Product introduction and use

This machine is used for in normal will waste and similar products with special packaging,extrusion forming ,which packaged with much smaller,achieve thereby reducing transport volume,save freight,for enterprises to increase efficiency.

Product Features

1. PLC control,Touch-screen control, length of bale size adjustable.

2. Floating necking.

3. Fully automati.

4. Between pressure cylinder and press head adopts Spherical strcture connections,has good reliability.The sealing elements will have Long service life.

5. Dispersed cutting blades on feed opening

6. Easy to install,no need of floor foundation.

7. Automatic strapping.

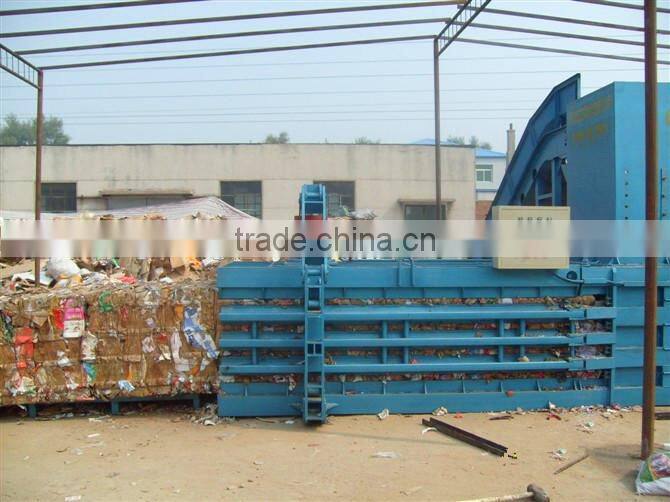

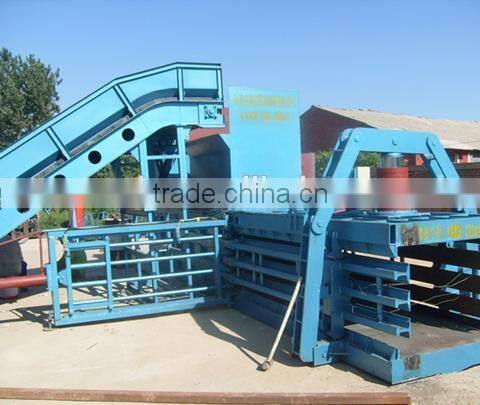

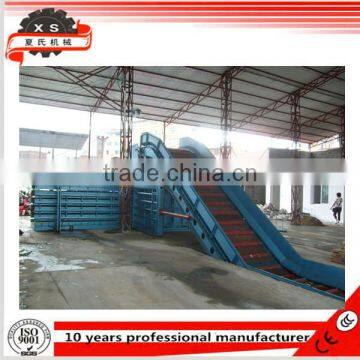

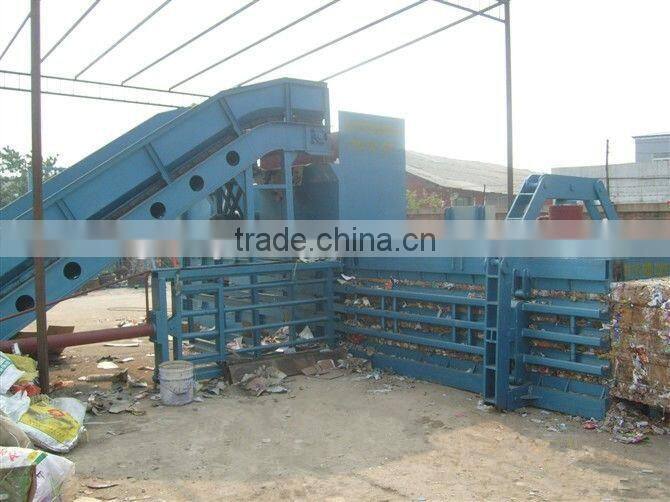

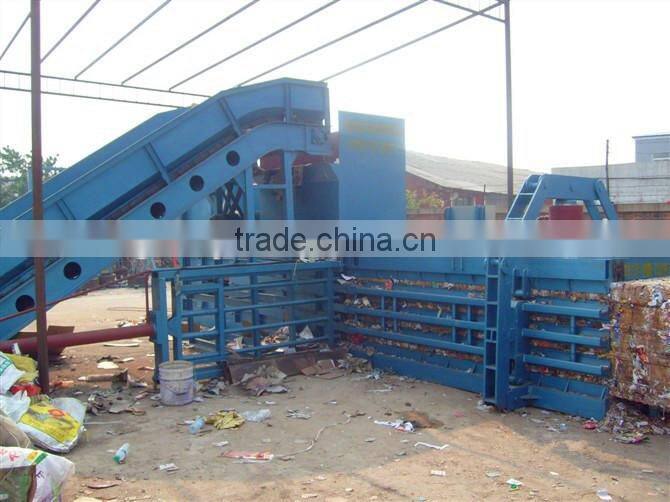

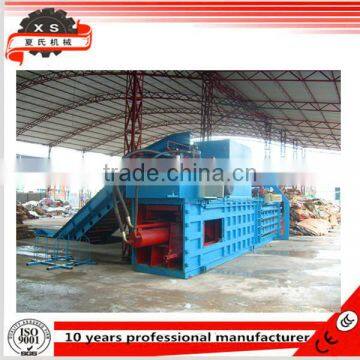

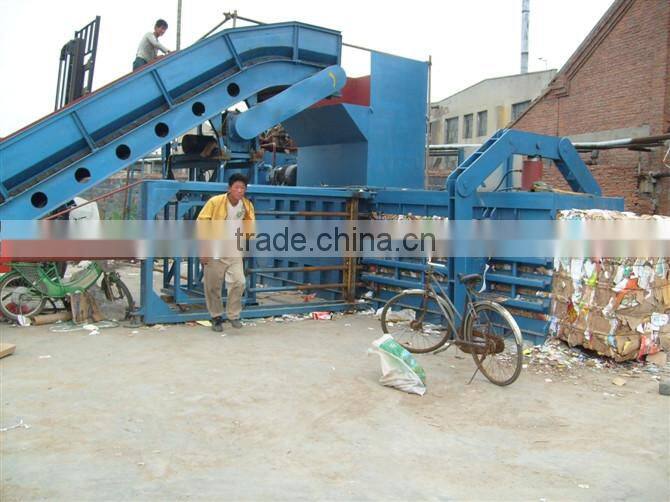

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
