Main Features
1. The materials will be feed through the feeding mouth ,after press and pack with the strings , the bale will be discharged through the discharging way .You can Adjust the numbers of the
lines to pack the bale and the size of the bale .
2.This machine has a widely use, it can pack not only all kinds of straws, or the waste
materials like scrap, sawdust,the rubbish.
3. It is driven by power , but if there is no power ,it can be driven by diesel engine too.
Technical parameter
Model | DK-60T |
Cylinder travel | 180×1200mm |
Fuel tank capacity | 60-80 Kg |
Press plate pressure | 30Psi |
Compression cycle | 60s |
Normal system pressure | 1500 |
safe pressure | 2000 |
Voltage / frequency | 380V/50HZ |
Main motor power | 15KW |
Feed opening size | L1200 ×W750mm |
Bale dimension | L1200×W750×H850MM |
Bale output | 5-6 bag/hour |
Bale weight | About 300KG (1Ton/hour) |
The number of strapping | 4 |
Density | 350Kg / cubic meters |
Machine weight | 1500kg |
Overall dimensions | L1800xW1100xH3200 |
Machine configuration: Gear pumps and Automatic loading
Product use scene graph

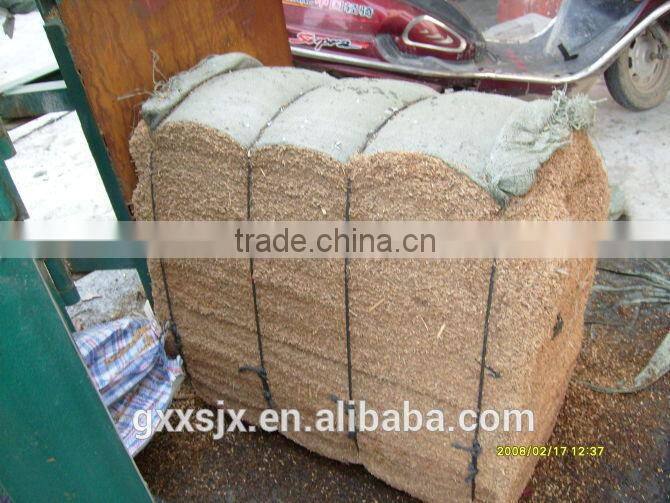

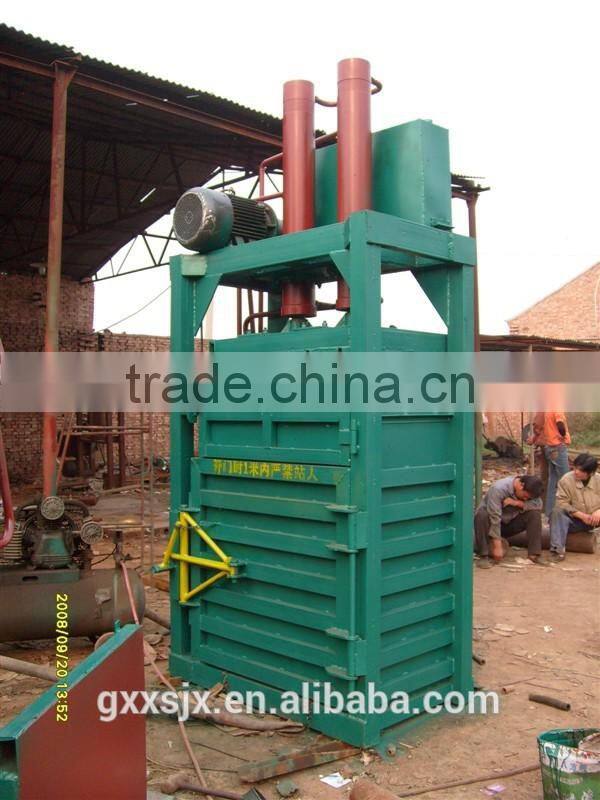

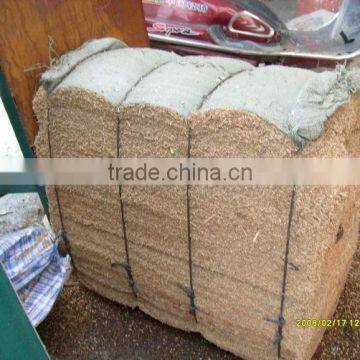

More picture for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
