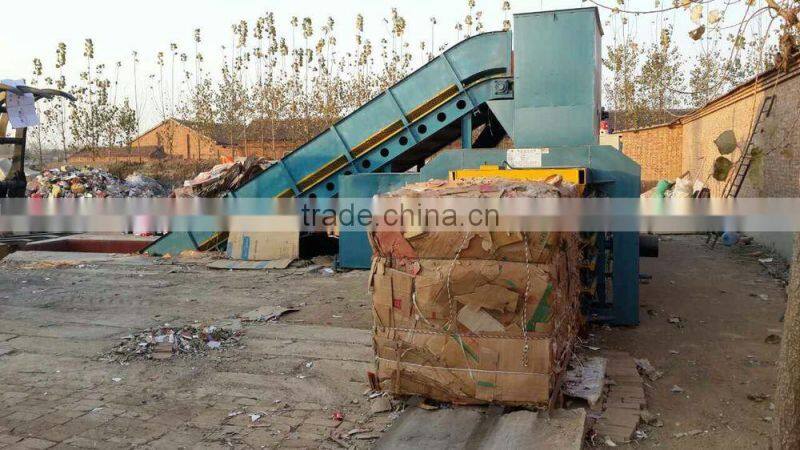

Help CenterHigh Efficiency and Capacity Full-automatic Hydraulic Waste Paper Baler, Cardboard Baling Press Machine YB4-100T
Related Products
-
Industrial Vertical Hydraulic Balers, Plastic Baling Press Machine DY-80TNegotiableMOQ: 1 Set -
Hydraulic Vertical Semi-auto Baler Machine for PET Bottles DBP-100TNegotiableMOQ: 1 Set
-
Hydraulic Vertical Baler Machine for Linen, Wool , Shredded Coconut XSYS-200TNegotiableMOQ: 1 Set
-
Hydraulic Fully Automatic Horizontal Baler,hay and Straw Baling Press Machine XSQ-80NegotiableMOQ: 1 Set
-
Q43-2000type Automatic PLC Control Alligator Shear for Recycling IndustryNegotiableMOQ: 1 Set
Horizontal waste paper and carton baler
This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is
designed as horizontal structure, hydraulic transmission, electrical control. Usually the pressure
force of this series is from 50 ton to 125 ton, the efficiency is higher than the vertical structure. Also, we can produce the machine as manual binding or automatic binding according to the
requirement.
Features
- PLC controlled, combined with touch screen $ visible window, real-time diagram of movements & alarm. Size of bale can be set on touch screen.
- Design of floating neck movable on 3 sides (left, right & up), good for distribution of pressure on 4 sides, suitable for baling of different materials.
- Automatic belting to increase speed of baling.
- Spherical connection between pushing cylinder & ram to ensure reliability & life of seals in cylinder.
- Dispersed cutting blades used on feeding opening to ensure high efficiency.
- Design of low-noise hydraulic circuit with high efficiency & low trouble rate.
Main specification
Type | Parameter | |||||
1 | hydro-cylinder | Model | 250/190*1800 | Travel | 2400 | |
|
| Nominal Force | 1500KN | Number | 1 | |
2 | Hydraulic system working pressure | 15Mpa | ||||
3 | Feeding open size | 2000*1000mm | ||||
4 | Bale dimensions | 1100*1250*1200-2000 | ||||
5 | Bale weight | 800-1500kg | ||||
6 | Motor power | 30KW | ||||
7 | Voltage | 380v50HZ | ||||
8 | packaging line | 4 | ||||
9 | operate mode | full-automation | ||||
10 | Conveyor belts Dimensions | 2000*12000mm | ||||
11 | production efficiency | 8-10 bag/hour | ||||
12 | electric motor | 30kw | ||||
13 | hydraulic pump | ram pump | 160HYCY14-1B | |||
|
| vane pump | PV2R13-31-125 | |||
15 | Machine weight /Conveyor weight | About 14000kg /3500kg | ||||
16 | Overall dimensions(L*W*H) | 8000*1400*3500mm | ||||

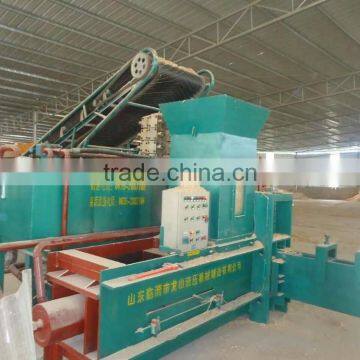

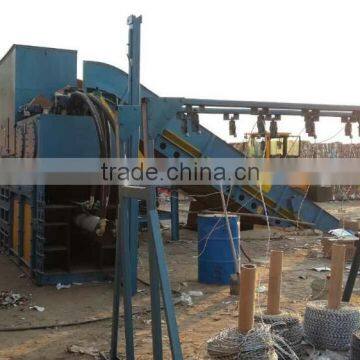

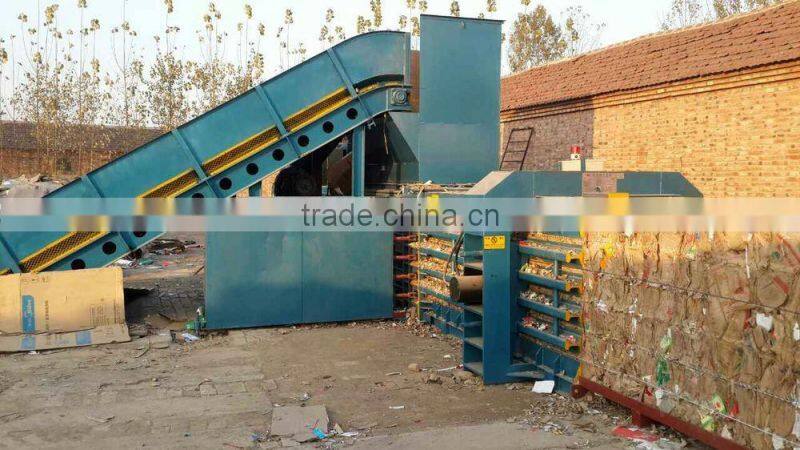

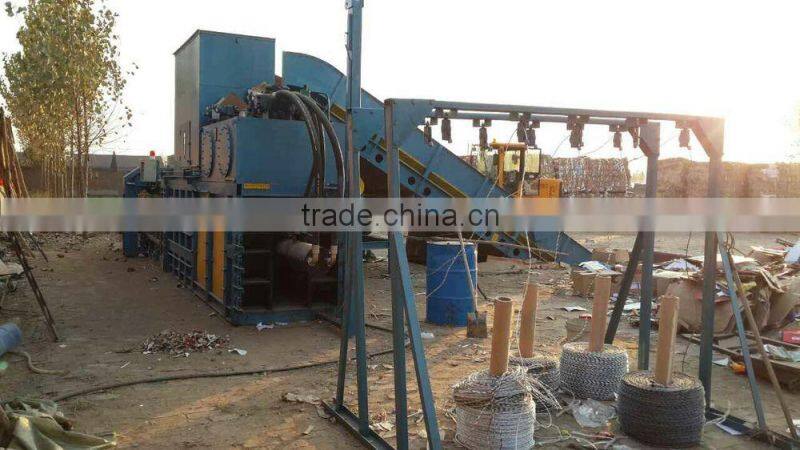

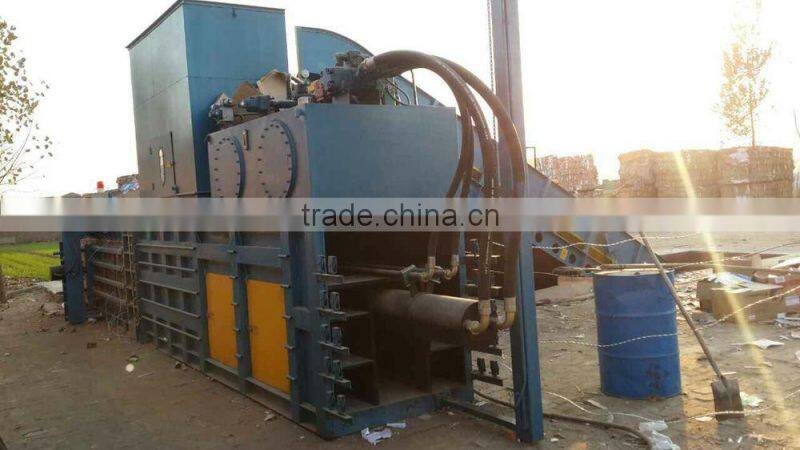

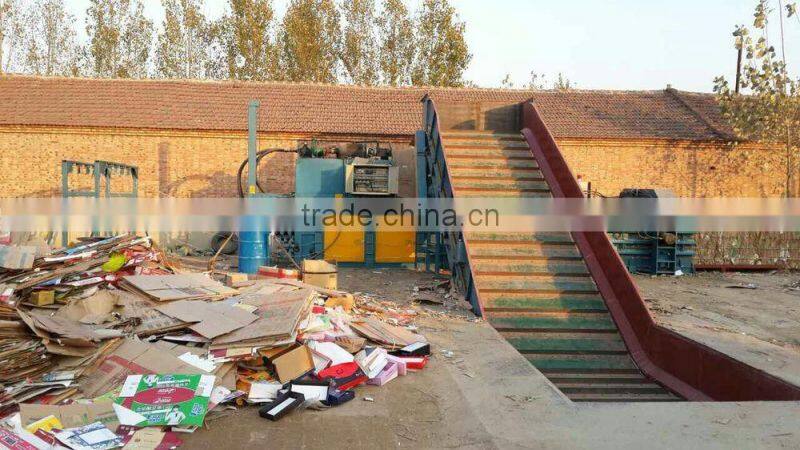

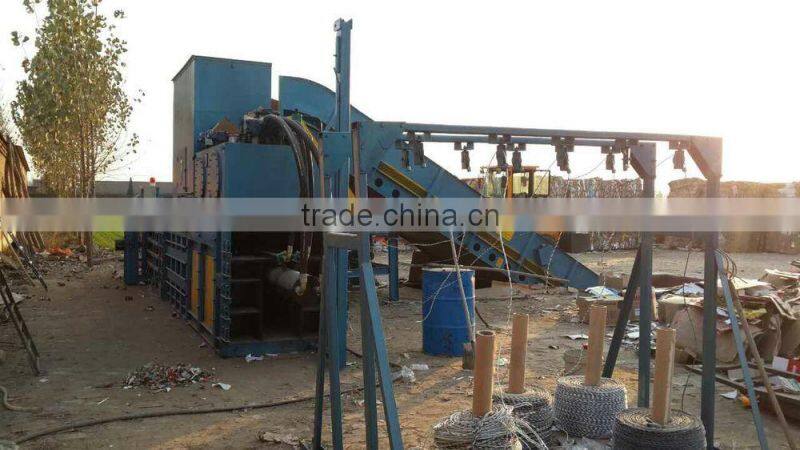

Detailed pictures for your reference
If you hav e any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
