DB-10T Vertical Hydraulic Baler for Waste Paper , Plastic, Cartoon,straw,hay Packing
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
Sheaf-binding Reaping Machine ST50*80
-
Hydraulic Hay Baler Machine,cardboard Baling Press Machine HD-30T
-
Y83-5000 Hydraulic Copper Scrap Briquetting Machinery With Low Consumption
-
Automatic Horizontal Hydraulic Baler,cardboard Baling Press Machine XS4-125T
-
Industrial Vertical Hydraulic Balers,cardboard Baling Press Machine,hydraulic Cotton Bale Press Machine DY-80T
-
DA-100T Vertical Hydraulic Semi-automatic Waste Paper Baler
Product Details
| Type | Square Baler | Operating Speed | 4-6 bag /hour | |
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | XiaShi | Model Number | DB-10T | |
| Application | Cotton, straw, straw, clothing | Dimension(L*W*H) | 2900*1100*1600mm | |
| Weight | 700 kg | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Details
1.Mainly applicable to small farming factory, feed processing plants after crushing corn
stalks, alfalfa, etc.
2,The hydraulic configuration: low noise hydraulic circuit system, using imported and domestic
highquality components combination, both to ensure quality and reduce the cost,so performance
and stability of the machine
3,Simple structure, low failure rate, repairs is simple and fast.
4,Easy installation, no need to reinforce the foundation treatment.
5,Feeding method: manually feeding.
Technical parameters
Model | DB-10T |
Voltage / frequency | 380V/50HZ |
Main motor | 7.5KW |
Bale dimensions(L*W*H) | 800×400×600mm |
output | 4-6bag/hour |
Bale weight | 80KG |
Cylinder travel | 1000mm |
Machine weight | 700KG |
Overall dimensions(L*W*H) | 2900×1100×1600 |
Model | DB-10T | DB-20T | DB-30T |
Press | 10T | 20T | 30T |
Motor | 7.5kw | 11kw | 13kw |
Packing dimension | 800x400x600mm | 1000x500x800mm | 1000x500x800mm |
weight | 800kg | 1300kg | 1500kg |

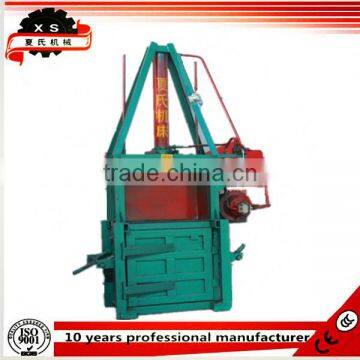

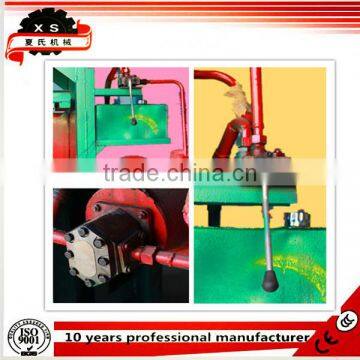

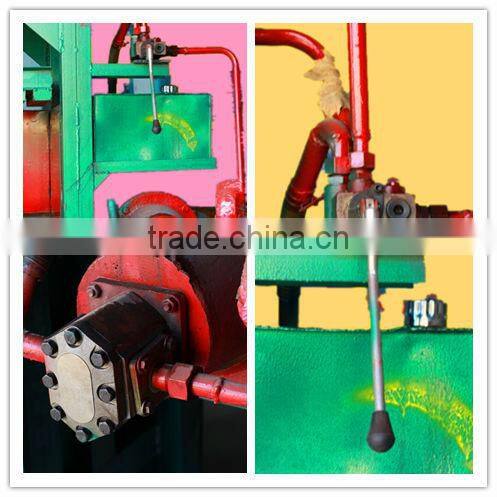

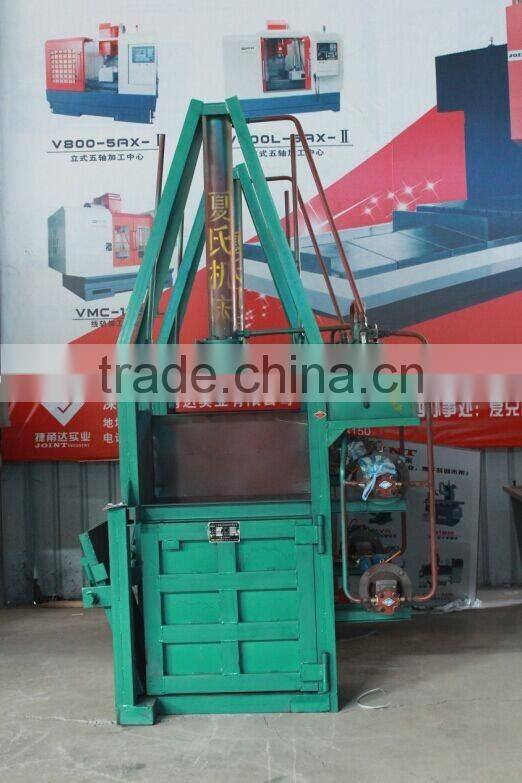

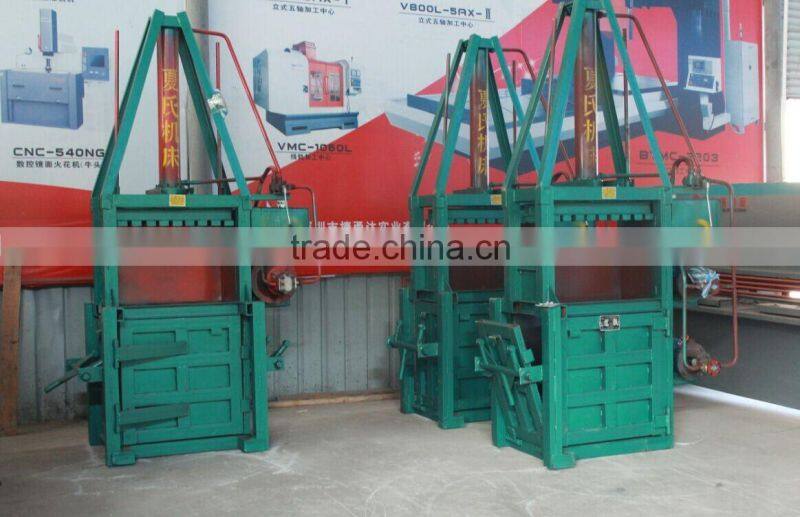

Detailed pictures for your reference
More pictures
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
