Y83-5000 hydraulic Copper scrap briquetting machinery with low consumption
- 30 Set / Sets per Month
- shenzhen
- T/T D/P D/A Credit Card
- advanced design easy operation mushroom slice cutting machine
- advanced design easy operation shitake slicer machine
- advanced design easy operation spiral vegetable slicer
- advanced design easy operation automatic vegetable mushroom slicer
- advanced design easy operation multifunctional vegetable cutter
- advanced design easy operation vegetable slicer/mushroom slicer
Product Details
Condition: | New | Brand Name: | Xiashi | Model Number: | Y83-5000 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Application
Y83 series of scrap metal pressure hydraulic press, suitable for aluminium alloy profile factory, cast steel, cast aluminum, cast copper factory, aluminum scrap, steel scrap, scrap iron, copper scrap, briquetting and recycled, instead of scrap steel, pig iron, aluminum ingots, copper scrap as raw materials, can reduce the loss. This equipment can be crumbs of cast iron, steel scrap, copper scrap, aluminum scrap, such as direct cold pressing into 3 ~ 6 kg of cylindrical cake pieces, in order to facilitate transport, cast furnace, the whole process without heating, additives, or other processes. Cast iron after suppressing density can be up to 5 ~ 6 t/m3.
Features
1..The hydraulic pressure drive, work smoothly, no vibration.
2. The infrastructure is simple, installation does not need to use foot screws.
3. PLC control, the user can choose manual or automatic operation.
4. According to user requirements can increase the automatic feeding mechanism.
Techical Parameters for your reference
Parameter name | Unit | Model | |||
|
| Master cylinder | Accelerating cylinder | Pushing block cylinder | Feeding cylinder |
Norminal force | KN | 5000 | 245 | 400 | 50 |
Inside diameter of cylinder | mm | 450 | 125 | 160 | 80 |
Diameter of piston rod | mm | 220 | 70 | 80 | 45 |
Working pressure | Mpa | 20 | 20 | 20 | 10 |
electric motor | 1set | Y250M-6 37KW | |||
oil pump | 1set | 160MCY14-1B | |||
Briquette density | ≥5T/m3 | ||||
work efficiency | 3-4 blocks / min (block weight 5.5 ~ 7kg) | ||||
Output per shift | 10-12T / shift (cast iron scrap) | ||||
Briquette size | Φ120mm | ||||
Cooling type | Water cooling | ||||
Operation | manual/PLC | ||||
Overall dimensions(mm) | Main machine:2500×1000×3500 Oil box:2200×1400×1800 |

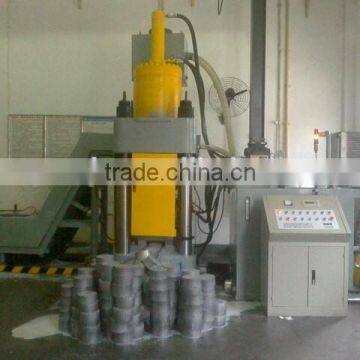

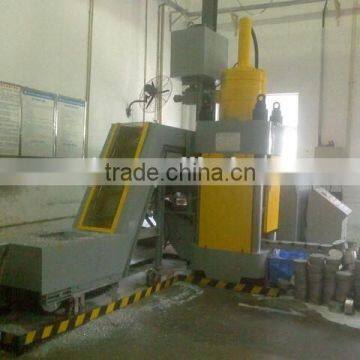

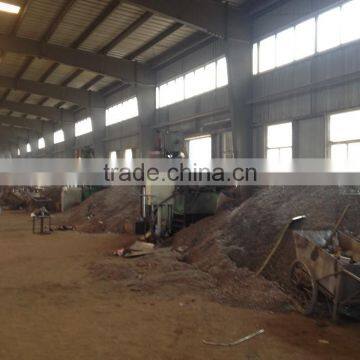

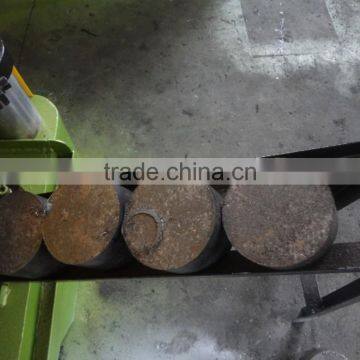

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
