UPVC Single Union Bottom Valves DIN PN10/union Bottom Valves
Negotiable
MOQ: 5 Cartons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Plastic, UPVC
Type:
Other, Valves
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UPVC Swinging Bottom Valves DIN PN10/DIN PN10 Bottom ValvesNegotiableMOQ: 5 Cartons -
UPVC/ CPVC Flanged Single Union Foot Valves DIN/single ValveNegotiableMOQ: 5 Cartons
-
UPVC/ CPVC Flanged Single Union Foot Valves JIS/JIS Single Foot ValvesNegotiableMOQ: 5 Cartons
-
UPVC/CPVC Flanged True Union Foot Valves ANSI/water Foot ValveNegotiableMOQ: 5 Cartons
-
UPVC / CPVC Flanged True Union Foot Valves JIS/ Flanged Foot ValvesNegotiableMOQ: 5 Cartons
Material
Other, Plastic, UPVC
Type
Other, Valves
Place of Origin
Zhejiang, China
Model Number
DIN
Brand Name
TU
Specifications
Name: UPVC Single union bottom valves DIN PN10Material: UPVC
Standard: DIN
Size: 15~50

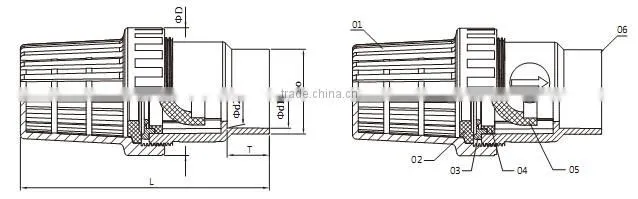

| NO. | Name | Quantity |
| 1 | Mesh enclosure | 1 |
| 2 | Washer | 1 |
| 3 | Rubber ring | 1 |
| 4 | Locating ring | 1 |
| 5 | Valve core | 1 |
| 6 | Valve body | 1 |
| Size | Overall Dimensions(mm) | Work pressure | The minimum opening pressure | |||||
| DN(de) | d0 | d1 | d2 | T | D | L | kg/cm2 | kg/cm2 |
| 15(20) | 27.9 | 20.3 | 19.96 | 16.5 | 47 | 113 | 10 | 0.15~0.3 |
| 20(25) | 32.5 | 25.3 | 24.95 | 19 | 53.9 | 132.4 | 10 | 0.15~0.3 |
| 25(32) | 40.3 | 32.3 | 31.9 | 22.5 | 67 | 145.7 | 10 | 0.15~0.3 |
| 32(40) | 49.3 | 40.35 | 39.9 | 26.5 | 78.5 | 177.4 | 10 | 0.15~0.3 |
| 40(50) | 61.6 | 50.35 | 49.9 | 31.5 | 93 | 201.6 | 10 | 0.15~0.3 |
| 50(63) | 74 | 63.4 | 62.9 | 36.7 | 110.6 | 215.8 | 10 | 0.15~0.3 |
