UPVC / CPVC Flanged True Union Foot Valves JIS/ Flanged Foot Valves
Specifications
Name: UPVC / CPVC Flanged true union foot valves JISMaterial: UPVC/ CPVC
Standard: JIS
Size : 1/2"~2"

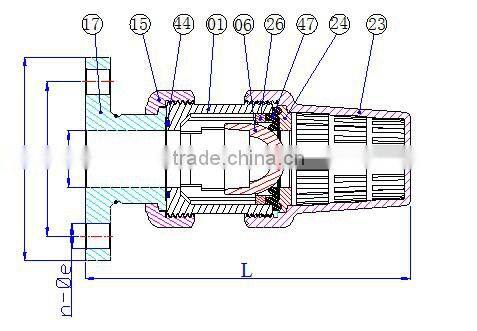

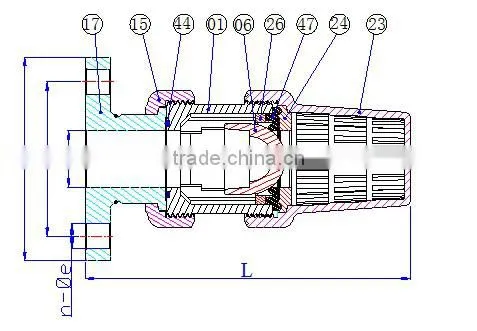

ITEM | PAPT | MATERIAL | QTY |
| 01 | BODY | PVC/CPVC | 1 |
| 06 | BALL | PVC/CPVC | 1 |
| 15 | UNION NUT | PVC/CPVC | 1 |
| 17 | FLANG | PVC/CPVC | 1 |
| 23 | BONNET | PVC/CPVC | 1 |
| 24 | PAD | PVC/CPVC | 1 |
| 26 | BRACKET | PVC/CPVC | 1 |
| 44 | ORING | EPDM/VITON | 1 |
| 47 | SEAL | EPDM/VITON | 1 |
| SIZE | d | D | C | L | n-φe |
| 1/2"(15) | 15 | 95.00 | 70.00 | 132.00 | 4~15 |
| 3/4"(20) | 20 | 105.00 | 75.00 | 162.50 | 4~15 |
| 1"(25) | 25 | 125.00 | 90.00 | 175.50 | 4~19 |
| 11/4"(32) | 32 | 140.00 | 100.00 | 207.00 | 4~19 |
| 11/2"(40) | 40 | 150.00 | 105.00 | 233.50 | 4~19 |
| 2"(50) | 50 | 165.00 | 120.00 | 270.00 | 4~19 |
UPVC/CPVC Flanged true union foot valves JIS advantages:
1. New CUP shape ball can stop water by just 0.5kg pressure
2. Materials meet drinking water standard
3. 100% pure virgin material, CaCO3 free (Chalk)
4. UV resistant powder added
5. Can be assembled vertically or horizontally
UPVC/CPVC Flanged true union foot valves JIS description:
1. Material: PVC, CPVC
2. Size: 1/2'' - 6''; 20mm - 160mm ; DN15 - DN150
3. Standard: ANSI, DIN, JIS, CNS
4. Joint End: Socket or Threaded(NPT,PT,BSPF)
5. Working Pressure: 150 PSI
6. Operating Temperature: PVC(0~55°C); CPVC(0~95°C)
7. Valve body color : PVC(dark gray/white), CPVC(light gray)
