Home > Construction & Decoration > Pipe Fittings > Tee > UPVC Swinging Bottom Valves DIN PN10/DIN PN10 Bottom Valves
Negotiable
MOQ: 5 Cartons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Plastic, UPVC
Type:
Other, Valves
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UPVC/ CPVC Flanged Single Union Foot Valves DIN/single ValveNegotiableMOQ: 5 Cartons -
UPVC/ CPVC Flanged Single Union Foot Valves JIS/JIS Single Foot ValvesNegotiableMOQ: 5 Cartons
-
UPVC/CPVC Flanged True Union Foot Valves ANSI/water Foot ValveNegotiableMOQ: 5 Cartons
-
UPVC / CPVC Flanged True Union Foot Valves JIS/ Flanged Foot ValvesNegotiableMOQ: 5 Cartons
-
UPVC/CPVC Foot Valves ANSI/ANSI Foot ValveNegotiableMOQ: 5 Cartons
Material
Other, Plastic, UPVC
Type
Other, Valves
Place of Origin
Zhejiang, China
Model Number
ANSI
Brand Name
TU
Specifications
Name: UPVC Swinging bottom valves DIN PN10Material: UPVC
Standard: DIN
Size: 65~150
| NO. | Name | Quantity | Materical |
| 1 | Leakage of body | 1 | PVC-U |
| 2 | Vavle body | 1 | PVC-U |
| 3 | Rubber ring | 1 | EPDM/FPM |
| 4 | Live board | 1 | PVC-U |
| 5 | Fixed pin | 1 | Stainless steel |
| 6 | O-ring | 1 | EPDM/FPM |
| 7 | Valve deck | 1 | PVC-U |
| 8 | Bolt and nut | 8 and 12 | Stainless steel |

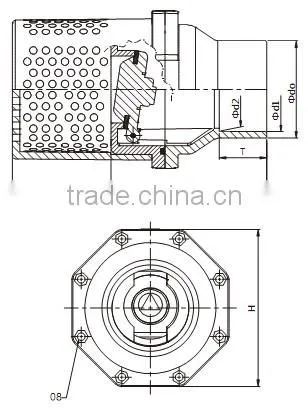

| Size | Overall Dimensions(mm) | Working pressure | The minimum opening pressure | ||||||
| DN(de) | d0 | d1 | d2 | T | L1 | L | H | kg/cm2 | kg/cm2 |
| 65(75) | 88.2 | 75.4 | 74.9 | 43.7 | 207.1 | 266 | 169 | 6 | 0.15~0.3 |
| 80(90) | 104.6 | 90.5 | 89.9 | 51.2 | 218.7 | 273.5 | 169 | 6 | 0.15~0.3 |
| 100(110) | 125.4 | 110.6 | 109.9 | 61.2 | 268 | 379 | 206 | 6 | 0.15~0.3 |
| de125 | 145.5 | 125.7 | 124.9 | 68.7 | 283 | 386.5 | 206 | 6 | 0.15~0.3 |
| 125(140) | 164 | 140.75 | 139.9 | 76.3 | 369.3 | 496.3 | 285 | 6 | 0.15~0.3 |
| 150(160) | 186 | 160.8 | 159.9 | 87 | 390 | 505.8 | 285 | 6 | 0.15~0.3 |
