UPVC/ CPVC Flanged single union foot valves ANSI/dark gray foot valve
Negotiable
/ Carton
5 Cartons(Min.Order)
- 0 per Month
- Shanghai/Ningbo
- T/T
You May Like
-
UPVC Spring Foot Valves JIS ANSI DIN/UPVC Spring Foot Valves
-
Industrial CPVC Bottom valves JIS/CPVC Bottom valves
-
UPVC Single union bottom valves DIN PN10/union bottom valves
-
UPVC Swinging bottom valves DIN PN10/DIN PN10 bottom valves
-
UPVC/ CPVC Flanged single union foot valves DIN/single valve
-
UPVC/ CPVC Flanged single union foot valves JIS/JIS single foot valves
Product Details
| Material | Other, Plastic, UPVC/CPVC | Type | Other, Valves | |
| Place of Origin | Zhejiang, China | Model Number | JIS | |
| Brand Name | TU |
Product Description
Specifications
Name: UPVC/ CPVC Flanged single union foot valves ANSIMaterial:UPVC/ CPVC
Standard: ANSI
Size : 1/2''~2"

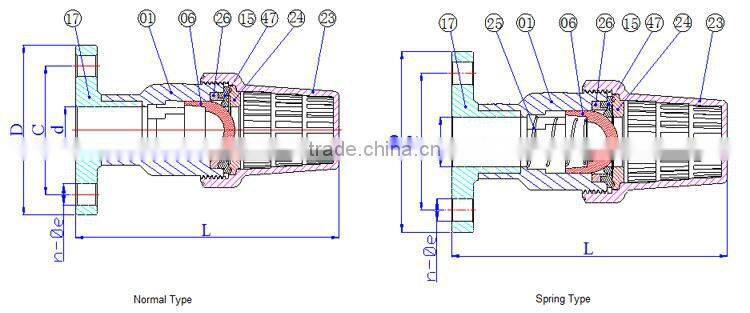

| ITEM | PAPT | MATERIAL | QTY | ITEM | PAPT | MATERIAL | QTY | |
| 01 | BODY | PVC/CPVC | 1 | 01 | BODY | PVC/CPVC | 1 | |
| 06 | BALL | PVC/CPVC | 1 | 06 | BALL | PVC/CPVC | 1 | |
| 15 | UNION NUT | PVC/CPVC | 1 | 15 | UNION NUT | PVC/CPVC | 1 | |
| 17 | UNION END | PVC/CPVC | 1 | 17 | UNION END | PVC/CPVC | 1 | |
| 23 | BONNET | PVC/CPVC | 1 | 23 | BONNET | PVC/CPVC | 1 | |
| 24 | PAD | PVC/CPVC | 1 | 24 | PAD | PVC/CPVC | 1 | |
| 26 | BRACKET | PVC/CPVC | 1 | 25 | SPRING | SS 304 | 1 | |
| 47 | SEAL | EPDM/VITON | 1 | 26 | BRACKET | PVC/CPVC | 1 | |
| 47 | SEAL | EPDM/VITON | 1 |
| SIZE | d | C | D | L | n-φe |
| 1/2"(15) | 15 | 60.5 | 95 | 126.4 | 4~15 |
| 3/4"(20) | 20 | 70 | 105 | 155 | 4~15 |
| 1"(25) | 25 | 79.2 | 125 | 172 | 4~19 |
| 11/4"(32) | 32 | 89 | 140 | 201.5 | 4~19 |
| 11/2"(40) | 40 | 98 | 150 | 226 | 4~19 |
| 2"(50) | 50 | 121 | 165 | 263 | 4~19 |
UPVC/CPVC Flanged single union foot valves ANSI advantages:
1. New CUP shape ball can stop water by just 0.5kg pressure
2. Materials meet drinking water standard
3. 100% pure virgin material, CaCO3 free (Chalk)
4. UV resistant powder added
5. Can be assembled vertically or horizontally
UPVC/CPVC Flanged single union foot valves ANSI description:
1. Material: PVC, CPVC
2. Size: 1/2'' - 6''; 20mm - 160mm ; DN15 - DN150
3. Standard: ANSI, DIN, JIS, CNS
4. Joint End: Socket or Threaded(NPT,PT,BSPF)
5. Working Pressure: 150 PSI
6. Operating Temperature: PVC(0~55°C); CPVC(0~95°C)
7. Valve body color : PVC(dark gray/white), CPVC(light gray)
