HEIGHT Miniature Relays-Mini PCB Relays JQC-3F(T73)
US$ 1 - 5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Height, HEIGHT
Model Number:
JQC-3F(T73) PCB relay, JQC-3F(T73)
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HEIGHTMiniature Relays-Mini PCB Relays JQX-14FCUS$ 1 - 5MOQ: 100 Pieces -
HEIGHT Miniature Relays-Mini PCB Relays JQX-15F(T90)US$ 1 - 5MOQ: 100 Pieces
-
SOLID STATE RELAY (QW-F)US$ 1 - 10MOQ: 1000 Pieces
-
SOLID STATE RELAY (QW-E)US$ 1 - 10MOQ: 1000 Pieces
-
SOLID STATE RELAY (QW-D)US$ 1 - 10MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Height, HEIGHT
Model Number
JQC-3F(T73) PCB relay, JQC-3F(T73)
Theory
Electromagnetic Relay
Usage
PCB
Size
Miniature
Protect Feature
Sealed
Contact Load
Low Power
HEIGHT
--------------------------------------------------------
Miniature Relays-Mini PCB Relays JQC-3F(T73)
--------------------------------------------------------

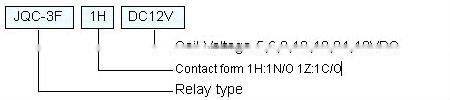

JQC-3F :Relay type
1H:Contact form 1H:1N/O 1Z:1C/O
DC12V:Coil voltage:5,6,9,12,18,24,48VDC
Contact data
| Contact Ratings | 1H / 1Z | |
| Contact Resistance | 50mΩ (1A 6VDC) / 50mΩ (1A 6VDC) | |
| Contact capacity | 5A 240VAC / 30VDC | |
Specification
| Insulation Resistance | 100MΩ | |
| Dielectric Strength | BCC 1500Vrms | |
| BOC 750Vrms | ||
| Operate Time | 10ms /≤5ms | |
| Terminal Type | PCB | |
Coil data
| Nominal Voltage VDC | Pull-in Voltage VDC |
Release Voltage VDC |
Coil ResistanceΩ:±10% | |||||||
| 3 | 2.40 | 0.3 | 25 | |||||||
| 5 | 4.00 | 0.5 | 70 | |||||||
| 6 | 4.80 | 0.6 | 100 | |||||||
| 9 | 7.20 | 0.9 | 225 | |||||||
| 12 | 9.60 | 1.2 | 400 | |||||||
| 18 | 14.4 | 1.8 | 900 | |||||||
| 24 | 19.2 | 2.4 | 1600 | |||||||
| 48 | 38.4 | 4.8 | 4500 | |||||||

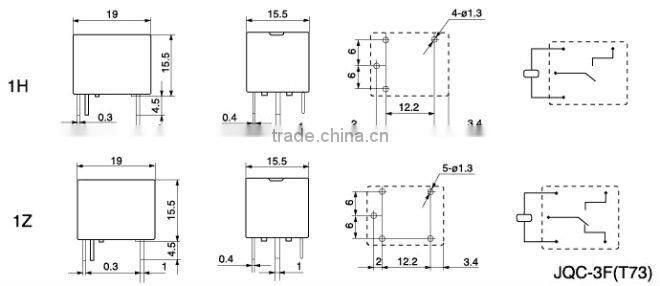

Outline Dimensions And Wiring Diagram

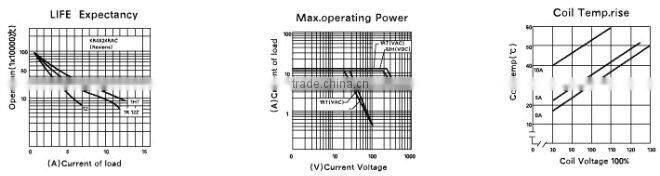

Characteristic Curves
