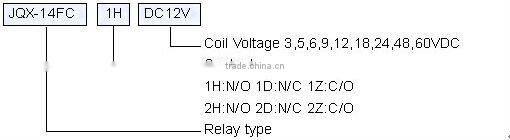

Miniature Relays-Mini PCB Relays JQX-14FC
--------------------------------------------------------
Contact Data
| Contact Ratings | 1H / 1Z | 2H / 2Z | ||
| Contact Resistance | 50mΩ (1A 6VDC) | |||
| Contact capacity | 10A 240VAC/24VCD | 5A 240VAC/30VDC | ||
| TV-5 | ||||
Chara Cteristics
| Insulation Resistance | 1000MΩ | |
| Dielectric Strength | Between coil and contacts 4000VAC 1minute | |
| Between open contacts 1000VAC 1minute | ||
| Operate /Release Time | 15ms / 5ms | |
| Terminal Type | PCB | |
Coil Power
| Nominal Coil Power | 0.55W |
Coil Data
| Nominal Voltage VDC | Pull-in Voltage VDC | Release Voltage VDC | Coil ResistanceΩ:±10% | |
| 3 | 2.25 | 0.3 | 20 | |
| 5 | 3.75 | 0.5 | 50 | |
| 6 | 4.50 | 0.6 | 68 | |
| 9 | 6.75 | 0.9 | 160 | |
| 12 | 9.00 | 1.2 | 270 | |
| 18 | 13.5 | 1.8 | 650 | |
| 24 | 18.0 | 2.4 | 1080 | |
| 48 | 36.0 | 4.8 | 4340 | |
| 60 | 45.0 | 6.0 | 7000 | |

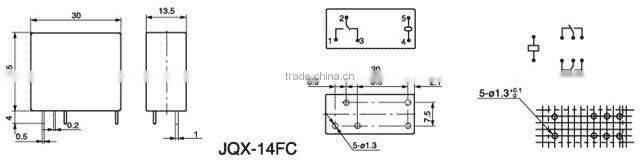

Outline Dimensions And Wiring Diagram
