HEIGHT Miniature Relays-Mini PCB Relays JQX-15F(T90)
US$ 1 - 5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Height, HEIGHT
Model Number:
Miniature Relays-Mini PCB Relays JQX-15F(T90)
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Height, HEIGHT
Model Number
Miniature Relays-Mini PCB Relays JQX-15F(T90)
Theory
Electromagnetic Relay
Usage
PCB
Size
Miniature
Protect Feature
Sealed
Contact Load
Low Power
HEIGHT
--------------------------------------------------------
Miniature Relays-Mini PCB Relays JQX-15F(T90)
--------------------------------------------------------
--------------------------------------------------------
Contact Data
| Contact Form | 1H / 1D | 1Z | |||
| Contact Resistance | 50mΩ (1A 24VDC) | ||||
| Contact capacity | 7200VA/560W | 3600VA/280W | 4800VA/560W | 2400VA/280W | |
Specification
| Insulation Resistance | 1000MΩ | |
| Dielectric Strength | BCC 2500VAC 1minute | |
| BOC 1500VAC 1minute | ||
| Operate Time | 15ms / 10ms | |
| Terminal Type | PCB | |
Coil Power
| Nominal Coil Power | DC:0.9W |
Coil Data
| Nominal Voltage VDC | Pull-in Voltage VDC | Release Voltage VDC | Coil ResistanceΩ:±10% | |||
| 5 | 3.75 | 0.5 | 30 | |||
| 6 | 4.50 | 0.6 | 45 | |||
| 9 | 6.75 | 0.9 | 100 | |||
| 12 | 9.00 | 1.2 | 160 | |||
| 15 | 11.25 | 1.5 | 260 | |||
| 18 | 13.50 | 1.8 | 385 | |||
| 24 | 18.00 | 2.1 | 660 | |||
| 48 | 36.00 | 4.8 | 2560 | |||
| 70 | 52.50 | 7.0 | 5500 | |||
| 110 | 82.50 | 11 | 13450 | |||

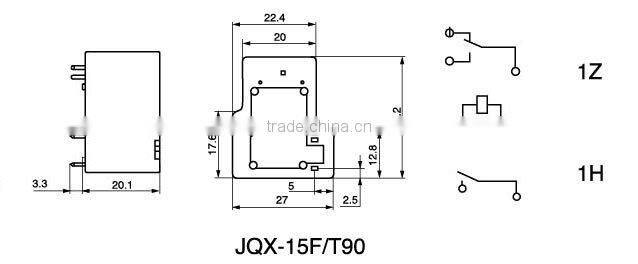

Outline Dimensions And Wiring Diagram

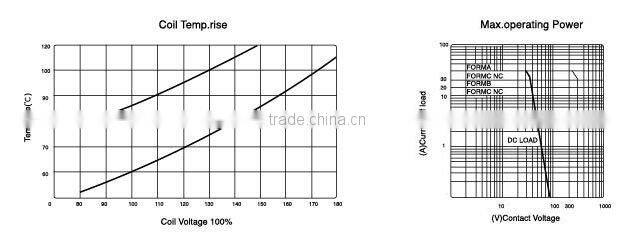

Characteristic Curves
