Home > Electrical & Electronics > Passive Components > Capacitor > CBB60 Aluminum Run Capacitor / CBB60 Air Condition Capacitor / CBB60 Capacitor
CBB60 Aluminum Run Capacitor / CBB60 Air Condition Capacitor / CBB60 Capacitor
US$ 0.5 - 3.5
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Partsnet
Model Number:
NPTC-RARC402
Payment & Shipping
Payment Methods:
Port of Shipment:
Nongbi/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Film Capacitors CBB21 / CBB21 Capacitors / Polypropylene Film Capacitor CBB21US$ 0.01 - 0.6MOQ: 5000 Pieces -
CBB21 Polypropylene Capacitor / Metallized Film Capacitor CBB21 / MPP Capacitor CBB21US$ 0.01 - 0.6MOQ: 10000 Pieces
-
AC Motor Run Capacitor / CBB65 Aluminum CapacitorUS$ 0.5 - 2MOQ: 500 Pieces
-
Air Conditioner Motor Run Capacitor CBB65 250V/370V/440VUS$ 0.9 - 1.5MOQ: 500 Pieces
-
Washing Machine Capacitor, High Quality Washing Machine Capacitor, 4 Wires Washing Machine CapacitorUS$ 2 - 5MOQ: 400 Parcels
Place of Origin
Zhejiang, China
Brand Name
Partsnet
Model Number
NPTC-RARC402
Type
Aluminum Electrolytic Capacitor
Application
Air Conditioner
Package Type
Surface Mount
Capacitance
2uf-100uf
Rated Voltage
370V
Operating Temperature
-25℃~70℃

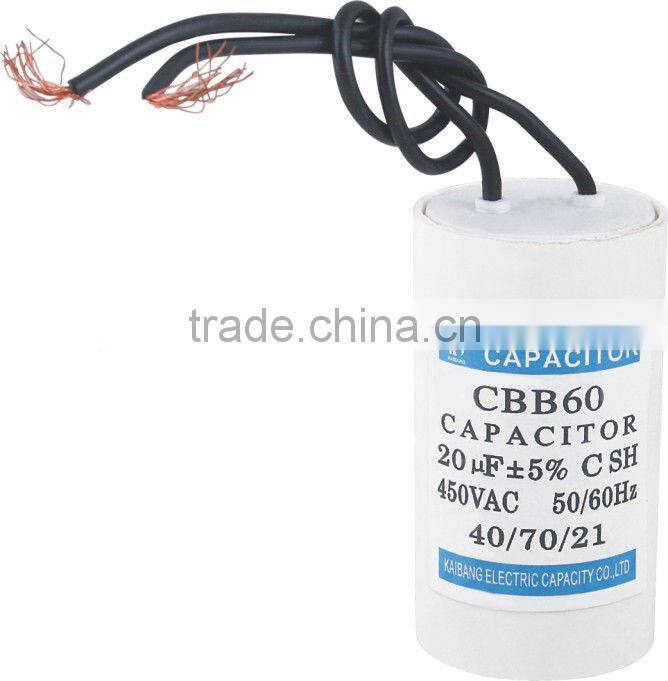

CBB60 aluminum run capacitor / CBB60 air condition capacitor / CBB60 capacitor
Feature
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
Applications
Used widely in washing machine,water pump,air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.
Specifications
Model |
Microfarad | Frequency | Temperature | Voltage | Size(Dia.xheight) |
| NPTC-RARC402 | 2uf | 50/60HZ | -25°C-70°C | 370V | 40x60mm |
| NPTC-RARC403 | 3uf | 50/60HZ | -25°C-70°C | 370V | 40x60mm |
| NPTC-RARC404 | 4uf | 50/60HZ | -25°C-70°C | 370V | 40x60mm |
| NPTC-RARC405 | 5uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC406 | 6uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC407 | 7uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC408 | 7.5uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC409 | 8uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC410 | 9uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC411 | 10uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC412 | 11uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC413 | 12uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC414 | 14uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC415 | 15uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC416 | 16uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC417 | 17.5uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC418 | 18uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC419 | 20uf | 50/60HZ | -25°C-70°C | 370V | 40x70mm |
| NPTC-RARC420 | 25uf | 50/60HZ | -25°C-70°C | 370V | 45 x 90mm |
| NPTC-RARC421 | 30uf | 50/60HZ | -25°C-70°C | 370V | 45 x 90mm |
| NPTC-RARC422 | 33uf | 50/60HZ | -25°C-70°C | 370V | 45 x 90mm |
| NPTC-RARC423 | 35uf | 50/60HZ | -25°C-70°C | 370V | 45 x 90mm |
| NPTC-RARC424 | 40uf | 50/60HZ | -25°C-70°C | 370V | 50 x 100mm |
| NPTC-RARC425 | 45uf | 50/60HZ | -25°C-70°C | 370V | 50 x 100mm |
| NPTC-RARC426 | 50uf | 50/60HZ | -25°C-70°C | 370V | 50 x 110mm |
| NPTC-RARC427 | 55uf | 50/60HZ | -25°C-70°C | 370V | 50 x 125mm |
| NPTC-RARC428 | 60uf | 50/60HZ | -25°C-70°C | 370V | 50 x 125mm |
| NPTC-RARC429 | 70uf | 50/60HZ | -25°C-70°C | 370V | 50 x 125mm |
| NPTC-RARC430 | 80uf | 50/60HZ | -25°C-70°C | 370V | 60 x 120mm |
| NPTC-RARC431 | 90uf | 50/60HZ | -25°C-70°C | 370V | 64 x 130mm |
| NPTC-RARC432 | 100uf | 50/60HZ | -25°C-70°C | 370V | 64 x130mm |
Packaging & Delivery
Packaging Detail: Standard Package or as the customer's request
Delivery Detail: Delivery date is 30 days after receiving 30% deposit
Payment
25~35 days after receiving 30% deposit
CBB60 aluminum run capacitor
CBB60 air condition capacitor
CBB60 capacitor
