CBB21 Polypropylene Capacitor / Metallized Film Capacitor CBB21 / MPP Capacitor CBB21
US$ 0.01 - 0.6
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Partsnet
Model Number:
NPTC-CBB21
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Motor Run Capacitor / CBB65 Aluminum CapacitorUS$ 0.5 - 2MOQ: 500 Pieces -
Air Conditioner Motor Run Capacitor CBB65 250V/370V/440VUS$ 0.9 - 1.5MOQ: 500 Pieces
-
Washing Machine Capacitor, High Quality Washing Machine Capacitor, 4 Wires Washing Machine CapacitorUS$ 2 - 5MOQ: 400 Parcels
-
Fan Run Capacitor /DIP Fan Capacitor/PTC CapacitorUS$ 0.1 - 5MOQ: 1000 Pieces
-
Capacitor for A/C and Refrigeration PartsUS$ 0.1 - 5MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Partsnet
Model Number
NPTC-CBB21
Type
Polypropylene Film Capacitor
Application
Other, Fan, Fan regulator
Package Type
Through Hole
Capacitance
0.01-3.3uF
Rated Voltage
250VAC, DC 250V 400V 630V
Operating Temperature
-40℃ ~ +85℃

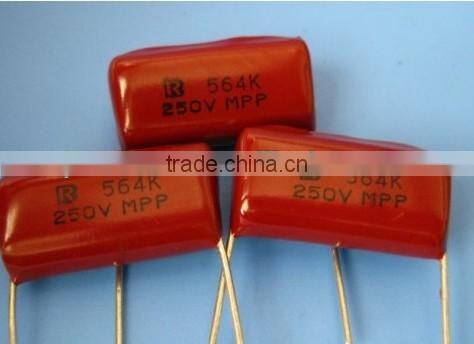

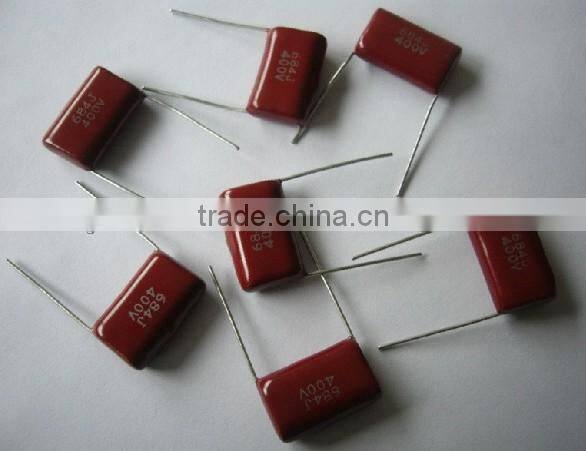

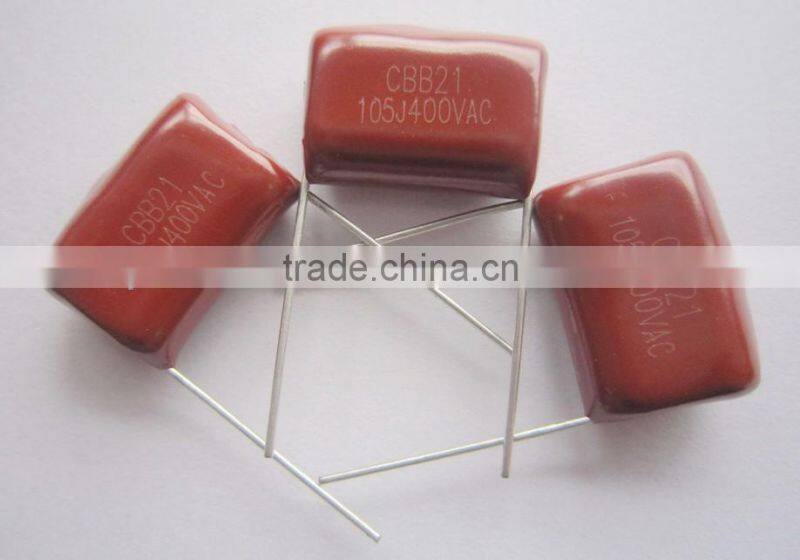

CBB21 polypropylene capacitor / Metallized film capacitor CBB21 / MPP Capacitor CBB21
Product Description
Application
Widely used in high frequency, DC, AC, pulse circuits., and electronic lighter.
Specification
| Dimension(Unit:mm) | |||||||||||||||
| Rated Cap. | 250/275VDC | 400VDC | 630VDC | ||||||||||||
| L | W | H | P | Dia. | L | W | H | P | Dia. | L | W | H | P | Dia. | |
| 0.10uF | 18 | 6.5 | 12.5 | 15 | 0.8 | 18 | 6.5 | 12.5 | 15 | 0.8 | 18 | 6.5 | 12.5 | 15 | 0.8 |
| 0.22uF | 18 | 6.5 | 12.5 | 15 | 0.8 | 18 | 6.5 | 12.5 | 15 | 0.8 | 18 | 9.5 | 15.5 | 15 | 0.8 |
| 0.33uF | 18 | 6.5 | 12.5 | 15 | 0.8 | 18 | 7.5 | 14 | 15 | 0.8 | 23 | 8.5 | 15 | 20 | 0.8 |
| 0.47uF | 23 | 7 | 14.5 | 20 | 0.8 | 23 | 7 | 14.5 | 20 | 0.8 | 23 | 9.5 | 17.5 | 20 | 0.8 |
| 0.68uF | 23 | 8 | 16 | 20 | 0.8 | 23 | 8 | 16 | 20 | 0.8 | 23 | 11.5 | 19 | 20 | 0.8 |
| 0.82uF | 23 | 7 | 14.5 | 20 | 0.8 | 23 | 9 | 16.5 | 20 | 0.8 | 23 | 12.5 | 20 | 20 | 0.8 |
| 1.0uF | 24 | 7.5 | 15.5 | 20 | 0.8 | 24 | 10 | 17.5 | 20 | 0.8 | 24 | 14 | 21.5 | 20 | 0.8 |
| 1.2uF | 24 | 8.5 | 16 | 20 | 0.8 | 24 | 11 | 18.5 | 20 | 0.8 | 29.5 | 13 | 21 | 26 | 0.8 |
| 1.5uF | 24 | 9.5 | 17 | 20 | 0.8 | 24 | 12 | 20 | 20 | 0.8 | 29.5 | 14.5 | 22 | 26 | 0.8 |
| 2.0uF | 24 | 10.5 | 18.5 | 20 | 0.8 | 24 | 14 | 22 | 20 | 0.8 | 29.5 | 17 | 25 | 26 | 0.8 |
| 2.2uF | 24 | 11.5 | 19 | 20 | 0.8 | 29.5 | 12.5 | 20 | 26 | 0.8 | 29.5 | 18 | 25.5 | 26 | 0.8 |
| 2.5uF | 24 | 12 | 20 | 20 | 0.8 | 29.5 | 13 | 21 | 26 | 0.8 | 29.5 | 19 | 27 | 26 | 0.8 |
| 3.0uF | 24 | 13.5 | 21 | 20 | 0.8 | 29.5 | 14.5 | 22 | 26 | 0.8 | 35 | 18.5 | 26.5 | 31 | 0.8 |
| 3.3uF | 24 | 14 | 21.5 | 20 | 0.8 | 29.5 | 15 | 23 | 26 | 0.8 | 35 | 19.5 | 27.5 | 31 | 0.8 |
Feature
Good moisture-resistance
Good self-healing
High insulation
Low dissipation factor
Low temperature–rising
Packaging & Delivery
Packaging Detail: in standard export carton, accroding to customers' request
Delivery Detail: 35 days after receiving order
CBB21 polypropylene capacitor
Metallized film capacitor CBB21
MPP Capacitor CBB21
