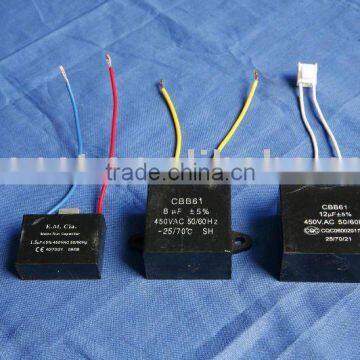

AC Fan Running Capacitor

Specifications

Technique Data of Motor Running Capacitor Climate Type:40/70/21;25/85/21

1.Rated Voltage: 250-660VAC

2.Rated Capacitance: 250VAC:1-120 µ F

                                     450VAC:1-100 µ F

3.Tolerance: ± 5%

4.Testing Voltage:T-T 20. Un 25 no breakdown

                                 T-C 2500VAC 10S no breakdown

5.Insulation Resistance: T-T>= 3000MΩ:uf

                                             T-C>= 1000MΩ

6.Loss Tangent: tg <=0.001(100Hz)

7.Safty Class: PO,P2

ROUND AND SQUARE TYPE ARE AVAILABLE
