Specifications
1. Small and light;2. High insulation resistance, small warm up inside;
3. Low wastage
4. Good capacitance

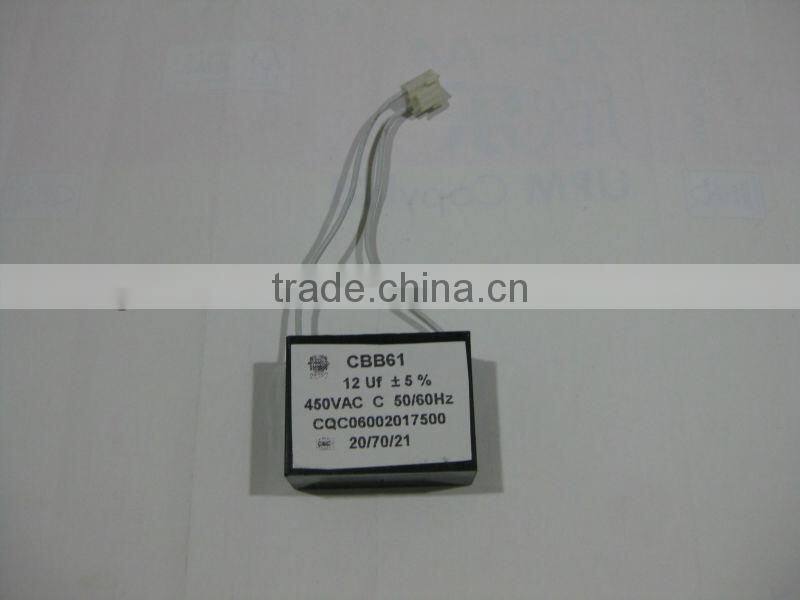

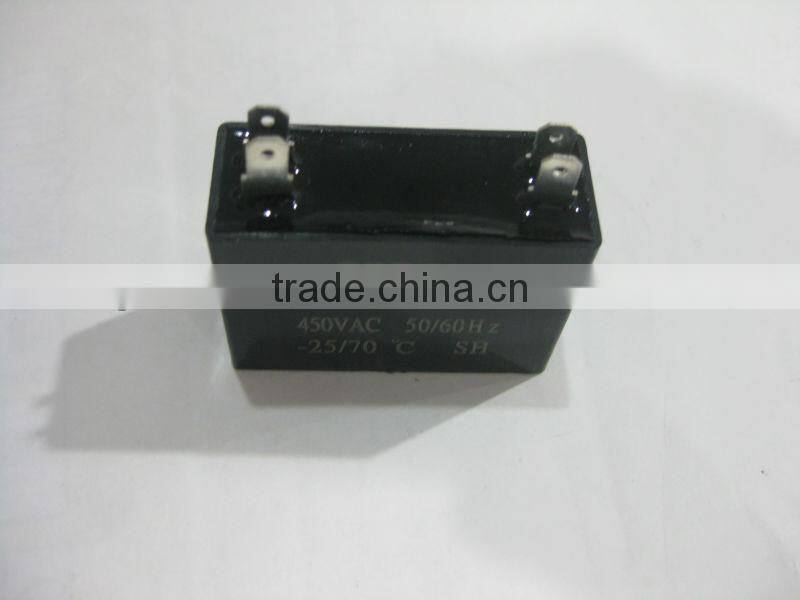

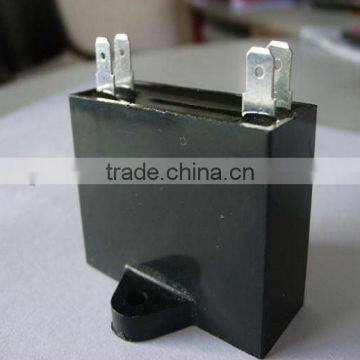

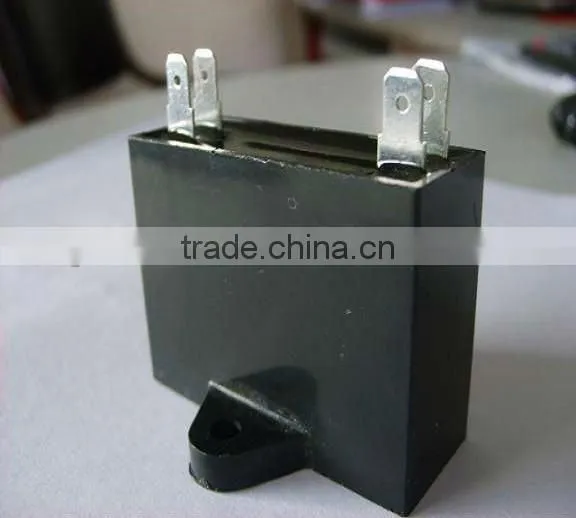

Ceiling Fan Capacitor / AC Fan Capacitor
FEATURES :
1. Small and light;
2. High insulation resistance, small warm up inside;
3. Low wastage, suit for alternating current;
4. Good capacitance stability and self-recovery;
5. Safety and high reliability due to due to flame retardant plastic case enclosed and
flame-retardant epoxy resin filled.
6. CBB61 Metalized Polypropylene Film fan Capacitor, which can be used for the start and
running of 50/60Hz AC (Alternating Current) single-phase asynchronous motors, can be used
for the no-power equalization of lamps to improve the power. It is applicable for fans,
winding machines, industrial sewing machines, pumps and all kinds of lamps, for restricting
the electro-magnetic interference incurred during the on/off mechanical type timer switch.
TECHNICAL DESCRIPTION:
1.Operation Temperature: -40oC~85oC
2.Rated Voltage: 110V.AC~630V.AC
3. Voltage Proof: T-T 2UR/10S T-C 2200V.AC/10S
4. Capacitance Tolerance : ±5%, ±10%
5. Insulation Resistance: T-T≥3000MΩ·μF T-C≥1000 MΩ
6. Dissipation Factor: tgδ≤0.002
7. Capacitance Rang: 0.15 μF~20 μF
8. Dimension: W: 15~77, H:8~40 , T:8~55
PACKAGE AND DELIVERY:
1.Packing Details:1000pcs per carton
2.Delivery Time:25-30days after receive the deposit
