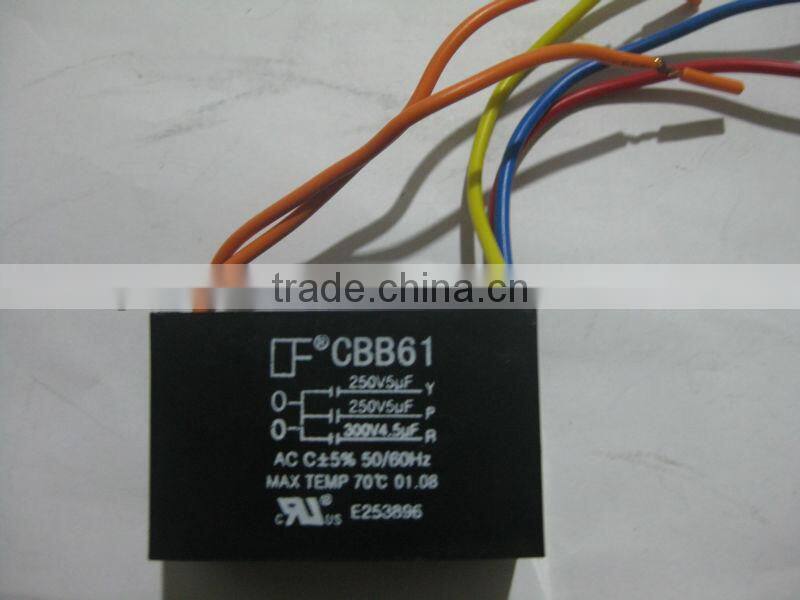

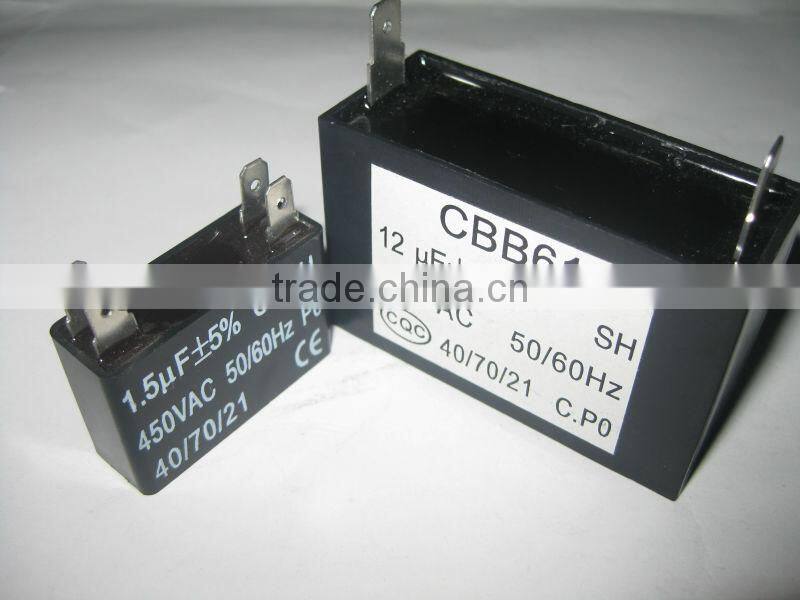

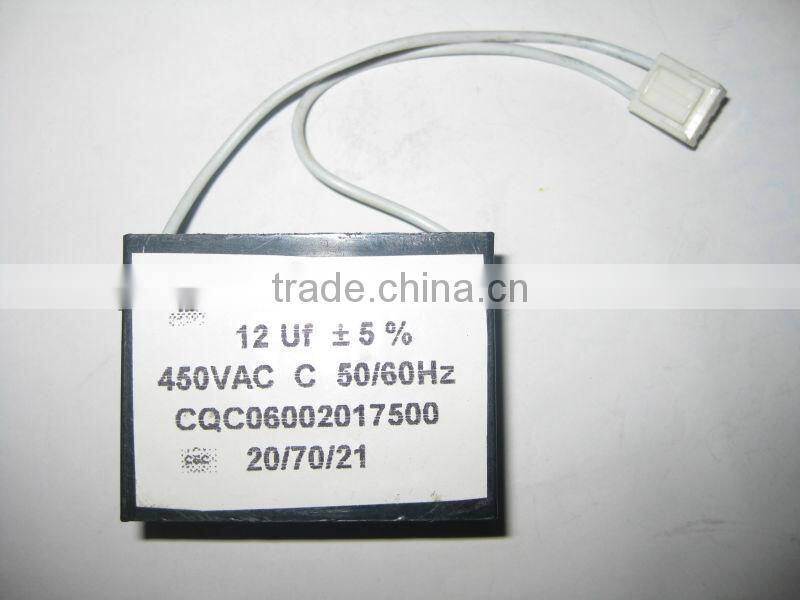

AC ceiling fan capacitor / CBB61 ceiling fan capacitor / Fan run capacitor
Feature
Low dissipation factor
Small inherent temperature rise
Self-healing stability
Safety and high voltage withstand
Long life-span
Applications
To start and run single phase motors in alternating current usage.
It is widely used as the start up and running capacitor that is special for electric appliances
such as electric fanners,ventilators and exhaust fanners
Techinnical Parameters
1.Capacitance range:1 uF~25uF
2.Rated voltage:250~500Vac (50 Hz/60Hz)
3.Capacitance tolerance:±5%,±10%
4.Dissipation factor:≤0.0020(100Hz)
5.Climate category:-25/70/21
6.Testing voltage:T-T:2.0Un,2S non-breakdown
T-C:2000VAC,10s non-breakdown
7.Insulation resistance:T-T Rjc: ≥3000 MΩ:μ F
T-C Rjc: ≥1000 MΩ
8.Between leading-out end and shell: ≥1000 MΩ
9.Tangent of loss angle:tgδ≤0.003(20°C 50/60Hz)
Specification
| Microfarad(uf) | Voltage/Size | |
| 220-250V | 450V | |
| 1uf | 31 x 14 x 24mm | |
| 1.2uf | 31 x 14 x 24mm | |
| 1.5uf | 31 x 14 x 24mm | |
| 2uf | 31 x 14 x 24mm | |
| 3uf | 31 x 14 x 24mm | |
| 4uf | 31 x 14 x 24mm | |
| 5uf | 31 x 14 x 24mm | |
| 6uf | 31 x 14 x 24mm | |
| 7uf | 31 x 14 x 24mm | |
| 7.5uf | 31 x 14 x 24mm | |
| 8uf | 31 x 17 x 27mm | |
| 9uf | 31 x 17 x 27mm | |
| 10uf | 31 x 17 x 27mm | |
| 11uf | 31 x 17 x 27mm | |
| 12uf | 31 x 17 x 27mm | |
| 14uf | 31 x 17 x 27mm | |
Packaging & Delivery
Packaging Detail: Exporting Standard Packing. Can offer bulk packing,Individual box packing,then use pallet. TBD by clients.
Delivery Detail: 25~30 days after receiving deposit
Payment
L/C , T/T
AC ceiling fan capacitor
CBB61 ceiling fan capacitor
Fan run capacitor
