Pu Foam Production Machine
US$ 10,000 - 12,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | GZ(Y)-15 | |
| Voltage | 220V, 50Hz, single phase (can be customized) | Power(W) | 2.2kW | |
| Dimension(L*W*H) | 1590 x 1200 x 2400mm | Weight | 2400kg | |
| Certification | Other, ISO9001 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

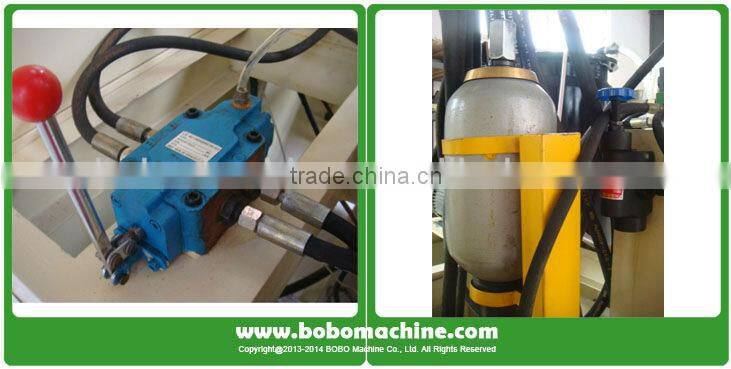

Pu foam production machine1.Pneumatic motor
2.High precision proportion pump

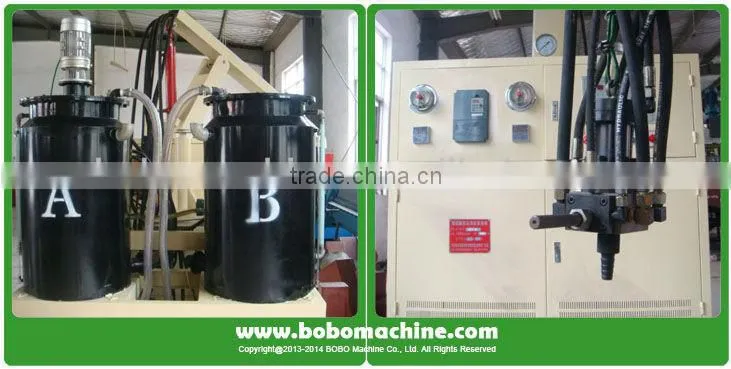

3.Main machine heating system

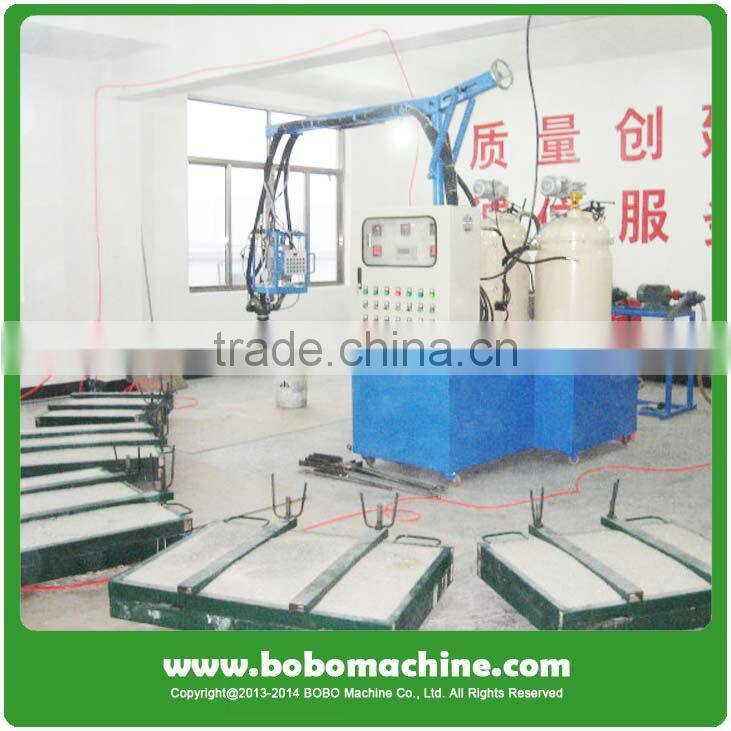

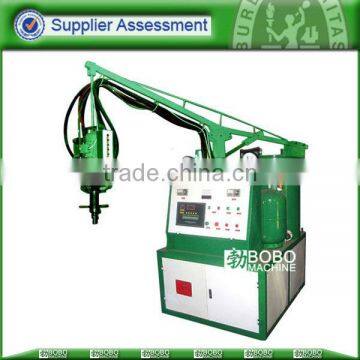

Pu foam production machine
This Pu foam production machine is mainly used for continuous injecting rigid or soft polyurethane foam products such as sofa pillow, car seats and furniture, etc.
Feature:
1. Pneumatic motor
2. High precision proportion system
3. Main machine heating system
4. Hose heating system
Main technical data:
| Model | GZ(Y)-15 |
| Main pump motor power | 2.2KW*2 |
| Mixing motor power | 0.55KW |
| Hydraulic pump motor power | 2.2KW |
| Auto glue filling motor power | 2.2KW(two set for two tanks) |
| Flux | 0-15kg per minute |
| Capacity of the tanks for polyurethane glue | 180kg each, auto filling glues |
| PLC automatic control | PLC programmable, automatically heating, injecting, cleaning and blowing; Special PLC system from Chinese domestic which can save 99 programs. |
| Equipped piston type measuring pump | HJ30-50 (two), adjusting accuracy 0.05%. |
| Generating pressure | 8-100MPa (one 0.8 m3 air compressor is equipped by buyer) |
| Machine weight | about 2400kg |
| Dimension | 1590*1200*2400mm |
