Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Board Making Machine > Preinsulated Pipe Foam Injection Machine
US$ 12,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOBO
Model Number:
GZ-220
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Pressure Polyurethane Foam MachineUS$ 9,000 - 12,000MOQ: 1 Set -
Continuous Foaming MachineUS$ 8,000 - 16,000MOQ: 1 Set
-
High Resilient pu Elastomer MachineUS$ 12,000 - 25,000MOQ: 1 Set
-
PU Foam Generator MachineUS$ 8,500 - 18,000MOQ: 1 Set
-
Decoration Foam MachineUS$ 15,000 - 22,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
GZ-220
After-sales Service Provided
Overseas service center available
Specifications
Preinsulated pipe foam injection machine1- Continuous injection
2- up to 12m pipe
3- Automatic clean
4- Turnkey project

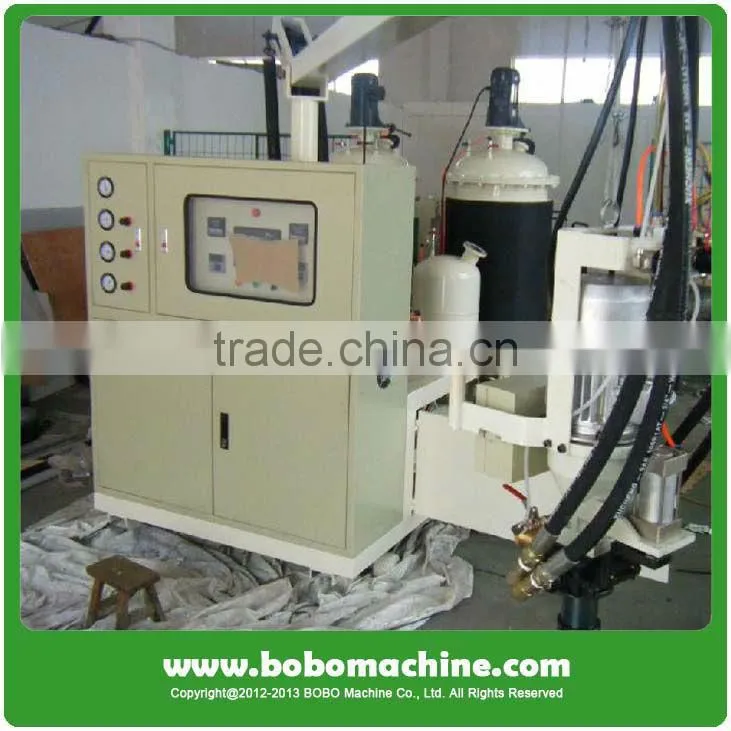

Preinsulated pipe foam injection machine

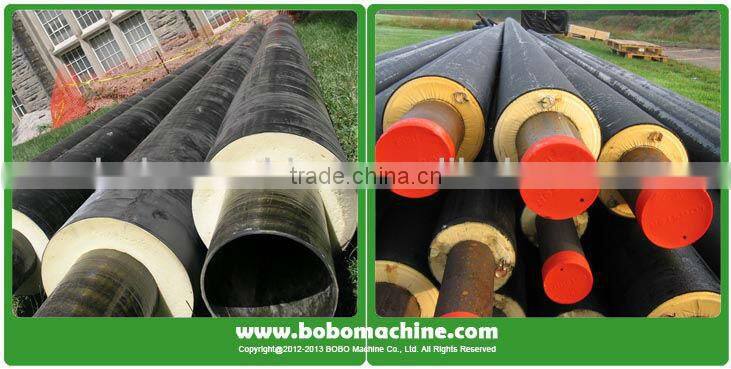

The foam line is specially designed for producing polyurethane insulated steel pipes for various pipelines. The largest pipe diameter is 1220mm, the max. length of pipe is 12000mm.
Main technical data
- Main pump motor power: 15kW x 2
- Mixing motor power: 0.55kW (installed inside A tank)
- Hydraulic pump motor power: 2.2kW
- Flux: 40-220kg per minute
- Injecting time: 0.1-99.9s
- Injecting pipe high pressure protected by pressure gauge with electric contact
- Filters for Polyol and ISO glues: DN110 self-clean filter
