Home > Manufacturing & Processing Machinery > Rubber Machinery > Rubber Raw Material Machinery > High Resilient pu Elastomer Machine
US$ 12,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Foam casting machine
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PU Foam Generator MachineUS$ 8,500 - 18,000MOQ: 1 Set -
Decoration Foam MachineUS$ 15,000 - 22,000MOQ: 1 Set
-
Wall Foam Insulation MachineUS$ 2,000 - 8,000MOQ: 1 Set
-
Insulation Foam Spray MachineUS$ 2,000 - 15,000MOQ: 1 Set
-
TDI / MOCA High Temperature Elastomer Cast MachineUS$ 15,000 - 30,000MOQ: 1 Set
Condition
New
Type
Other, Foam casting machine
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
GZ-30H
Voltage
380V
Power(W)
10KW
Dimension(L*W*H)
1800X2100X1600mm
Weight
2000kg
Certification
ISO, CE
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
High resilient pu elastomer machine1- TDI+ MOCA
2- TDI, MDI
3- material heatin process
4- ISO certificate

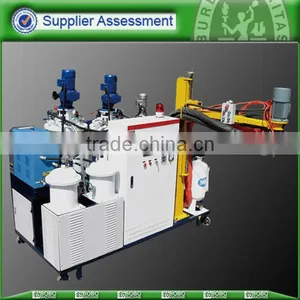

High resilient pu elastomer machine
The GZE-30 PU elastomer casting machine is designed for two unit of element. Each element unit flux is controlled by stepless speeding motor separately to get vibrational mixing ratio. Specially used for TDI/MDI pre-polymer and MOCA extender elastomer casting purpose.
Feature
- Two component dispenser
- Casting perhaps in the form of pressure (<2 bar) or vacuum (a few mbar)
- Dynamic mixing system products: turbine with variable speeds from 1000 to 6000 rpm
- The constant recycling of products using computer-aided control injection / recirculation at constant pressure provided by pneumatic valves regulating pressure: patent.

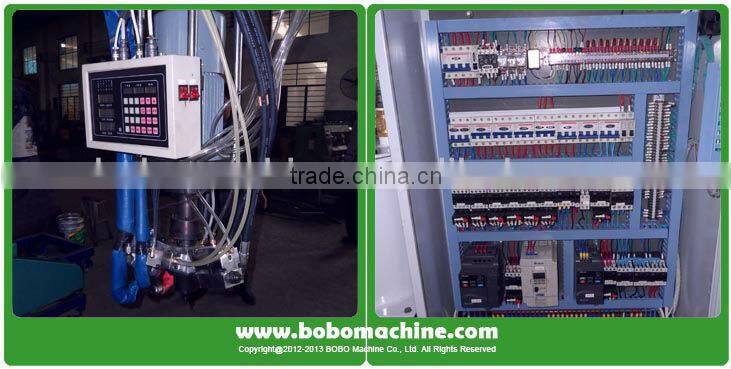

- Control of the machine using an electronic map with a constant display the basic parameters of injection (flow, temperature, pressure ...), 20 compounding the mixture in memory
- Automatic cleaning heads
- Possible flow rate from 0.5 to 3000 g / min, changes the ratio of the components.
