Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Automatic Straight Seam Welding Machine for Barrel, Drum
US$ 15,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOBO
Model Number:
HF-2000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Drum, Barrel Seam Welding MachineUS$ 15,000 - 35,000MOQ: 1 Set -
Drum Straight Seam Welding MachineUS$ 15,000 - 40,000MOQ: 1 Set
-
Rail Aluminum Thermit Welding MachineUS$ 1 - 2MOQ: 1 Set
-
Steel Strip Butt Welding MachineUS$ 1 - 2MOQ: 1 Set
-
Longitudinal Seam Welding MachineUS$ 1 - 10MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
HF-2000
Voltage
380
Current
500A
Rated Capacity
23KVA
Rated Duty Cycle
50%
Dimensions
345X620X580mm
Weight
62kg
Usage
drum, barrel seam welding
Specifications

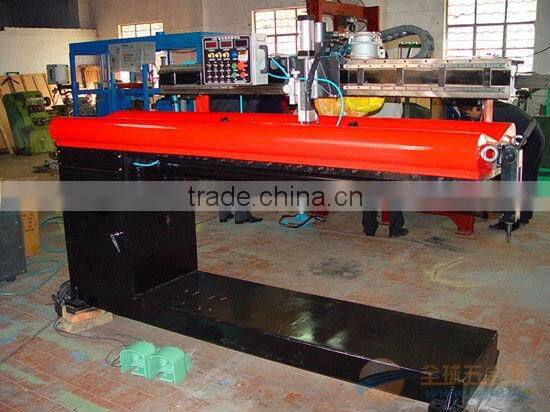

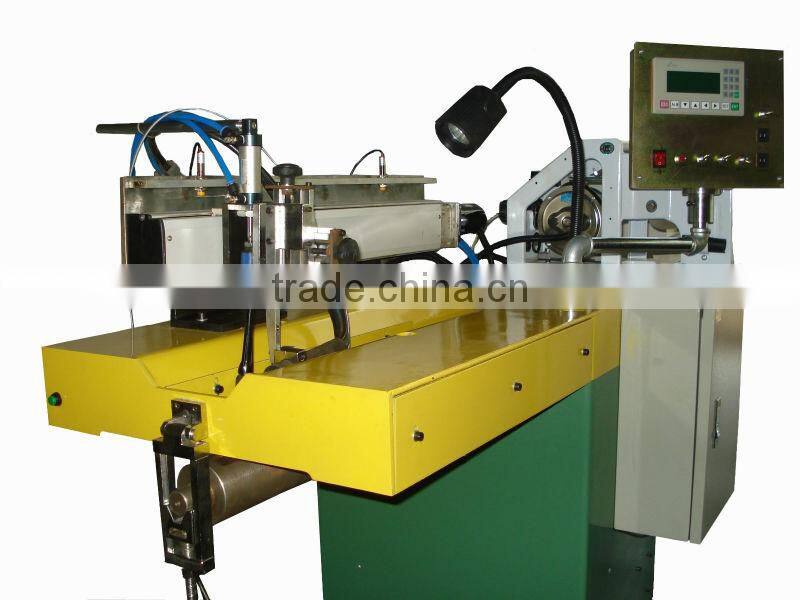

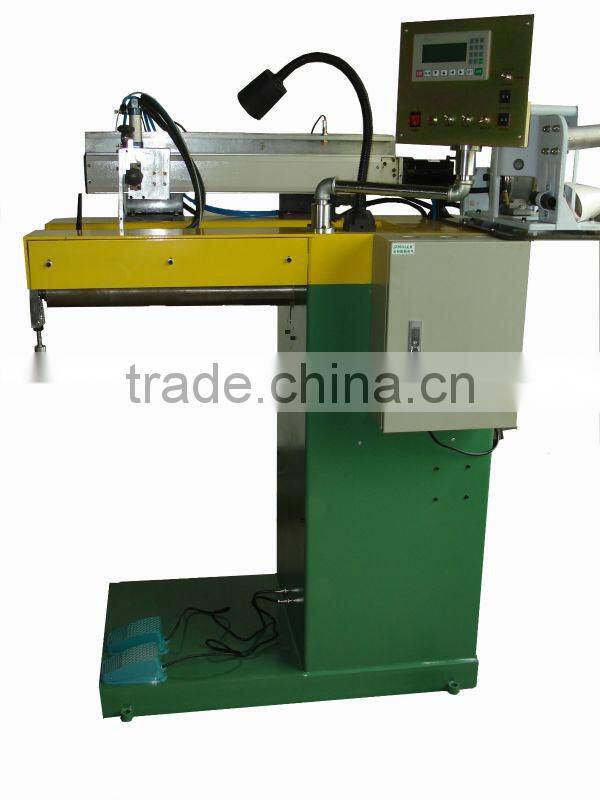

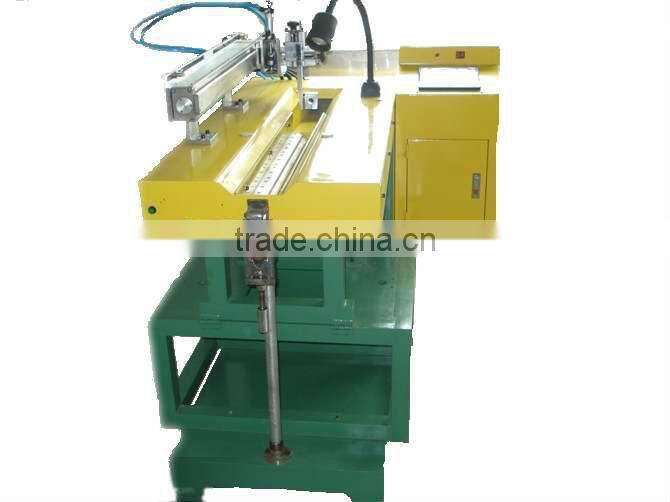

Automatic straight seam welding machine is used to close the seam of drum, barrel and the similar workpiece by arc, mig welding.Automatic straight seam welding machine for barrel, drum
Drum straight seam welding machine
Drum straight seam welding machine is used to close the seam of drum, barrel and the similar workpiece by welding process.
Feature
- Controlled by PLC for stable and reliable performance.
- The worktable is adjustable according to the size of work piece.
- Automatic centering and positioning for flat panel welding.
- Pneumatic driven welding torch, adjustable welding speed
Main technical data
Model | HF-2000 | |
Welding seam length | Up to 2000mm | |
Welding thickness | 2.0-4.0mm | Carbon steel |
Work piece diameter | 300-1200mm | |
Slider moving precision | 0.2mm | |
Slider moving speed | 100-2200mm/min | |
Welding torch moving stroke | 100mm | Moving up and down |
Welding torch adjustment stroke | 40mm | Both for X and Y axis |
Control power | AC 200V, 50Hz, single phase | |
Air pressure | 0.3-0.6MPa |
