Home > Products > Machine Tools > Drum Straight Seam Welding Machine

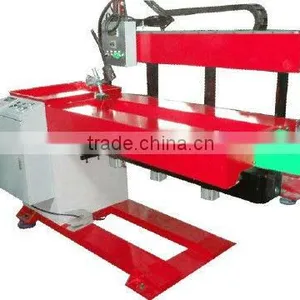

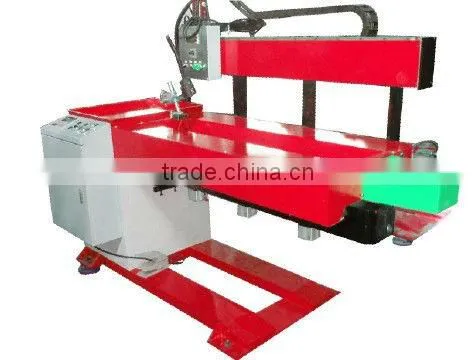

Drum Straight Seam Welding Machine
US$ 15,000 - 40,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | BOBO | |
| Model Number | HF-2000 | Voltage | 380 | |
| Current | 500A | Rated Capacity | 23KVA | |
| Rated Duty Cycle | 50% | Dimensions | 345X620X580mm | |
| Weight | 62kg | Usage | drum, barrel seam welding |
Product Description
Specifications

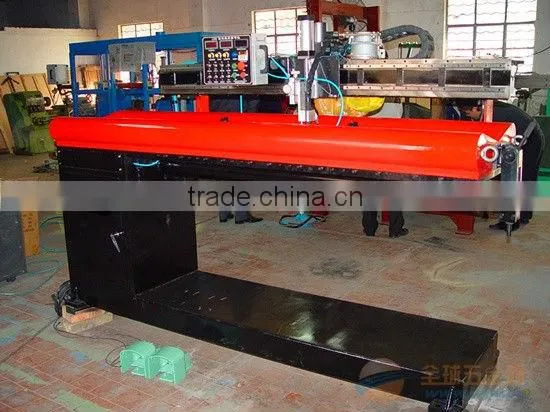

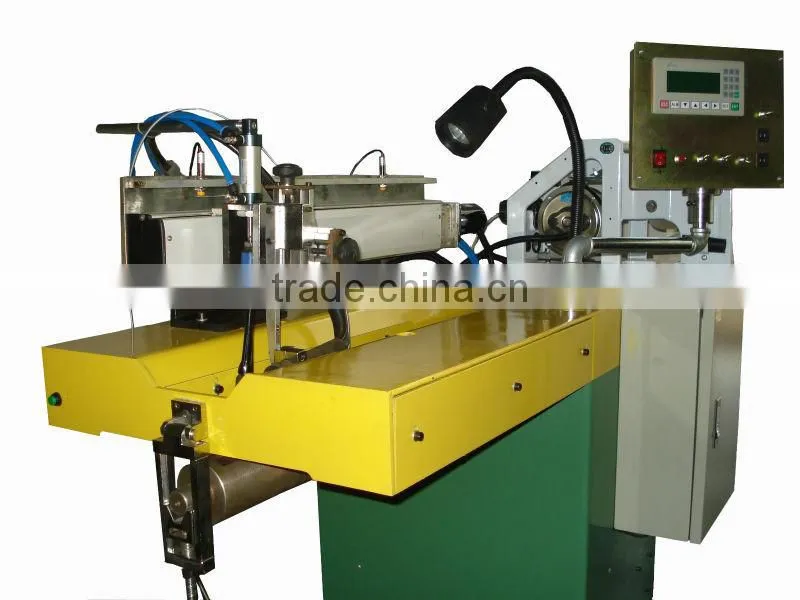

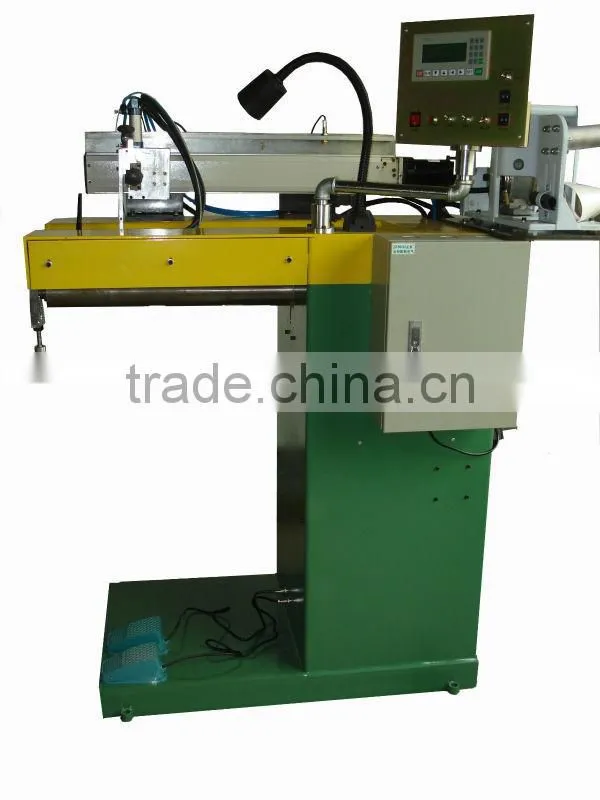

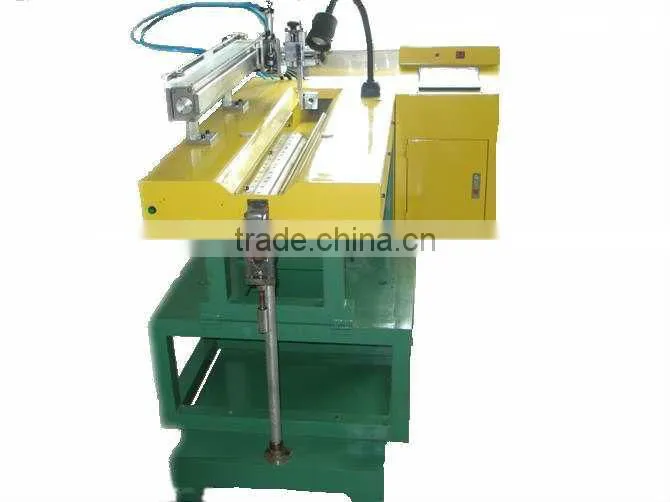

Drum straight seam welding machine is used to close the seam of drum, barrel and the similar workpiece by welding process.Drum straight seam welding machine
Drum straight seam welding machine is used to close the seam of drum, barrel and the similar workpiece by welding process.
Feature
- Controlled by PLC for stable and reliable performance.
- The worktable is adjustable according to the size of work piece.
- Automatic centering and positioning for flat panel welding.
- Pneumatic driven welding torch, adjustable welding speed
Main technical data
Model | HF-2000 | |
Welding seam length | Up to 2000mm | |
Welding thickness | 2.0-4.0mm | Carbon steel |
Work piece diameter | 300-1200mm | |
Slider moving precision | 0.2mm | |
Slider moving speed | 100-2200mm/min | |
Welding torch moving stroke | 100mm | Moving up and down |
Welding torch adjustment stroke | 40mm | Both for X and Y axis |
Control power | AC 200V, 50Hz, single phase | |
Air pressure | 0.3-0.6MPa |
