Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Steel Drum, Barrel Seam Welding Machine
US$ 15,000 - 35,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOBO
Model Number:
HF-1500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
HF-1500
Voltage
380
Current
500A
Rated Capacity
23KVA
Rated Duty Cycle
50%
Dimensions
345X620X580mm
Weight
62kg
Usage
drum, barrel seam welding
Specifications

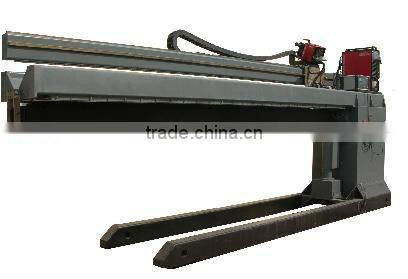

Steel drum, barrel seam welding machine is used to close the seam of drum, barrel and the similar workpiece by arc, mig welding.Steel drum, barrel seam welding machine
Automatic straight seam welding machine for barrel, drum

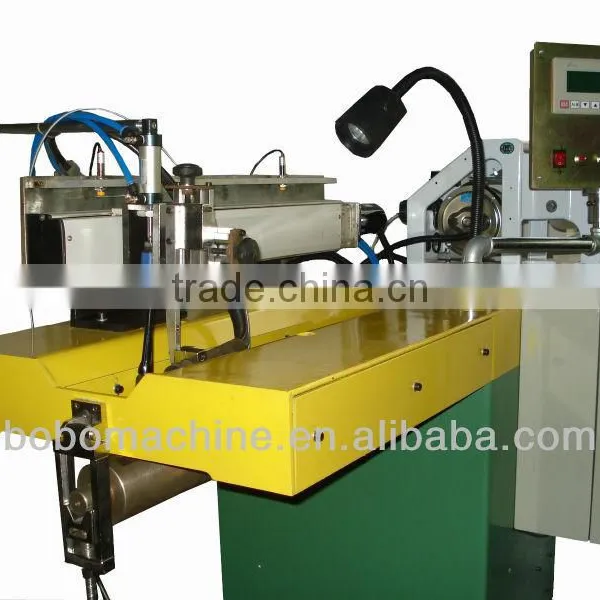

Drum straight seam welding machine
Drum straight seam welding machine is used to close the seam of drum, barrel and the similar workpiece by welding process.
Feature
- Controlled by PLC for stable and reliable performance.
- The worktable is adjustable according to the size of work piece.
- Automatic centering and positioning for flat panel welding.
- Pneumatic driven welding torch, adjustable welding speed
Main technical data
Model | HF-2000 | |
Welding seam length | Up to 2000mm | |
Welding thickness | 2.0-4.0mm | Carbon steel |
Work piece diameter | 300-1200mm | |
Slider moving precision | 0.2mm | |
Slider moving speed | 100-2200mm/min | |
Welding torch moving stroke | 100mm | Moving up and down |
Welding torch adjustment stroke | 40mm | Both for X and Y axis |
Control power | AC 200V, 50Hz, single phase | |
Air pressure | 0.3-0.6MPa |
