HVAC Duct Spiral Forming Machine
US$ 10,000 - 35,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Production Line
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Pipe Production Line
Pipe Material
Carbon Steel
Application
Other, HVAC
Production Capacity
1-35m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
BTF series
Voltage
220V/380V/415V/440V
Power(W)
10-15KW
Dimension(L*W*H)
3000X2500X2600mm
Weight
2000-2500kg
Certification
ISO, CE
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

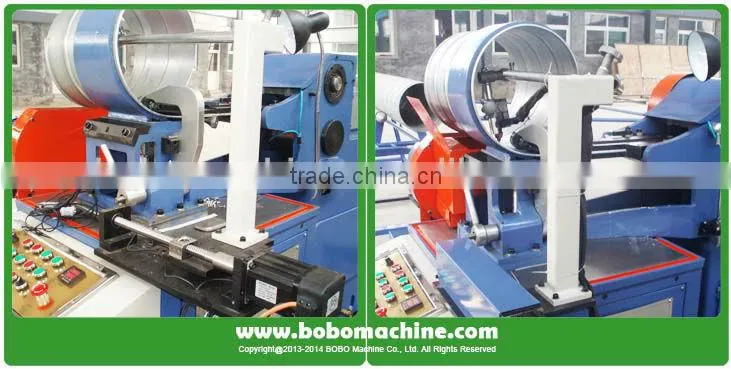

HVAC duct spiral forming machine1- Optional corrugation device
2- Optional plasma cutting system
3- Optional inner lock seam

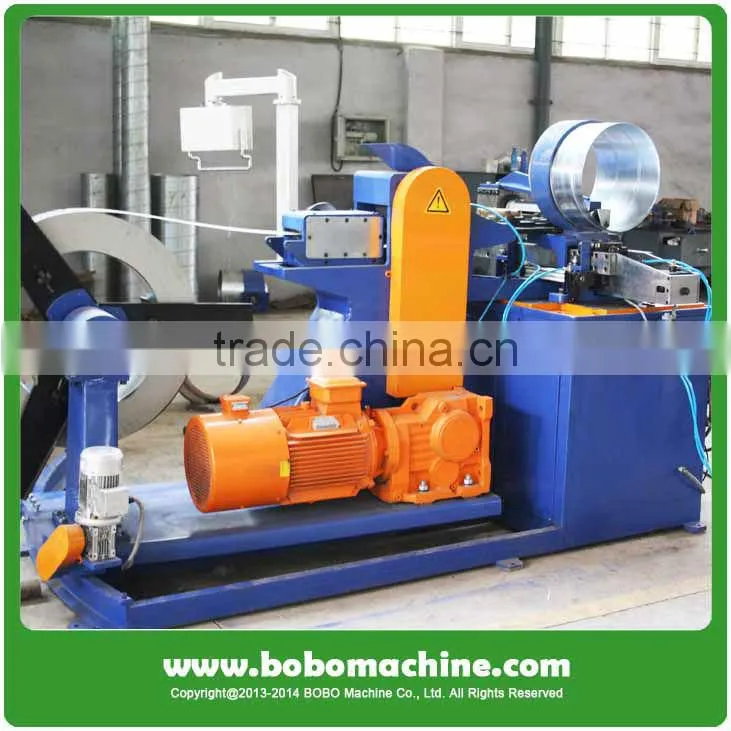

HVAC duct spiral forming machine
The HVAC Duct spiral forming machine is used to produce the round rigid air duct for ventilation purpose.
Feature
- PLC control system for automatic work
- Cutting system can be customized according to thickness
- Lock seam can be inner or outer for different application
- Eletric parts can be customized as per your requirements.
Main technical data
| 1 | Diameter | 100-2000mm |
| 2 | Thickness | 0.4-1.2-2.0mm |
| 3 | Strip width | 137-155mm |
| 4 | Strip feeding speed | 1-30m/min, adjustable |
| 5 | Suitable material | Galvanized steel, stainles steel |
| 6 | Main motor power | 15-22KW |
| 7 | Hydualic motor power | 4KW |
| 8 | Air compressor | 0.8MPa |
| 9 | Dimension | 3500 x 2800 x 2580mm |
| 10 | Weight | about 2500KG |
spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former, ventilationd duct machine, HVAC duct machine.
