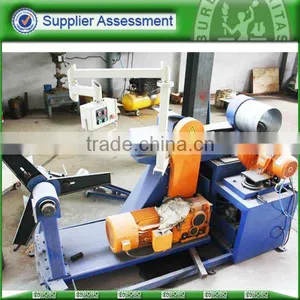

Spiral Duct Machine
US$ 10,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Molding Machine
Pipe Material:
Carbon Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Round Duct Gorelocker MachineUS$ 2,500 - 5,000MOQ: 1 Set -
Hydraulic Duct Elbow Making MachineUS$ 2,500 - 5,000MOQ: 1 Set
-
Mechanical Elbow Forming MachineUS$ 2,500 - 5,000MOQ: 1 Set
-
Hydraulic Elbow Gorelocker Lock Forming MachineUS$ 5,000 - 12,800MOQ: 1 Set
-
Vertical Type Elbow Making MachineUS$ 2,500 - 5,000MOQ: 1 Set
Condition
New
Type
Pipe Molding Machine
Pipe Material
Carbon Steel
Application
Other, Ventiltion air duct
Production Capacity
1-35m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
BTF-II
Voltage
380V or customizd
Power(W)
15kw
Dimension(L*W*H)
3500 x 2800 x 2580mm
Weight
2500kg
Certification
ISO, CE
Warranty
One year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Spiral duct machine1- Ventilation air duct purpose
2- Diameter up to 1600mm
3- Automatic work
4- CE certificate

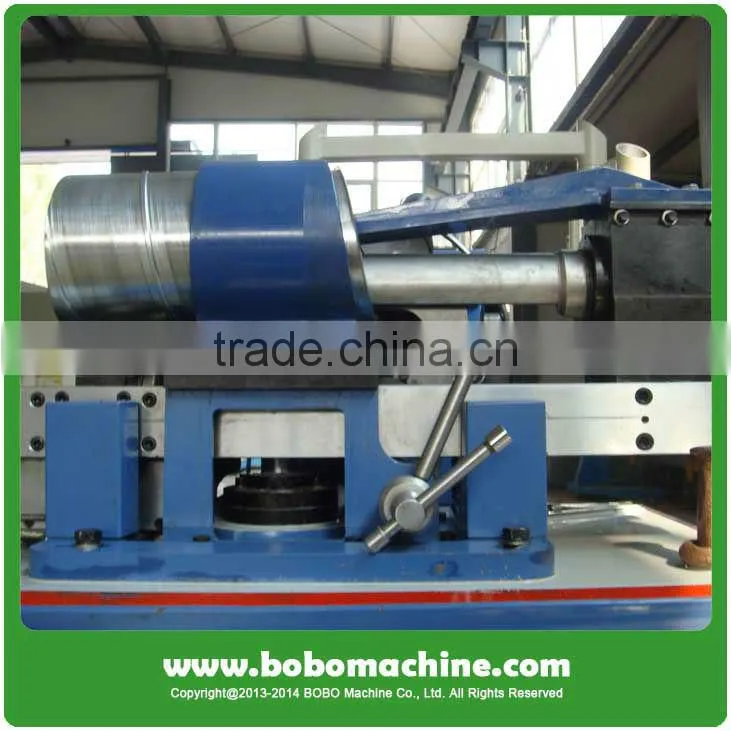

Spiral duct machine
The spiral duct machine BTF-II is used to produce the round rigid air duct for ventilation purpose, diameter from 100-1600mm.
Feature
- Fixed diameter mould for quick change and exact size
- Round roller shear, without noise and burrs
- Large diameter range from 100mm to 1600mm,
- PLC control, convenient operation
- Auto unloading rack, low labor cost
Main configuration
| 1 | Diameter | 100-2000mm |
| 2 | Thickness | 0.4-1.2-2.0mm |
| 3 | Strip width | 140-155mm |
| 4 | Strip feeding speed | 1-30m/min, adjustable |
| 5 | Suitable material | Galvanized steel, stainles steel |
| 6 | Main motor power | 15KW |
| 7 | Hydualic motor power | 4KW |
| 8 | Air compressor | 0.8MPa |
| 9 | Dimension | 3500 x 2800 x 2580mm |
| 10 | Weight | about 2500KG |
Key words: spiral tubeformer, spiral duct forming machine, ventilationd duct machine, spiral tube former, spiral duct former, ventilationd duct machine, HVAC duct machine, air duct machine.
