Spiral Tube Former BTF-II
US$ 13,000 - 26,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Molding Machine
Pipe Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spiral Duct MachineUS$ 10,000 - 30,000MOQ: 1 Set -
Round Duct Gorelocker MachineUS$ 2,500 - 5,000MOQ: 1 Set
-
Hydraulic Duct Elbow Making MachineUS$ 2,500 - 5,000MOQ: 1 Set
-
Mechanical Elbow Forming MachineUS$ 2,500 - 5,000MOQ: 1 Set
-
Hydraulic Elbow Gorelocker Lock Forming MachineUS$ 5,000 - 12,800MOQ: 1 Set
Condition
New
Type
Pipe Molding Machine
Pipe Material
Stainless Steel
Application
Other, HVAC duct making
Production Capacity
1-35m/min
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
BTF-II
Voltage
380V or customized
Power(W)
15KW
Dimension(L*W*H)
3500mm x 2800mm x 2580mm
Weight
2500KG
Certification
ISO,CE
Warranty
One year
After-sales Service Provided
Overseas service center available
Specifications
Spiral tube former BTF-II1- Fixed diameter mould
2- Rotating cutting blade
3- ISO, CE approved
4- One year guarantee

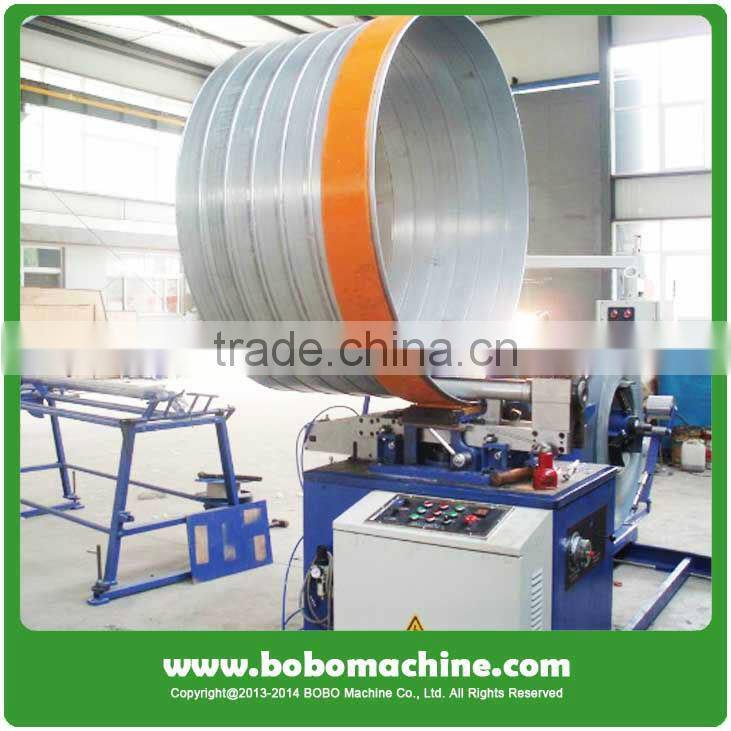

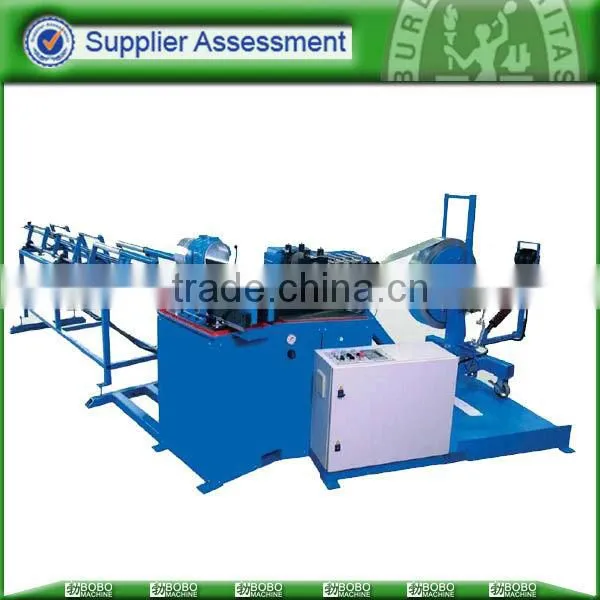

Spiral tube former BTF-II
The spiral tube former BTF-II is used to produce the round rigid air duct for ventilation purpose, diameter from 100-1600mm.
Feature
- Special steel mould, light & long life
- Round roller shear, without noise and burrs
- Large diameter range
- PLC control, convenient operation
- Auto unloading rack, low labor cost
Main technical data
| 1 | Diameter | 80-1500mm |
| 2 | Thickness | 0.4-1.2mm |
| 3 | Strip width | 137mm |
| 4 | Strip feeding speed | 1-35m/min, adjustable |
| 5 | Suitable material | Galvanized steel, stainles steel |
| 6 | Main motor power | 11.5KW |
| 7 | Hydualic motor power | 4KW |
| 8 | Air compressor | 0.8MPa |
| 9 | Dimension | 3500 x 2800 x 2580mm |
| 10 | Weight | about 2500KG |
