Plastic and aluminum flexible duct machine1- aluminum foil
2- metalized PET film
3- laminated film

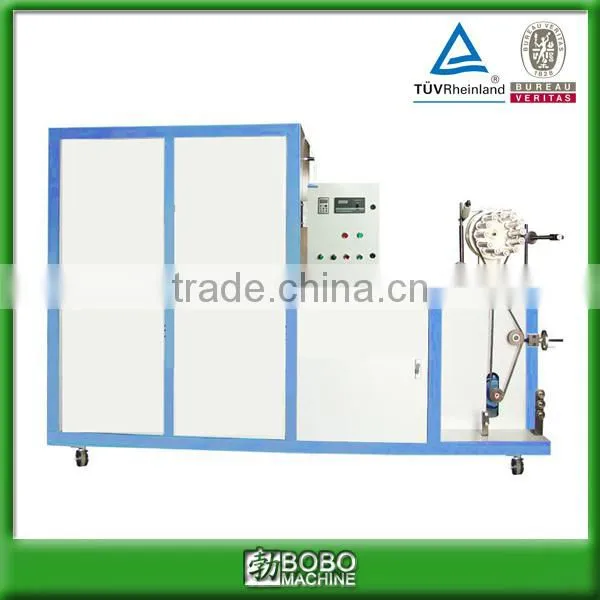

Plastic and aluminum flexible duct machine
The Plastic and aluminum flexible duct machine is used to produce aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforcement
Main technical data
1.1 Diameter range: 80mm~600mm
1.2 Length of aluminum tube: 1-10m
1.3 Raw material: metalized PET film, 0.012mm, width 35-50mm
1.4 Dimension (L x W x H): 2200 x 820 x 1550mm
1.5 Weight: 500kg
1.6 Main motor power: 1.5kW
1.7 Temperaute: 40~120 centigrade
1.8 Electric heating power: 2.4kW
1.9 Working speed: 1-35 m/min, adjutable
1.10 Features of finished ducts:
Temperature resistance: -30°C-140°C
Max. air flux: 30m/s
Max. working pressure: 2500Pa
Pitch between corrugations: 20mm
conduit flexible en aluminium formant la machine
conducto flexible de aluminio que forma la máquina
duto flexível de alumínio dá forma à máquina
Aluminum flexible duct foming machine
Flexible aluminum duct forming machine
Flexible ventilation duct machine
spiral flexible duct making machine
