Specifications
Material1- Single side aluminum foil
2- Double side aluminum foil
3- Metalized PET film

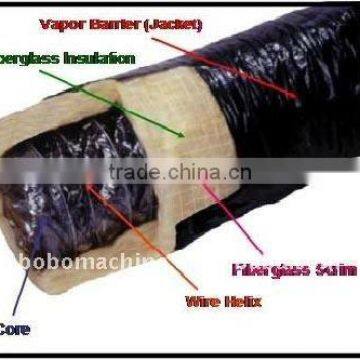

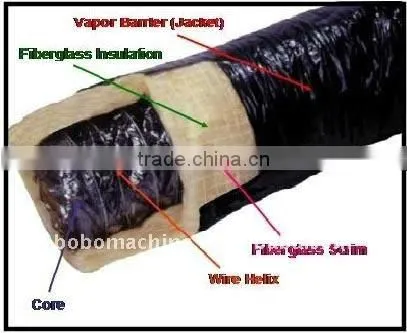

4- Fibergalss reinforced scrim film
1- Metalized PET film flexible duct machine
2- Aluminum flexible duct foming machine
3- Flexible aluminum duct forming machine
4- Flexible ventilation duct machine
5- spiral flexible duct making machine

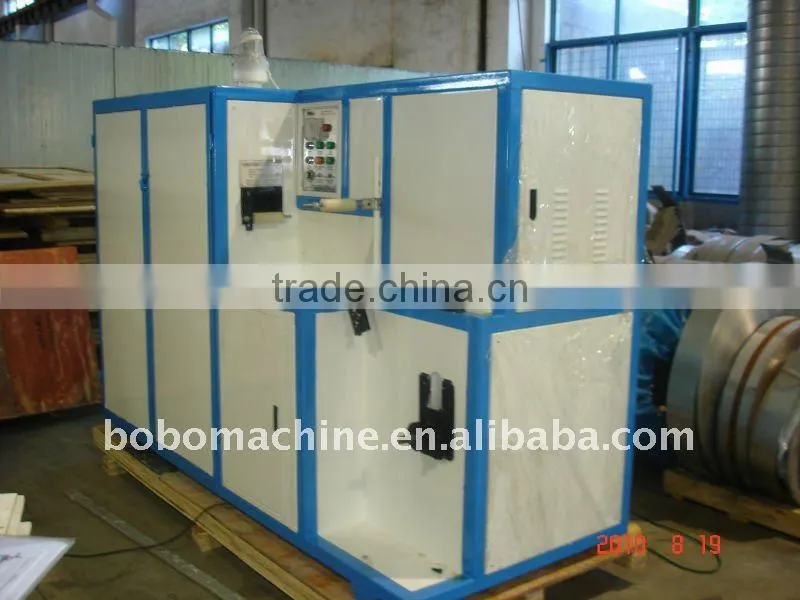

The machine is used to produce aluminum flexible ducts with aluminum foil or metalized PET film with steel wire reinforcement
Main technical data
1.1 Diameter range: 80mm~600mm
1.2 Length of aluminum tube: 1-10m
1.3 Raw material: metalized PET film, 0.012mm, width 35-50mm
1.4 Dimension (L x W x H): 2200 x 820 x 1550mm
1.5 Weight: 500kg
1.6 Main motor power: 1.5kW
1.7 Temperaute: 40~120 centigrade
1.8 Electric heating power: 2.4kW
1.9 Working speed: 1-35 m/min, adjutable
1.10 Features of finished ducts:
Temperature resistance: -30°C-140°C
Max. air flux: 30m/s
Max. working pressure: 2500Pa
Pitch between corrugations: 20mm

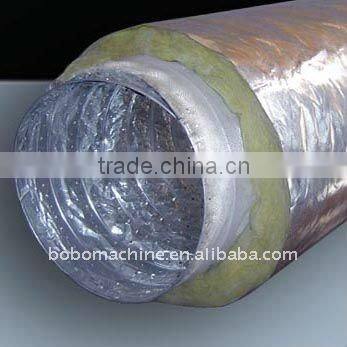

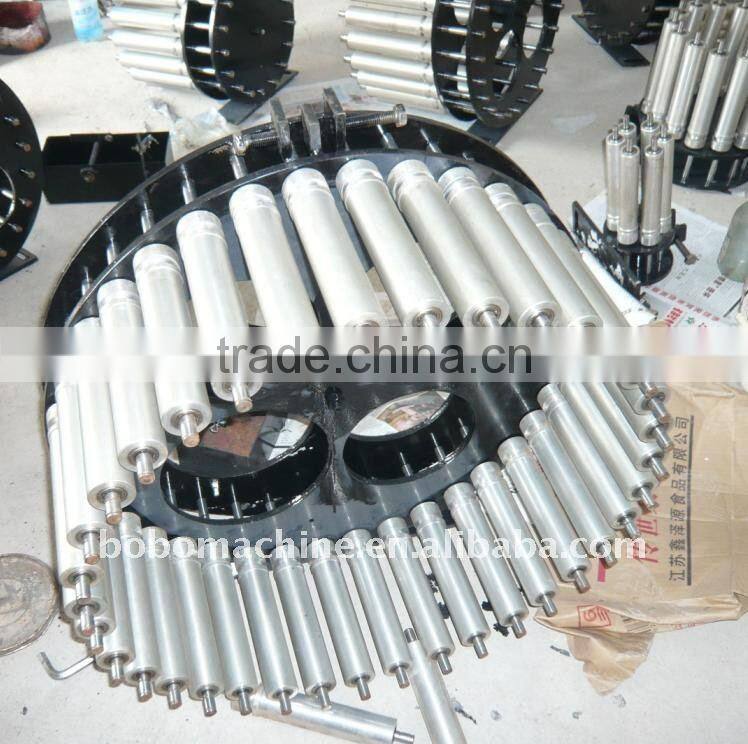

Forming mould Finished product
