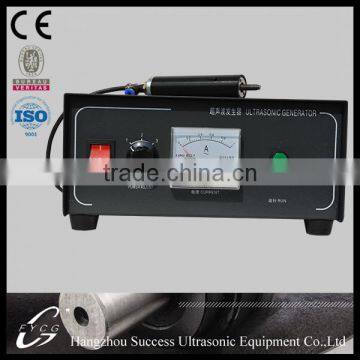

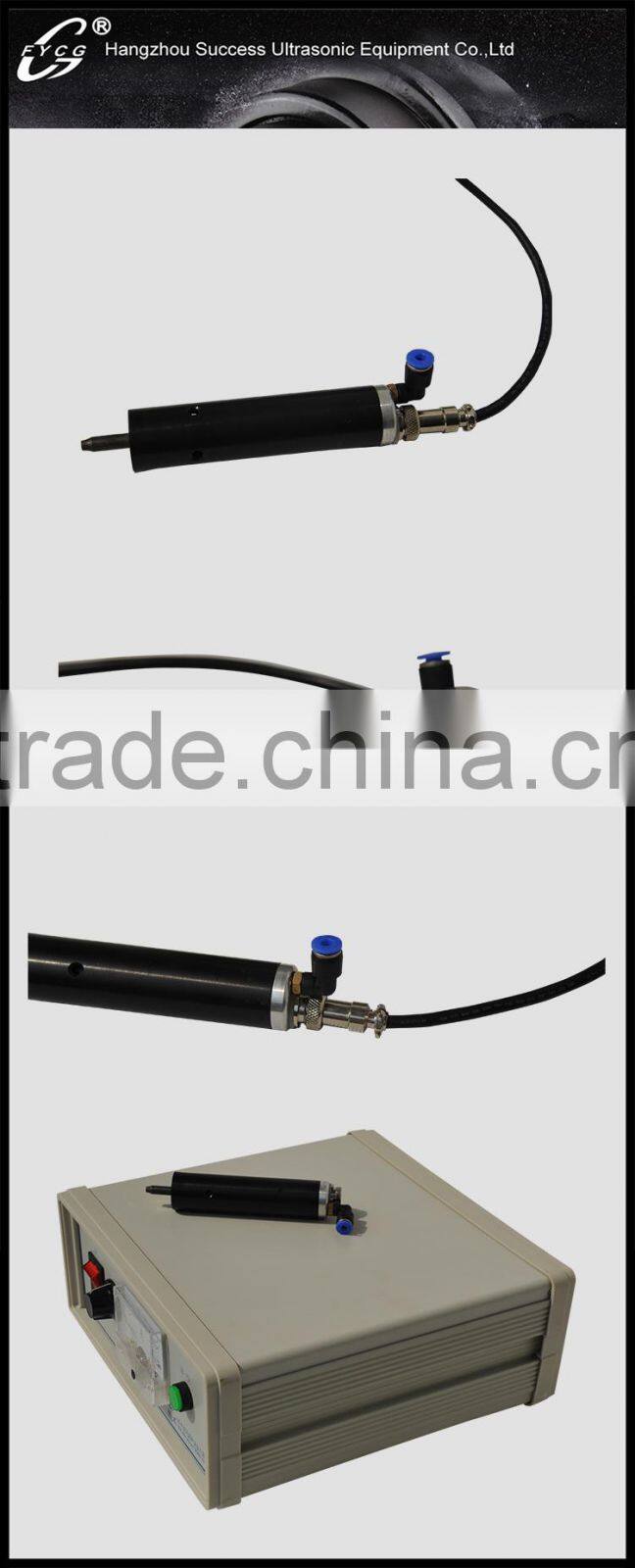

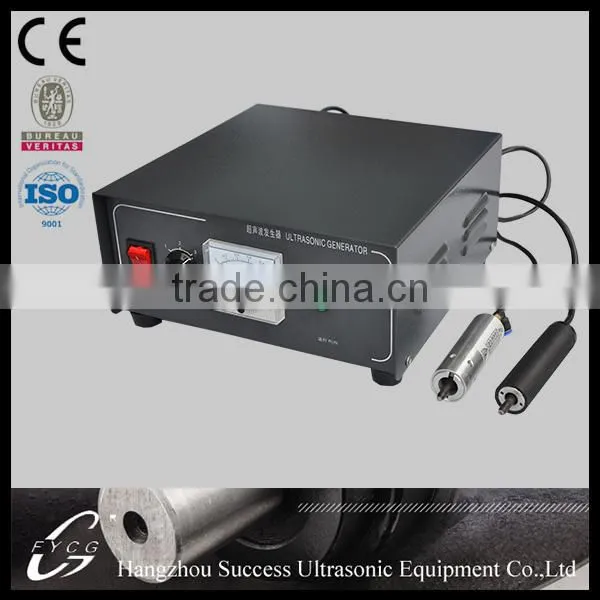

YP-D77 60Khz Ultrasonic Smart Card Welder
During the past half year, with many effort from the research development section of our company, at present we have successfully promote the intelligent card welding equipment substantially. After promotion,comparison with the former one, the properties of the equipment has been promoted highly, more stability, better in search the frequncy at more wide range,and much better appearance.On the process using the former 60K equipment,with the damage of thewelding horn,the frequncy would be altered.(the frequncy is decided by the size of the product).When the frequncy is altered to a certain degree, the ultrasonic generator would be difficult to coincide with the frequncy, then influencing to the normal running of all the ultrasonic system.
Feature
1.steady welding point, completely eradicate insufficient solder technically.
2.the size of welding spots is the same, equality line, good effect on uniformity
3.the welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation
4.to leave out the immersion tin step before doing welding ,save an operator.
5. after skilled in welding, much faster than the way to use searing iron to do weld.
6.on the process on manufactory,there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.
7.to select the the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.
8.low power consumption, to save production cost for manufactory enterprise
Parameter
| Frequency | 60 Khz |
| Power | 500 W |
| Power Adjusting | Step or continuous |
| Switch | Handle , foot switch,or linked outside |
| Working Time Control | 0-999seconds |
| Controller Box | 250X250X120mm |
| Cable | 2M, national standard |
| The Threading Hole | Φ0.5m or design according to customers' need |
| Cooling-down Method | Compressed air |
| Hull | aluminium or nylon |
