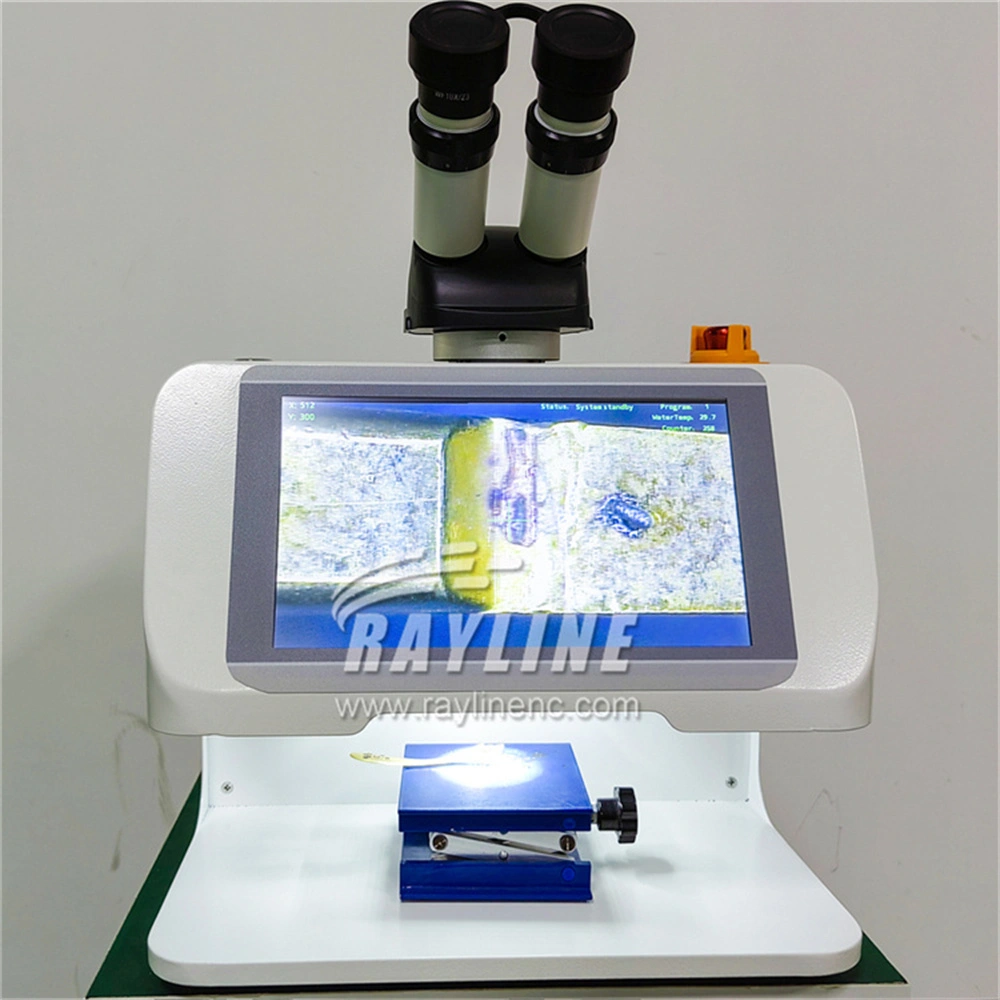

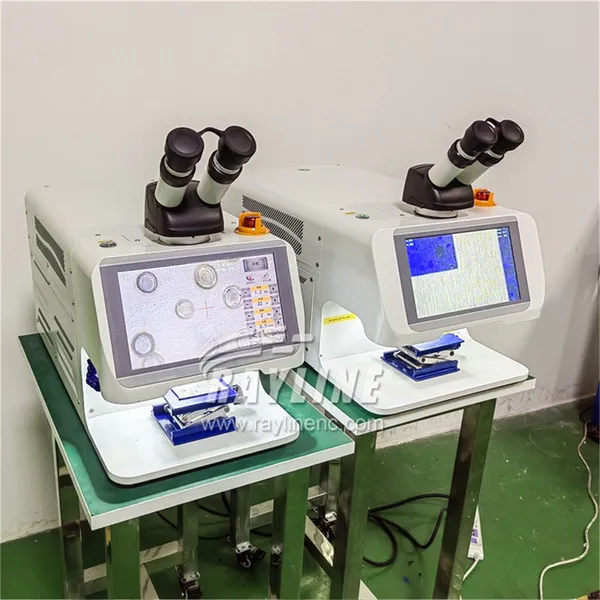

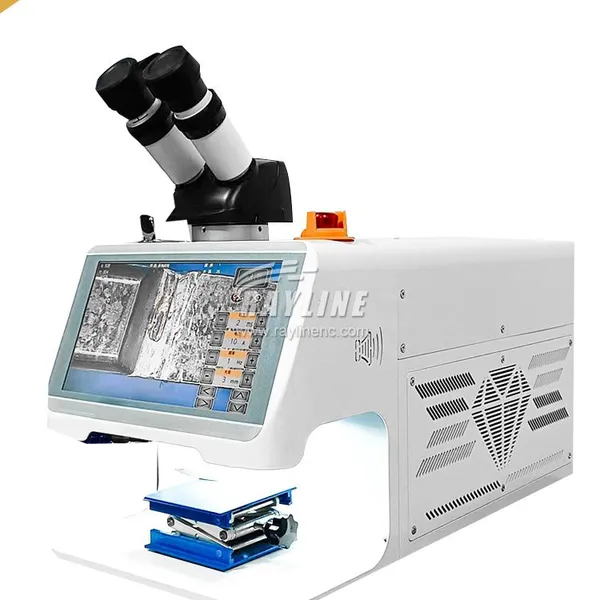

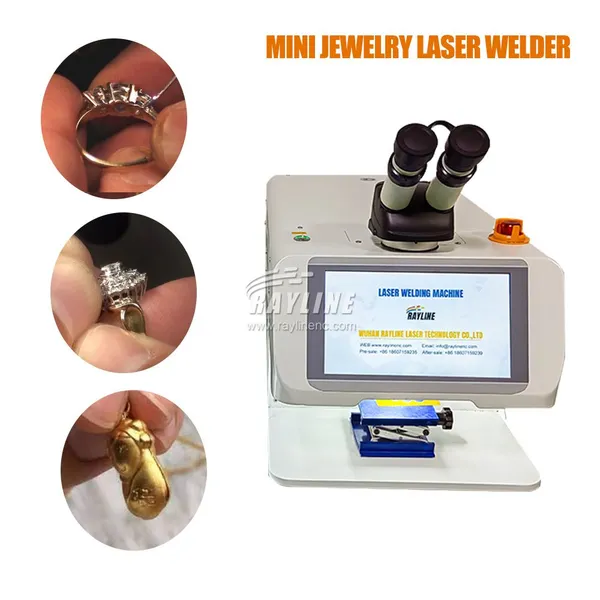

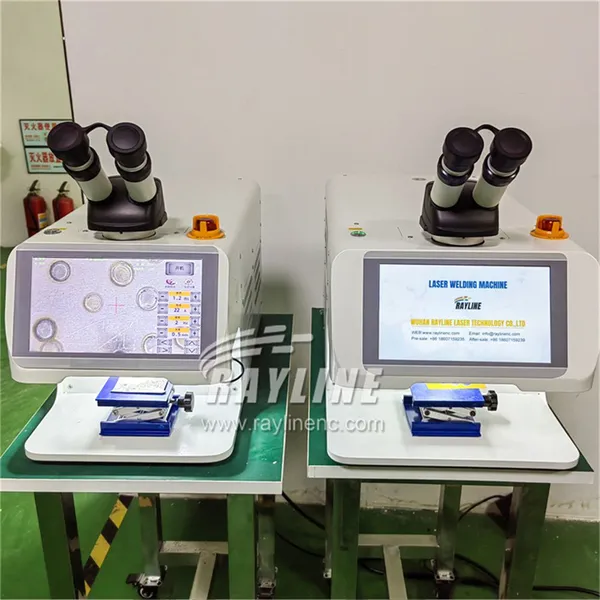

Help CenterGold Platinum Laser Welding Machine 200W Jewelry Spot Welder for Ring Chain Necklace Bracelet Earring Repair
Product Spotlights
Related Products
-
Jewelry Laser Welding Machine 200W Spot Welder for Gold Silver Platinum Ring Chain Repair PolishingUS$ 3294MOQ: 1 Combo -
Pulse Laser Jewelry Welding Machine 150W Gold Silver Spot Welder for Necklace Bracelet Earring RepairUS$ 3294MOQ: 1 Combo
-
Desktop Jewelry Laser Welder 100W Micro Spot Welding Machine for Ring Sizing Chain Link Jewelry RepairUS$ 4235MOQ: 1 Combo
-
Industrial Fiber Laser Marker for Precision Bearing and Gear Box Serial Number Traceability SystemUS$ 1765MOQ: 1 Combo
-
Factory Price 1530 Portable CNC Plasma Cutting Machine Flame Plasma Cutter for Sheet Metal Carbon Steel ProcessingUS$ 2059MOQ: 1 Set
The weld joints are small and concentrated, with a very small heat-affected zone. They do not burn or deform, and the weld marks are almost invisible, requiring minimal post-processing grinding. The finished product is exquisite and high-end.
It can weld gold, karat gold, platinum, silver, stainless steel, titanium steel, and alloy jewelry. It can weld both the same and different metals, making it highly versatile.
The welds have high density and strength, making them less prone to breakage and cracking, resulting in strong durability for necklaces, rings, and prong settings.
For more details, a quote, or special offers, please feel free to contact me:
Allen Cameron
Email: allen@raylinelaser.com
WhatsApp/Phone: +86 186 0715 2363
Name |
Laser Jewelry Welding Machine, Laser Spot Welding Machine |
|||
Model |
RA-VR100 |
RA-VR150 |
RA-CR200 |
RA-VR200A |
Laser Power |
100W |
150W |
200W |
200W |
Laser Wavelength 1064mm |
1064mm |
1064mm |
1064mm |
1064mm |
Volage Regulating(Customized) |
100-400VDC |
100-400VDC |
100-400VDC |
100-400VDC |
Pulse width |
0.1-20ms |
0.1-20ms |
0.1-20ms |
0.1-20ms |
Beam Diameter |
0.2-2mm |
0.2-2mm |
0.2-2mm |
0.2-2mm |
Laser Welding Working Distance |
100-300mm |
100-300mm |
100-300mm |
100-300mm |

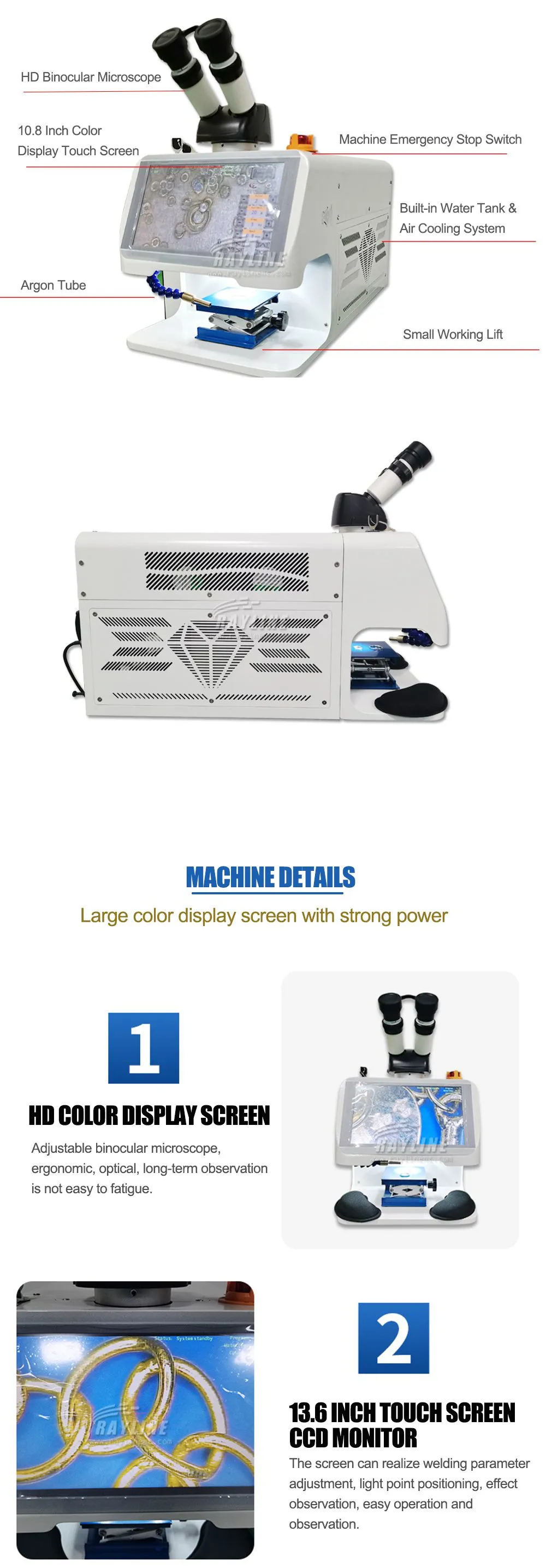

Aiming and Positioning |
Microscope +CCD (Combined) |
Microscope +CCD (Combined) |
Microscope +CCD (combined) |
Microscope +CCD (combined) |
Power |
≤5KW |
≤6KW |
≤6KW |
≤6KW |
Machine Dimension |
54*29*29cm |
56*29*29cm |
75*54*58cm |
58*35*29cm |
Machine Net weight |
28KG |
35KG |
80KG |
39KG |
Package size |
64*52*50cm |
64*52*50cm |
87*52*55cm |
64*50*53cm |
Gross weight |
40.5kg |
48KG |
110KG |
50KG |
Language |
English, Russian, French, Korean, Portugal (Customized) |
|||
Application |
Good at welding and repairing for jewelry, gold, necklace, glasses, dental, etc. Materials for welding and repairing can be gold, silver, aluminum, stainless steel, titanium, nickel, copper, etc. |
