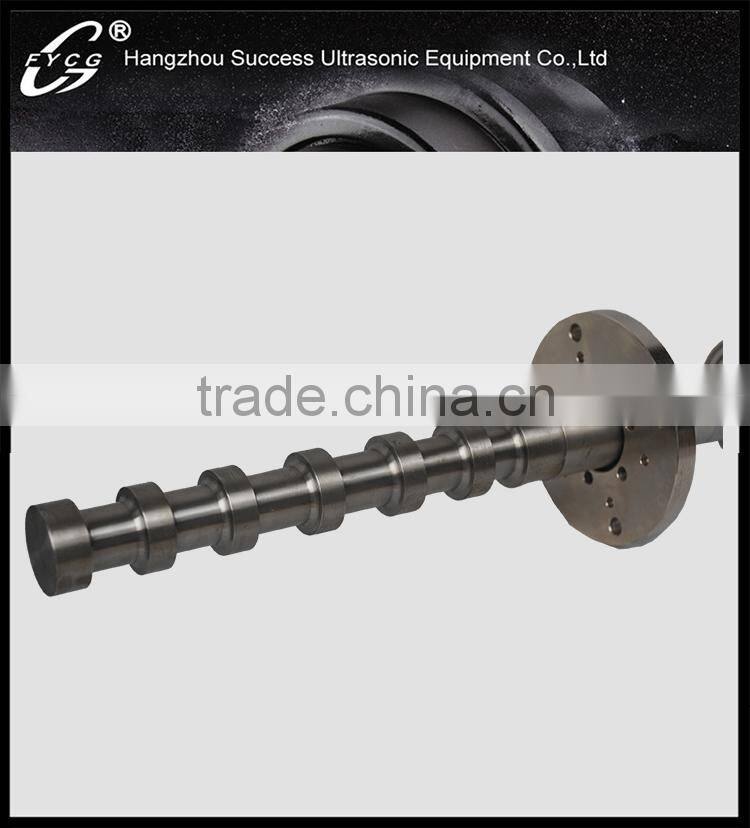

YP-S53 20kHz Ultrasonic Extraction
US$ 2,500 - 8,850
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FYCG
Model Number:
YP-S53
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YP-S51 28Khz Ultrasonic Cavitation MachineUS$ 2,500 - 8,850MOQ: 1 Set -
YP-S61 20kHz Ultrasonic Biodiesel EquipmentUS$ 2,500 - 8,850MOQ: 1 Set
-
YP-S57 20Khz Ultrasonic Herb Extract Machine(Industrial Level)US$ 2,500 - 8,850MOQ: 1 Set
-
YP-S55 20Khz Ultrasonic Emulsifier Machine(Industrial Level)US$ 2,500 - 8,850MOQ: 1 Set
-
YP-S55 Ultrasonic HomogenizerUS$ 2,500 - 8,850MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
FYCG
Model Number
YP-S53
Type
Other, Ultrasonic Extraction
After-sales Service Provided
Engineers available to service machinery overseas
YP-S53 20kHz Ultrasonic Extraction
Product Description
For the strong radiation pressure, mechanical vibration, disturbance effect, emulsion, diffusion, high acceleration, smash and mix produced by ultrasonic cavitation, increase the frequency and speed of molecular motion, increase in solvent penetration, accelerating target component into the solvent, promote the extraction process.It is called ultrasonic extraction.
Comparison
| Compared with SFE |
1. Simple equipment, low cost 2. Suitable for any solvent |
| Compared with Soxhlet |
1. High efficiency 2. Allows adding extractant 3. Suitable for the thermolabile target component extraction 4. Short time |
| Compared with Microwave-assisted Extraction |
1. Short time 2. More secure in acid digestion 3. Simple process, no pollution to extract |
Sepecification
| Model | YP-S51 | YP-S53 | YP-S55 | YP-S57 | YP-S59 | YP-S61 |
| Frequency | 28 kHz | 20 kHz | 20 kHz | 20 kHz | 20 kHz | 20 kHz |
| Power | 1000 W | 500 W | 1000 W | 1500 W | 2000 W | 3000 W |
| Voltage | 220±10% V | |||||
| Temperature | 300 °C | |||||
| Pressure |
30 MPa |
|||||
| Intensity of sound | ≥15 W/cm² | ≥10 W/cm² | ≥20 W/cm² | ≥30 W/cm² | ≥40 W/cm² | ≥60 W/cm² |
| Capacity | 400 L/H | 300 L/H | 600 L/H | 900 L/H | 1200 L/H | 1800 L/H |
| Generator |
V5.0 |
V6.0 |
V6.0 |
V6.0 |
V6.0 |
V6.0 |
| Material of Horn | Titanium alloy | |||||
| Size |
Generator: 200*420*280 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Applications
- Break the cell of creature and plant.
- Extracting the effective ingredients of creature and plant.
- Extracting the effective ingredients of herbal medicine in the low temperature.
- Extracting the BCR element speciation.
- Activation of bacteria in a low energy state.
- To kill living bacteria in a high energy state.
- DNA extraction and DNA shear.
- Gene transfection.
- Accelerating aging for liquor.
- Dormancy breaking of plant seeds, in order to improve the germination rate and precocious puberty.
- The two item which is not homogeneous solution polymerization.
- Deep processing: traditional Chinese medicinal materials,oil, sugar crops,fruit,vegetable,tea leaf, food supplies and so on.
Advantages
- Do not need high temperature.
- High efficiency.
- Wide applicability, for the vast majority of medicinal herbs.
- Low energy consumption.
- Large capacity, fewer impurities, separation and purification of effective components easily.
- Low cost, high economic benefits.
- Simple operation, convenient maintenance.
- Don't change the chemical structure and composition of extraction.
-
May be the emergence of new no matter, is conducive to the discovery of new components.
Why Choose Us?
- Hangzhou Success Ultrasonic Equipment Co.,Ltd is the leader of high-power ultrasonic equipment in China.
- Our company was founded in 1978.We have more than 30 years experiences.
- We have more than 20 engineers.They can make design scheme according to your requirements.
- Our piezoeletric ceramic disc is imported from Germany.The transducer have longer service life.
- Welcome to send us your sample.We have a open laboratory.It is free for making experiment.And we will take a video for you.
- We are specializing in high-power ultrasonic device and approved by CE, BV, ISO 9001.
After-Sales Service
- 24 hours technical supports and after-sales service
- Non-human damage, one year guaranteed exchange, three years warranty
