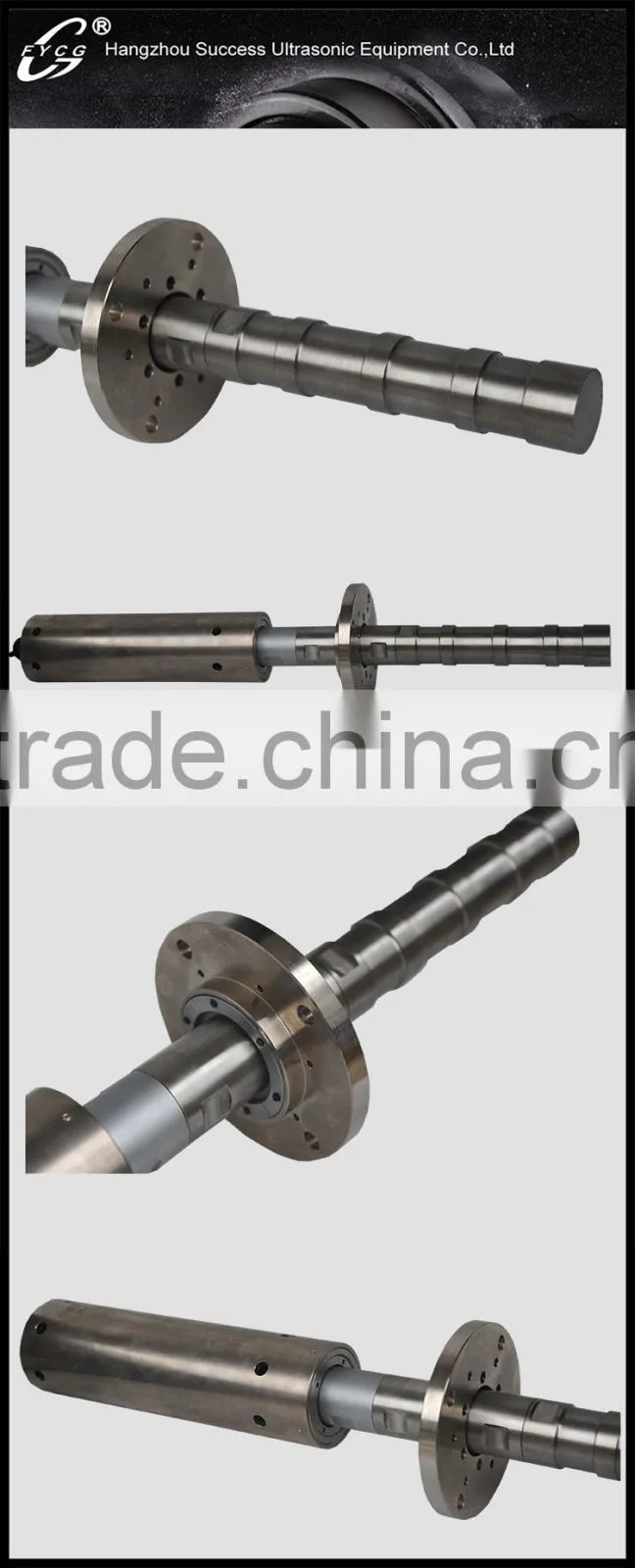

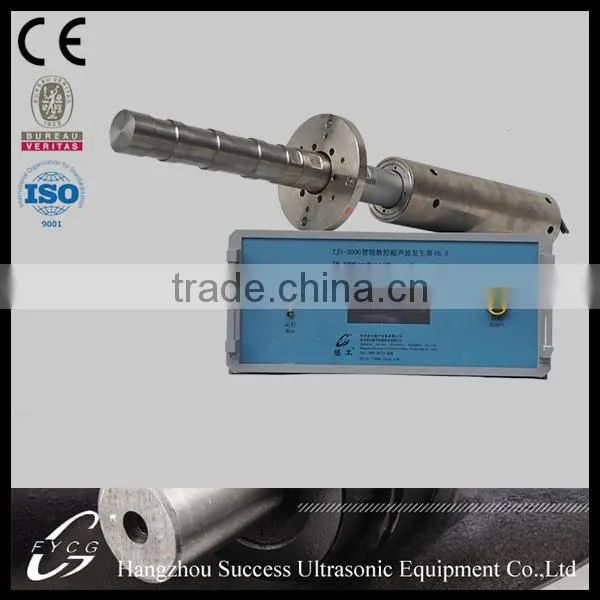

YP-S55 Ultrasonic Homogenizer
US$ 2,500 - 8,850
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Other, All of the mixture
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YP-S17 20Khz Laboratory Ultrasonic Emulsification(Experiment Level)US$ 1,600 - 3,200MOQ: 1 Set -
YP-S15 28Khz Laboratory Ultrasonic Homogenizer(Experiment Level)US$ 1,600 - 3,200MOQ: 1 Set
-
Hangzhou Success Ultrasonic Sonochemistry SystemUS$ 1,000 - 2,000MOQ: 1 Set
-
20Khz 2000W Laboratory Ultrasonic Mixing EquipmentUS$ 1,000 - 2,000MOQ: 1 Set
-
20Khz 2000W Laboratory Ultrasonic Emulsify EquipmentUS$ 1,000 - 2,000MOQ: 1 Set
Condition
New
Mixer Type
Homogenizer
Product Type
Other, All of the mixture
Application
Other, All of the mixture
Additional Capabilities
Drying
Place of Origin
Zhejiang, China
Brand Name
FYCG
Model Number
YP-S55
Max. Loading Capacity
600 L
Voltage
220 V
Power(W)
1000 W
Dimension(L*W*H)
Standard or Custom Made
Certification
CE,BV,ISO 9001
Warranty
3 Years
After-sales Service Provided
Engineers available to service machinery overseas
YP-S55 Ultrasonic Homogenizer
Product Description
Under the action of ultrasonic wave, two(or more than two) kinds of liquid which are not mutually melt mixing evenly disperse system,one liquid uniform distribution in the other liquid,become emulsions.It is called ultrasonic homogenizer.
Sepecification
| Model | YP-S51 | YP-S53 | YP-S55 | YP-S57 | YP-S59 | YP-S61 |
| Frequency | 28 kHz | 20 kHz | 20 kHz | 20 kHz | 20 kHz | 20 kHz |
| Power | 1000 W | 500 W | 1000 W | 1500 W | 2000 W | 3000 W |
| Voltage | 220±10% V |
|||||
| Temperature | 300 °C |
|||||
| Pressure | 30 MPa |
|||||
| Intensity of sound | ≥15 W/cm² | ≥10 W/cm² | ≥20 W/cm² | ≥30 W/cm² | ≥40 W/cm² | ≥60 W/cm² |
| Capacity | 400 L/H | 300 L/H | 600 L/H | 900 L/H | 1200 L/H | 1800 L/H |
| Generator |
V5.0 |
V6.0 |
V6.0 |
V6.0 |
V6.0 |
V6.0 |
| Material of Horn | Titanium alloy | |||||
| Size |
Generator: 200*420*280 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Applications
Emulsion: emulsion drug, cosmetics, leather shoes oil, W/O,O/W and so on.
Food Industry: soft drink, tomato sauce, mayonnaise, jam, artificial milk oil, infant food, chocolates, salad oil and so on.
Advantages
Compared with Traditional Homogenizer
- Emulsion average droplet size small, can be 0.2 ~ 2um; the droplet size distribution is narrow, can be 0.1 ~ 10um or more narrow.
- High concentration of pure emulsion concentration, can be more than 30%, additional emulsifier can be as high as 70%.
- Emulsion stability, no or little used emulsifier to produce stable emulsion.
- Can be control the type of emulsion.
- In the different sound intensity conditions can form different types of emulsion.
- Ultrasonic homogenizer consumes little power.
Why Choose Us?
- Hangzhou Success Ultrasonic Equipment Co.,Ltd is the leader of high-power ultrasonic equipment in China.
- Our company was founded in 1978.We have more than 30 years experiences.
- We have more than 20 engineers.They can make design scheme according to your requirements.
- Our piezoeletric ceramic disc is imported from Germany.The transducer have longer service life.
- Welcome to send us your sample.We have an open laboratory.It is free for making experiment.And we will take a video for you.
- We are specializing in high-power ultrasonic device and approved by CE, BV, ISO 9001.
After-Sales Service
- 24 hours technical supports and after-sales service
- Non-human damage, one year guaranteed exchange, three years warranty
