Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Separation Equipment > YP-S61 20kHz Ultrasonic Biodiesel Equipment
YP-S61 20kHz Ultrasonic Biodiesel Equipment
US$ 2,500 - 8,850
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Extraction Equipment
Product Type:
Other, Biodiesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YP-S57 20Khz Ultrasonic Herb Extract Machine(Industrial Level)US$ 2,500 - 8,850MOQ: 1 Set -
YP-S55 20Khz Ultrasonic Emulsifier Machine(Industrial Level)US$ 2,500 - 8,850MOQ: 1 Set
-
YP-S55 Ultrasonic HomogenizerUS$ 2,500 - 8,850MOQ: 1 Set
-
YP-S17 20Khz Laboratory Ultrasonic Emulsification(Experiment Level)US$ 1,600 - 3,200MOQ: 1 Set
-
YP-S15 28Khz Laboratory Ultrasonic Homogenizer(Experiment Level)US$ 1,600 - 3,200MOQ: 1 Set
Condition
New
Type
Extraction Equipment
Product Type
Other, Biodiesel
Place of Origin
Zhejiang, China
Brand Name
FYCG
Model Number
YP-S61
Voltage
220 V
Power(W)
3000 W
Weight
40 Kg
Dimension(L*W*H)
Standard or Custom Made
Certification
CE,BV,ISO 9001
Warranty
3 Years
After-sales Service Provided
Engineers available to service machinery overseas
YP-S61 20kHz Ultrasonic Biodiesel Equipment
Product Description

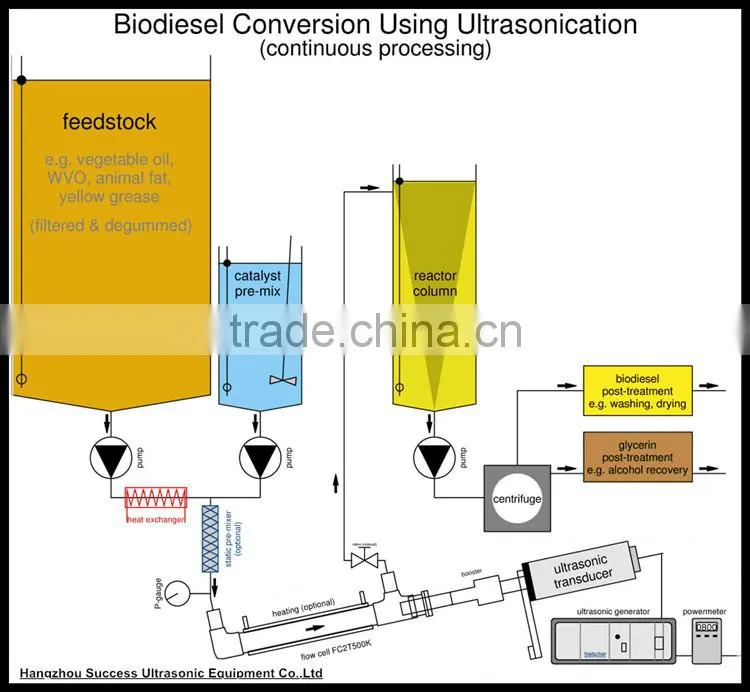

The point of biodiesel processing is catalytic ester and fatty acid esters of glycerol and methanol low carbon alcohol exchange reaction.The function of ultrasonic is strengthen the ester exchange reaction, enhancing the mixing (emulsion) effect and promote the intermolecular contact reaction. The need of high temperature (high pressure) under the conditions of the reaction at room temperature (or close to room temperature) conditions can be completed, shorten the reaction time. Ultrasonic is used not only for the ester exchange reaction, but also for the separation process, the reaction mixture.
Sepecification
| Model | YP-S51 | YP-S53 | YP-S55 | YP-S57 | YP-S59 | YP-S61 |
| Frequency | 28 kHz | 20 kHz | 20 kHz | 20 kHz | 20 kHz | 20 kHz |
| Power | 1000 W | 500 W | 1000 W | 1500 W | 2000 W | 3000 W |
| Voltage | 220±10% V | |||||
| Temperature | 300 °C | |||||
| Pressure | 30 MPa | |||||
| Intensity of sound | ≥15 W/cm² | ≥10 W/cm² | ≥20 W/cm² | ≥30 W/cm² | ≥40 W/cm² | ≥60 W/cm² |
| Capacity | 400 L/H | 300 L/H | 600 L/H | 900 L/H | 1200 L/H | 1800 L/H |
| Generator |
V5.0 |
V6.0 |
V6.0 | V6.0 | V6.0 | V6.0 |
| Material of Horn |
Titanium alloy | |||||
| Size |
Generator: 200*420*280 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Generator: 400*430*190 mm Horn:Standard or Custom Made |
Applications
Advantages
- Save mixing time 20%~60%
- Lower temps 30%~60%(30 degrees C)
- Less methanol 5%~30%
- Less chenical (KOH) less 20%~50%
- Total production cost save 15%~50%
- Another advantage is to save glycerol separation time,it will cost less methanol but glycerol separation faster.
Why Choose Us?
- Hangzhou Success Ultrasonic Equipment Co.,Ltd is the leader of high-power ultrasonic equipment in China.
- Our company was founded in 1978.We have more than 30 years experiences.
- We have more than 20 engineers.They can make design scheme according to your requirements.
- Our piezoeletric ceramic disc is imported from Germany.The transducer have longer service life.
- Welcome to send us your sample.We have an open laboratory.It is free for making experiments.And we will take a video for you.
- We are specializing in high-power ultrasonic device and approved by CE, BV, ISO 9001.
After-Sales Service
- 24 hours technical supports and after-sales service
- Non-human damage, one year guaranteed exchange, three years warranty
