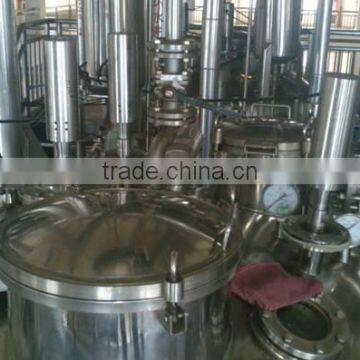

YP-S61 20Khz Ultrasonic Extraction Equipment ( Industrial Level)
This device is suitable for medicine, health care products , bio-pharmaceuticals , cosmetics, food and other industries ambient pressure extraction, ultrasonic extraction , ultrasonic cell crushing, and other processes. This set of equipment is ideal for universities, research institutes and enterprises, laboratories and pharmaceutical research and development departments of many varieties, small batch production use.
Advantage
1.Save mixing time 20%~60%
2.Lower temps 30%~60%(30 degrees C)
3. easily to do installation
4. operation in high efficience
5.doing extraction of the herb and triditional medicine plants effectively
6. digital generator V6.0 surpporting the system ; searching frequency automatically
Parameter
| Model | YP-S51 | YP-S53 | YP-S55 | YP-S57 | YP-S59 | YP-S61 |
Frequency |
28Khz | 20Khz | 20Khz | 20Khz |
20Khz | 20Khz |
| Power | 1000W | 500W | 1000W | 1500W | 2000W | 3000W |
| Voltage | 220 ±10V | 220 ±10V | 220 ±10V | 220 ±10V | 220 ±10V | 220 ±10V |
| Temperature | 800°C | 800°C | 800°C | 800°C | 800°C | 800°C |
| Pressure | 35MPa | 35MPa | 35MPa | 35MPa | 35MPa | 35MPa |
| Intensity of sound | ≥1.5W/cm2 | ≥1W/cm2 | ≥2W/cm2 | ≥4W/cm2 | ≥6W/cm2 | ≥8W/cm2 |
| Capacity | 200L/H | 150L/H | 350L/H | 550L/H | 700L/H | 900L/H |
Ultrasound of the transesterification reaction mechanism is based on cavitation.
In the ultrasonic irradiation, the liquid flow generated thousands of tiny bubbles, these tiny air bubbles vibrate in the effect of sound field, when the sound pressure reaches a certain value, the bubble rapidly growth, then bubbles burst and generated the burst wave, so that atmospheric pressure is generated around the thousands.
Radiation input energy is converted into frictional, waves and cavitation, cavitation bubbles burst of negative pressure can produce intense local high temperature ( about 5000K) and high pressure ( about 100Mpa), accompanied by a huge cooling rate ( greater than 109K / S) and the liquid jet stream ( about 400Km / h), and the agitation caused by the pressure of liquid can overcome the adhesion force and the adhesive force to the reaction system in a very short period of time to achieve better extraction.
