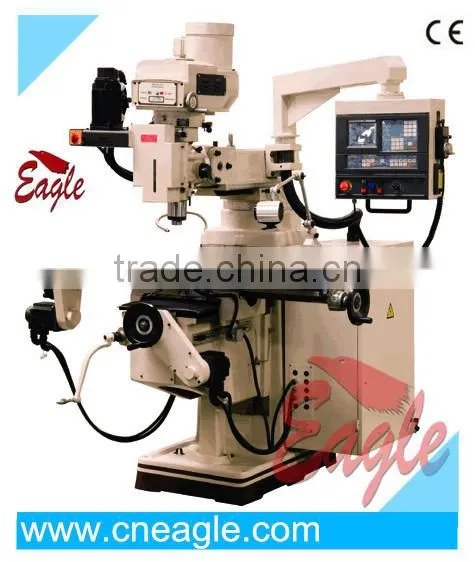

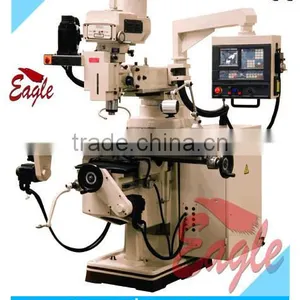

Universal Turret NC Milling Machine

Name: Universal Turret NC Milling Machine
Brand: Eagle
SKU: 140924752
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Eagle

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Eagle

Model Number NUM 23~30

CNC or Not CNC

Certification CE

Type Other, Vertical

Specifications

Universal turret NC Milling Machine

Universal turret NC Milling Machine

Universal turret NC Milling Machine
Model	Unit	NUM 23A	NUM 23B	NUM 25	NUM 25A	NUM 25B	NUM 25C	NUM 25D	NUM 30	NUM 30A
Table size	mm	230×10679''×42'') 230×12469''×49''		254×1270(10''×50'') 254×1370 (10''×54'')					305×137012''×54') 305×150012''×60'')
T-slot NO.and size	mm	3×16		3×16					3×16
Table loading	kg	200		400	380	380	400	400	360
X-axis (table longitudinal move) travel	mm	550/740		750/850					800/900
Y-axis (table cross move) travel	mm	300		400	380	380	400	400	360
Z-axis (quill move) travel	mm	127		127					127
X/Y/Z axis rapid feed	mm/min	5000		5000					5000
X/Y/Z axis servo motor	kw/HP	1		1					1
Knee vertical travel	mm	380		400					410
Ram travel	mm	315		465					500
Distance from spindle nose to table surface	mm	0380		0~400					0~410
Spindle speed	Rpm	standard:16 steps 50HZ 654500 60HZ 805440 optional:wariable 654200							standard:16 steps 50HZ 654500 60HZ 805440 optional:wariable 653750
Spindle hole taper	MT	(standard):R8 (optional):ISO40							ISO40
Spindle motor	HP	3		3					5
Head swivel	º	90		90					90
Head tilting	º	45		45	45	45	- -	45	45	- -
Package size	mm	1650×1900×2460		1900×2000×2460					2000×2000×2460
G.W.	kg	1200		1550			1700		1900
Item NO.		135010 135011	135021 135022	135030 135031	135040 135041	135050 135051	135060 135061	135070 135071	135080 135081	135090 135091
Standard accessory		Optionala ccessory
Draw bar		Air draw bar
Box and tools		Machine vise
Working lamp		Universal clamping kits
Electrical lubricating pump		Collets and chuck
Hung up control panel
Cooling system
Oil collecting plate
Plastic splashing guard
