Home > Instruments & Meters > Weighing & Measuring Apparatus > Measuring Device > Vernier Calipers With Nib Style Jaws
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Eagle
Model Number:
0-200mm 300mm 400mm 500mm 600mm 800mm 1000mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
Eagle
Model Number
0-200mm 300mm 400mm 500mm 600mm 800mm 1000mm
Specifications
1.Made of stainless steel2.Provided with a fine-adjustment carriage
3.Long jaws for measuring hard-to-reach position

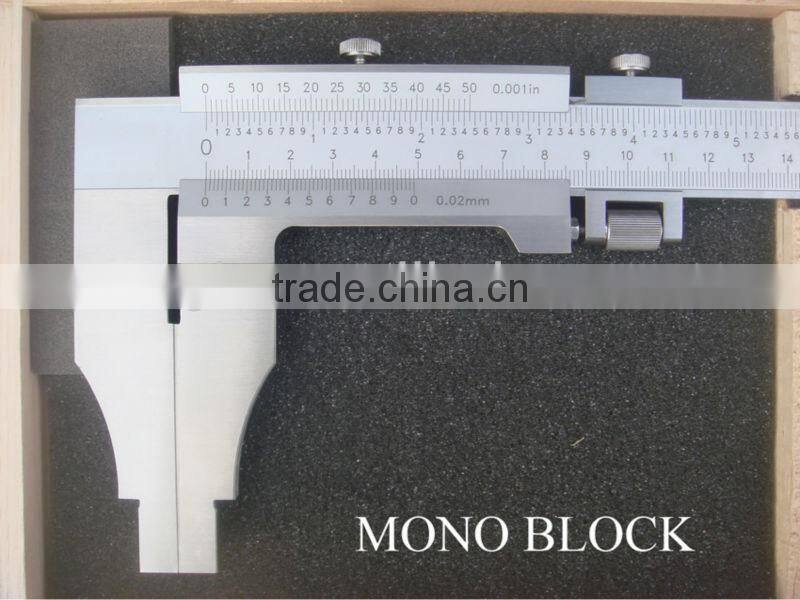

Vernier Calipers With Nib Style Jaws
Features
1.Made of stainless steel
2.Provided with a fine-adjustment carriage
3.Long jaws for measuring hard-to-reach position

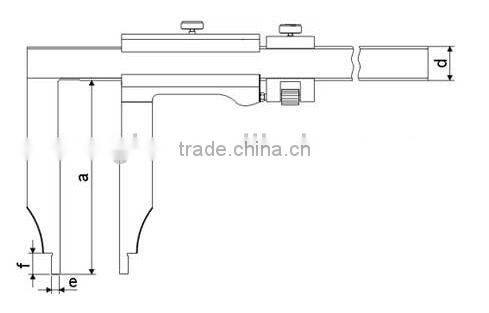

Size and Specifications
| Measuring Range | Resolution | Permissible Error | a | d | e | f | Item No. |
| mm | mm/inch | mm | mm | mm | mm | mm | |
| 0/10-250 | 0.02/.001" | ±0.04 | 80 | 20 | 5 | 12 | 710326 |
| 0/10-300 | 0.02/.001" | ±0.04 | 90 | 20 | 5 | 12 | 710327 |
| 0/20-300 | 0.02/.001" | ±0.04 | 150 | 24 | 10 | 18 | 710328 |
| 0/20-400 | 0.02/.001" | ±0.05 | 150 | 31 | 10 | 24 | 710329 |
| 0/20-400 | 0.02/.001" | ±0.05 | 200 | 31 | 10 | 24 | 710330 |
| 0/20-500 | 0.02/.001" | ±0.05 | 150 | 31 | 10 | 24 | 710331 |
| 0/20-500 | 0.02/.001" | ±0.05 | 200 | 31 | 10 | 24 | 710332 |
| 0/20-500 | 0.02/.001" | ±0.05 | 250 | 42 | 10 | 24 | 710333 |
| 0/20-600 | 0.02/.001" | ±0.07 | 150 | 31 | 10 | 24 | 710334 |
| 0/20-600 | 0.02/.001" | ±0.07 | 200 | 31 | 10 | 24 | 710335 |
| 0/20-600 | 0.02/.001" | ±0.07 | 250 | 42 | 10 | 24 | 710336 |
| 0/20-800 | 0.02/.001" | ±0.07 | 200 | 31 | 10 | 24 | 710337 |
| 0/20-1000 | 0.02/.001" | ±0.07 | 150 | 31 | 10 | 24 | 710338 |
| 0/20-1000 | 0.02/.001" | ±0.07 | 300 | 50 | 10 | 24 | 710339 |

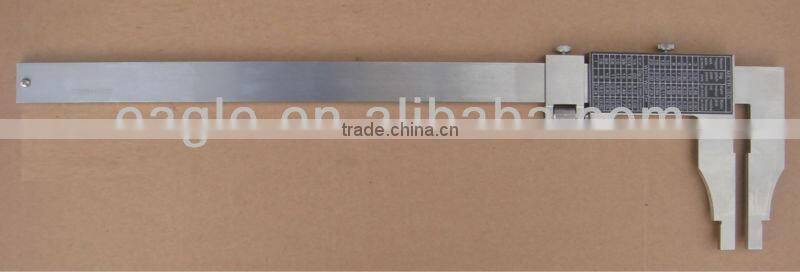

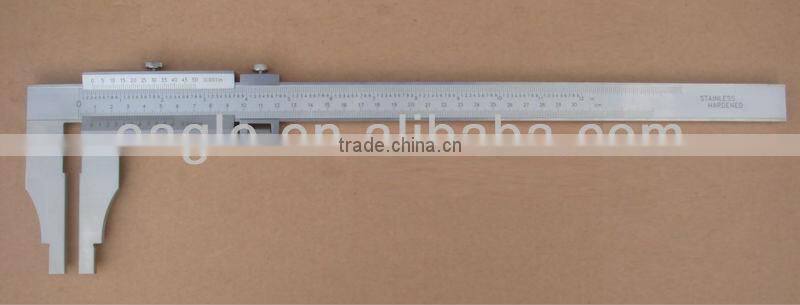

Pictures for Reference
