Home > Instruments & Meters > Weighing & Measuring Apparatus > Measuring Device > Parallax-free Plane Vernier Calipers Mono-block Verniers
Parallax-free Plane Vernier Calipers Mono-block Verniers
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Eagle
Model Number:
150mm.200mm.300mm
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
Eagle
Model Number
150mm.200mm.300mm
Specifications
1.Made of stainless steel2.Can measure OD, ID, depth and steps
3.Parallax-free vernier scales for easy and positive measureme
Parallax-free Plane Vernier Calipers Mono-block Vernier
Features
1.Made of stainless steel
2.Can measure OD, ID, depth and steps
3.Parallax-free vernier scales for easy and positive measurement

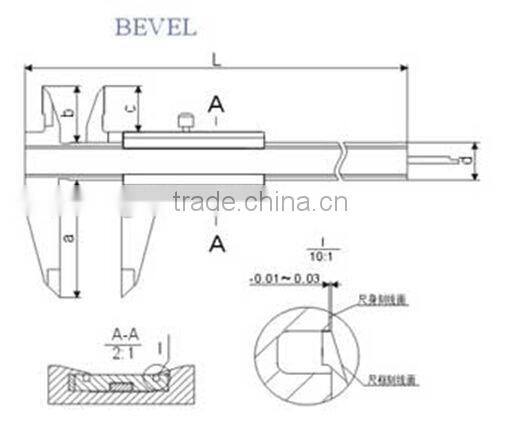

Size and Specifications
| Measuring Range | Veriner reading | Permissible Error | L | a | b | c | d | Remarks | Item No. |
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 0-150 | 0.02 | ±0.03 | 236 | 40 | 21 | 16.5 | 16 | With depth bar | 710317 |
| 0-150 | 0.05 | ±0.05 | 236 | 40 | 21 | 16.5 | 16 | 710318 | |
| 0-200 | 0.02 | ±0.03 | 286 | 50 | 24 | 19.5 | 16 | 710319 | |
| 0-200 | 0.05 | ±0.05 | 286 | 50 | 24 | 19.5 | 16 | 710320 | |
| 0-300 | 0.02 | ±0.04 | 400 | 60 | 25 | 20.5 | 17 | 710321 | |
| 0-300 | 0.05 | ±0.08 | 400 | 60 | 25 | 20.5 | 17 | 710322 |

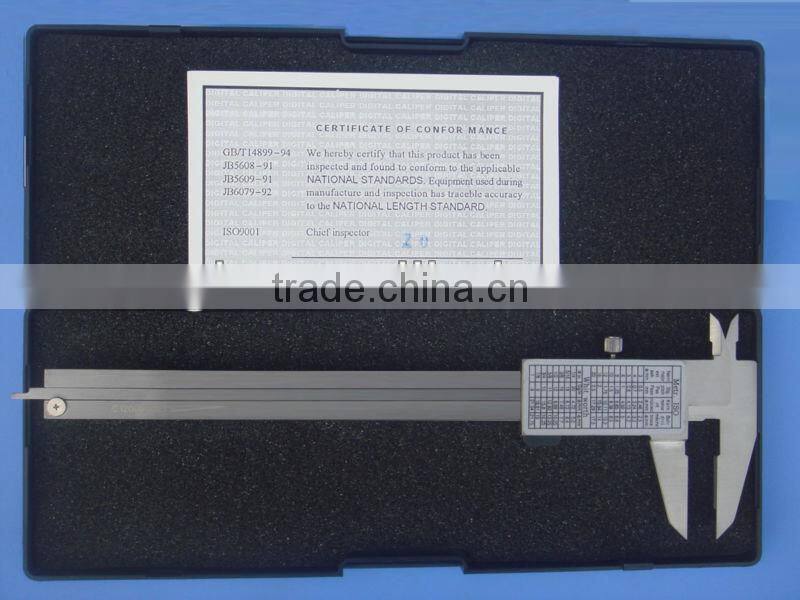

Pictures for Reference
