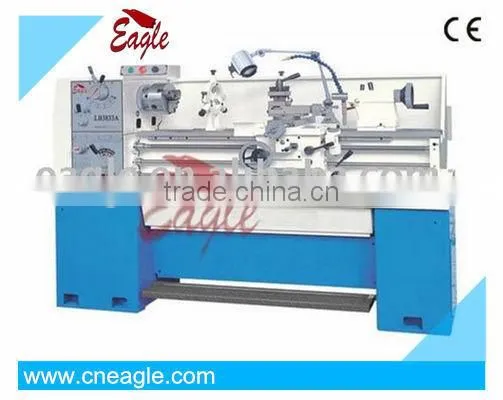

Bench Lathe

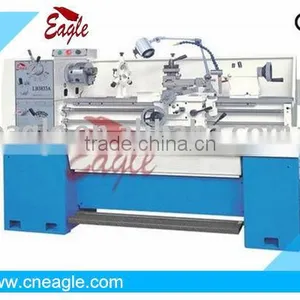

Bench Lathe thumbnail-1
Bench Lathe photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Place of Origin Shandong, China
Brand Name eagle
Model Number LB3833A

Specifications

1).CE standard
2).Max. swing over bed 330mm
3).Distance between centers 750~1000mm
4).Removable gap

Bench lathe:LB3833A

Feature:

Precision ground supersonic frequency handened bed ways.

The spindle is supported with precision roller bearings.

Headstock gears ate made of high quality steel, ground and hardened.

Spindle speed range 70~2000 RPM

Sealed and easy operating feed box has various feeds and threads cutting functions.

Model Unit LB3833A×750 LB3833A×1000
Max. swing over bed  mm 330
Max. swing over cross slide mm 198
Max. swing over gap mm 476
Distance between centers mm 750 1000
Spindle bore mm 38
Taper of spindle bore   MT5
Number of spindle speed   8
Range of spindle speed r/min 70~2000
Range of longitudinal feeds mm/rev 0.067~1.019
Range of cross feeds mm/rev 0.018~0.275
Range of metric threads mm 0.45~10
Range of inch threads tpi 3.5~80
Taper of tailstock bore   MT3
Travel of tailstock sleeve mm 95
Power of motor kw 1.5
N.W/G.W kg 400/495 495/595
Item NO.   111025 111026
Standard accessories Optional accessories
3-Jaw chuck(160mm) Work light
Change gears set Foot brake system
MT3 dead centers  Coolant system
Tool box with tools Leadscrew guard
Oil gun 4-jaw chuck(200mm)
MT5/3 sleeve Face plate
  Steady plates
  Follow rest
