LB3830A Light Lathe
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao China
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Max. Swing Diameter | 310mm | |
| Place of Origin | Shandong, China | Brand Name | EAGLE | |
| Model Number | LB3830A Light Lathe | Power(W) | 1.1/1.5kw | |
| Weight | net/gross weight: 510/609kg | Certification | CE | |
| After-sales Service Provided | No overseas service provided |
Product Description
Specifications
LB3830A Light Lathe1).Pass CE Gost
2).Max. swing over bed 310mm
3).Distance between centers 750mm

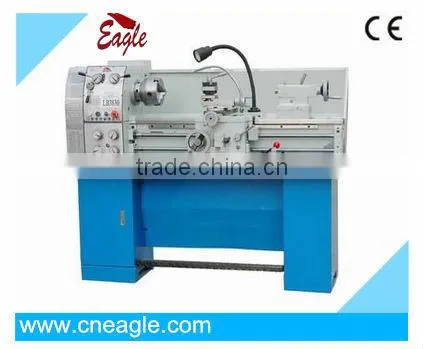

LB3830A Light Lathe
Feature:
-Precision ground and supersonic frequency hardened bed ways.
-The spindle is supported with precision roller bearing.
-Headstock gears are made of high quality steel, ground and hardened.
-Removable gap is provided for larger diameter work.
-Easy operating gear box has various feeds and thread cutting function.
-Strong power motor suited for heavy duty cutting
specifications:
| Model | Unit | LB3830A×750 | LB3830A×910 | Standard accessories | Optional accessories | |
| Max. swing over bed | mm | 310 | 3-Jaw chuck(160mm) | Drill chuck with arbor | ||
| Max. swing over cross slide | mm | 180 | Change gears set | Work light | ||
| Max. swing over gap | mm | 450 | MT3 dead centers | Foot brake system | ||
| Distance between centers | mm | 750 | 910 | Tool box with tools | Coolant system | |
| Spindle bore | mm | 38 | Oil gun | Leadscrew guard | ||
| Taper of spindle bore | MT5 | MT5/3 sleeve | 4-jaw chuck(200mm) | |||
| Range of spindle speed | r/min | 65~1400(65~1810) | Foot stands | Face plate | ||
| Range of longitudinal feeds | mm/rev | 0.0527~1.29 | Splash guard | Steady plates | ||
| Range of cross feeds | mm/rev | 0.011~0.276 | Oil tray | Follow rest | ||
| Range of metric threads | mm | 0.4~7 | MT3 live center | |||
| Range of inch threads | TPI | 4~60 | Localizer | |||
| Max. size of tool shank | mm | 14×14 | Clutch for fees rod | |||
| Taper of tailstock bore | MT3 | Quick change tool post | ||||
| Power of motor | kw | 1.1/1.5 | ||||
| N.W/G.W | kg | 510/609 | ||||
| Item NO. | 114010 | 114011 | ||||
