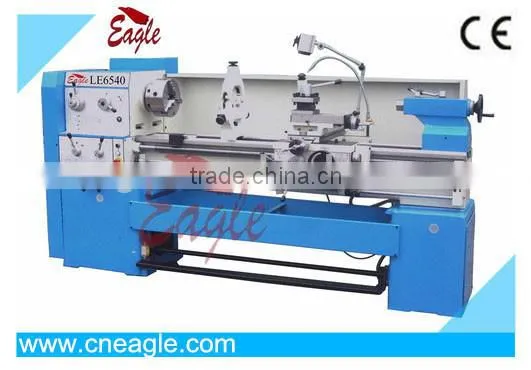

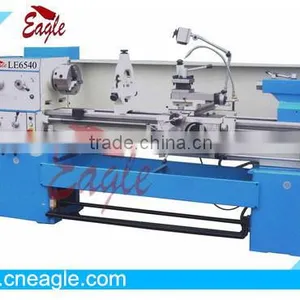

LE6540 BENCH LATHE

Name: LE6540 BENCH LATHE
Brand: EAGLE
SKU: 140923912
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Max. Swing Diameter 400mm

Place of Origin Shandong, China

Brand Name EAGLE

Model Number LE6540 BENCH LATHE

Power(W) 4kw

Certification CE

After-sales Service Provided No overseas service provided

Specifications

LE6540 BENCH LATHE
1).Pass CE,Gost
2).Max. swing over bed 400mm
3).Distance between centers 1000/1500/2000mm

LE6540 BENCH LATHE

Feature:

specifications:

Model	Unit	LE6540×1000	LE6540×1500	LE6540×2000	Standard accessories
Max. swing over bed	mm	400			3-Jaw chuck(160mm)
Max. swing over cross slide	mm	225			Driving plate
Max. swing over gap	mm	550			Center & center sleeve
Effective length of gap	mm	260			Tool box with tools
Bed width	mm	330			Oil gun
Distance between centers	mm	1000	1500	2000	Change gears set
Spindle nose		ISO-C6 OR ISO-D6
Spindle bore	mm	65
Taper of spindle bore		Metric 70mm			Optional accessories
Number of spindle speed		15			Steady plates
Range of spindle speed	r/min	22~1800			Follow rest
Range of longitudinal feeds	mm/rev	0.072~4.038			4-jaw chuck(200mm)
Range of cross feeds	mm/rev	0.036~2.019			Face plate
Range of metric threads	mm	0.5~28			Thread dial
Range of inch threads	tpi	1~56			Longitudinal automatic trip
Diameter of tailstock sleeve	mm	65			Live center
Taper of tailstock bore		MT5			Quick change toolpost
Travel of tailstock sleeve	mm	120			Taper copy ruler
Power of motor	kw	4.0 or 5.5			4-position longitudinal automatic trip
N.W/G.W	kg	1560/2210	1770/2410	2010/2780	4-position longitudinal automatic trip
Overall dimensions (L×W×H)	mm	2420×1150×1800	2920×1150×1800	3460×1150×1800
Item NO.		115003	115004	115008
