LE5841 BENCH LATHE

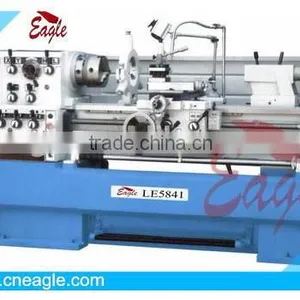

LE5841 BENCH LATHE thumbnail-1

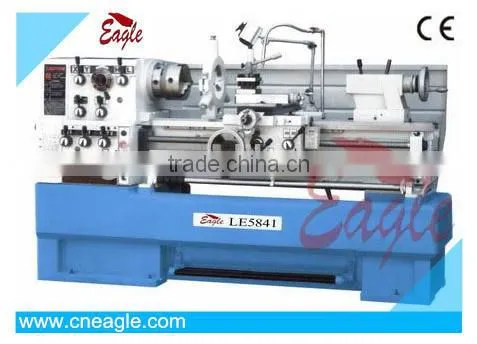

LE5841 BENCH LATHE photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Max. Swing Diameter 410mm
Place of Origin Shandong, China
Brand Name EAGLE
Model Number LE5841 BENCH LATHE
Power(W) 4/5.5kw
Dimension(L*W*H) 2250*1120*1700mm
Weight net/gross weight: 1670/1980kg
Certification CE
After-sales Service Provided No overseas service provided

Specifications

LE5841 BENCH LATHE
1).Pass CE,Gost
2).Max. swing over bed 410mm
3).Distance between centers 1000/1500mm

LE5841 BENCH LATHE



Feature:

  • Precision ground and supersonic frequency hardened bed way is designed in double wall structure, giving superb rigidity.
  • The spindle system is high in rigidity and accuracy.
  • The design of the main drive is optimized and the gears in the headstock are precision ground.
  • he noise of the machine is low.
  • There is no need for change gears.
  • The machine can turn about 200 kinds of metric, whit worth, module and D.P. threads.
  • An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe.
  • A pedal braking device providing quick and effective stop while operating.



specifications:





Model Unit LE5841×1000 LE5841×1500 LE5846×1000 LE5846×1500
Max. swing over bed mm 410 460
Max. swing over cross silde mm 224 274
Max. swing over gap mm 640 690
Length of gap mm 155 155
Distance between centers mm 1000 1500 1000 1500
Spindle nose   D1-6 D1-6
Spindle bore mm 58 58
Taper of spindle bore   MT6 MT6
Number of spindle speed   12 12
Range of spindle speed r/min 25~2000 25~2000
Range of longitudinal feeds mm/rev 0.031~1.7 0.031~1.7
Range of cross feeds mm/rev 0.014~0.784 0.014~0.784
Range of metric threads mm 0.1~14 0.1~14
Range of inch threads TPI 2~112 2~112
Taper of tailstock bore   MT4 MT4
Power of motor kw 4(optional 5.5) 4(optional 5.5)
N.W/G.W kg 1670/1980 1970/2320 1720/2045 2020/2385
Overall dimensions (L×W×H) mm 2250×1120×1700 2800×1120×1700 2250×1120×1700 2800×1120×1700
Item NO.   114045 114046 114050 114051







Standard accessories   Optional accessories
3-Jaw chuck(160mm) Splash guard Face plate Taper turning attachment Digital readout
Change gears set Coolant system Steady plates Quick change tool post Chuck guard
Chasing dial indicator Brake system Follow rest Digital readout(2Axis) Live center
Reduction sleeve 4 jaw chuck Dead centers Drill chuck with arbor Work light
Tool box with tools     Leadscrew guard
