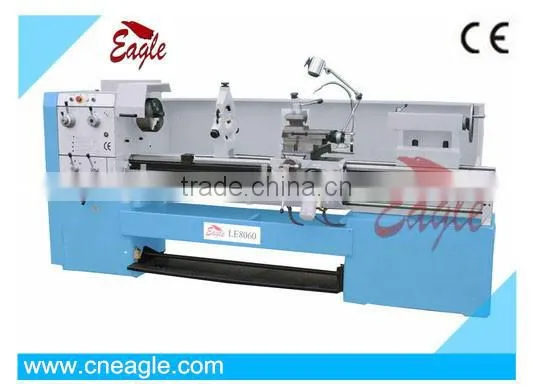

Engine Lathe

Engine Lathe thumbnail-1
Engine Lathe photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Place of Origin Shandong, China
Brand Name eagle
Model Number LE8040

Specifications

1).CE standard
2).Max. swing over bed 400mm
3).Distance between centers 1000~2000mm
4).Removable gap

Bench lathe:LE8040

Feature:

1,Large plane, good looking

2,Hardened & PEISHAUER-ground gears.

3,Dynamically balanced main spindle.4,Safety torque limiting device for lead screw.

4,Mutiple choice, you can choose metric or inch system, right or left hand wheel, mutiple voitages and frequencies, with or without "CE" protection system and rapid moving system.

Model Unit LE8040×1000 LE8040×1500 LE8040×2000
Max. swing over bed  mm 400
Max. swing over cross silde mm 225
Max. swing over gap mm 550
Effective length of gap mm 260
Bed width mm 330
Distance between centers mm 1000 1500 2000
Spindle nose   ISO-C8 OR ISO-D8
Spindle bore mm 80
Taper of spindle bore   Metric 85mm
Number of spindle speed   15
Range of spindle speed r/min 24~1600
Range of longitudinal feeds mm/rev 0.072~4.038
Range of cross feeds mm/rev 0.036~2.019
Range of metric threads mm 0.5~28
Range of inch threads tpi 1~56
Diameter of tailstock sleeve mm 65
Taper of tailstock bore   MT5
Travel of tailstock sleeve mm 120
Power of motor kw 4.0 or 5.5 or 7.5
N.W/G.W kg 1640/2290 1850/2550 2090/2860
Overall dimensions (L×W×H) mm 2420×1150×1800 2920×1150×1800 3460×1150×1801
Item NO.   115017 115018 115019



Standard accessories Optional accessories
3-Jaw chuck(160mm) Steady plates
Driving plate Follow rest
Center & center sleeve  4-jaw chuck(200mm)
Tool box with tools Face plate
Oil gun Thread dial
Change gears set Longitudinal automatic trip
  Live center
  Quick change toolpost
  Taper copy ruler
  4-position longitudinal automatic trip
