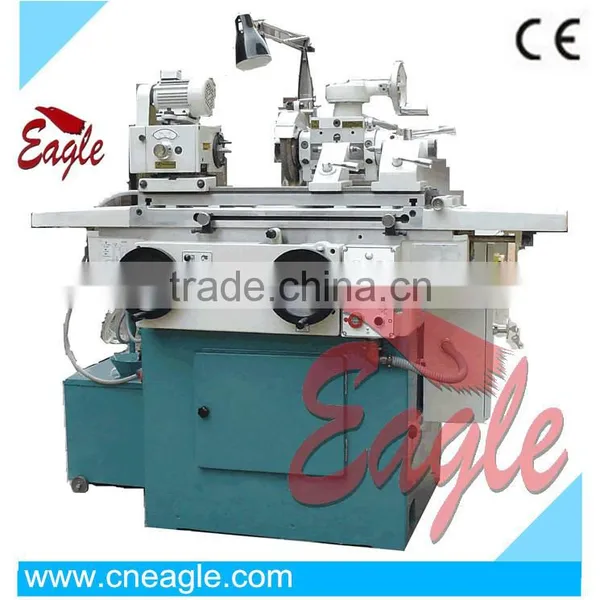

Universal Tooling GrinderThe functionality of M200 ranges from external and internal cylindrical grinding to taper grinding
Universal Tooling Grinder M200
The functionality of M200 ranges from external and internal cylindrical grinding to taper grinding. The Multi- Grind also allows easy tool grinding
(sharpening of cutters, reamers and turning tools) and is suitable for light surface grinding jobs.
Three-Point Bearing
The custom three-point bearing of the grinding spindle ensures minimum temperature effects and consistent grinding quality.
Feed Drives
Hydraulic table feed (longitudinal) with automatic change of direction. An additional manually operated longitudinal feed with hydraulic support allows
feed speeds up to 7 m/min.
Grinding Headstock
Special grinding headstock design allows simultaneous setup of 2 different grinding wheels. The grinding headstock travels transverse, is height adjustable,
and swivels around the vertical axis.
Speeds
The headstock operates at 3 different speeds (110, 200, 300 min-1) which are set through an easy to operate gear shift lever.
Additional Features
- Central lubrication system
- Sturdy construction the KNUTH Multi-Grind body is made of solid cast-iron and weighs 1300 kg; minimizes vibration effects
- Electrical components are mounted easily accessible in a control cabinet and conform to VDE regulations
- an extensive assortment of accessories, incl. coolant system (delivery up to 22 l/min), and vacuum system are standard equipment
Standard Equipment
- coolant system
- dust suction system
- tool mount/indexing head MT 4
- internal grinding unit, including 2 die grinders
- 4 grinding wheels - three-jaw chuck, 100 mm diam.
- left tailstock
- right tailstock MT 2
- center point
- half center point
- balancing stand
- spindle extension
- vise for surface grinding (3-D angle adjustment)
- spring stop
- 5 drivers
- dresser
- various splash guards
- wheel guard (2x)
- automatic central lubrication
- operation manual
- test certificate
| Specifications | |||
| max. workpiece diameter | mm | 200 | |
| max. workpiece length | mm | 500 | |
| max. external grinding dimensions | mm | 5 - 50 x 400 | |
| max. internal grinding dimensions | mm | 10 - 50 x 75 | |
| tool grinding dimensions | mm | 200 x 500 | |
| surface grinding dimensions | mm | 200 x 50 | |
| max. workpiece weight | kg | ca. 10 | |
| taper of headstock | MT 2 | ||
| speeds of headstock | min-1 | 110, 200, 300 | |
| swivel | ±90° | ||
| chuck diameter | mm | 100 | |
| traverse (manual) grinding headstock | vertical | mm | 200 |
| transverse | mm | 200 | |
| scale division for height adjustment | mm | 0,01 | |
| height adjustment per handwheel rotation | mm | 1 | |
| scale division for transverse feed fine/coarse | mm | 0,005 / 0,02 | |
| transverse adj. per handwheel rotation fine/coarse | mm | 14 | |
| (horizontal) swivel range of grinding headstock | ±90° | ||
| grinding spindle speed | min-1 | 2500 | |
| max. grinding wheel dimensions | mm | 200 x 20 x 75 | |
| die grinder | min-1 | 13500 | |
| internal grinding spindle speed | mm | 25 x 20 x 6, 10 x 10 x 3 | |
| max. longitudinal table traverse | mm | 480 | |
| longitud. feed speed (hydraulic) | mm | ca. 0,01 - 6 | |
| manual, w/ hydraulic support | m/min | up to ca. 7 | |
| table swivel range | + 45°- 30° | ||
| tailstock taper | MT 2 | ||
| quill travel | mm | 14 | |
| total drive output | kW | 2,525 | |
| grinding wheel motor output | kW | 1,1 | |
| dimensions (L x B x H) | mm | 1520 x 1130 x 1170 | |
| weight | kg | 1300 | |
| Part No. | 123005 | ||
