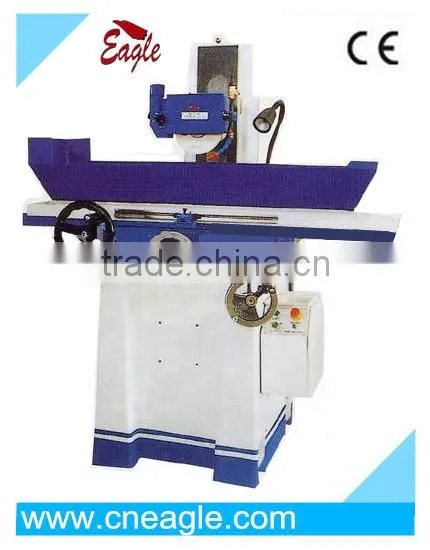

Precision Surface Grinder

Name: Precision Surface Grinder
Brand: EAGLE
SKU: 140923754
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

Brand Name:

EAGLE

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

Brand Name EAGLE

Model Number M818,M618

Specifications

Precision Surface Grinder

	MODEL	M618	M818
SPECIFICATIONS
Max. width to be ground		160(6⁵/₁₆)	230(9")
Max. length to be ground		470(18^1"/₂)	480(19")
Max. height to be ground		300(12")	370(14^9"/₁₆)
Table size		150×460 (6"×18")	210×450 (8"×18")
Max. longitudinal travel of the table		485(19")	500(19^11"/₁₆)
Max. cross travel of the table		175(7")	245(9^1"/₂)
Max. distance of table surface to spindle center		400(15^11"/₁₆)	470(18^1"/₂)
Vertical movement of hand feed (Per division)		1(0.05") 0.005(0.00025")	1(0.05") 0.005(0.00025)
Grinding wheel size (O.D×W×I.D)		200×13×32	200×13×32
Wheel spindle speed 60HZ		3450r/min	3440r/min
50HZ		2850r/min	2880r/min
Power of wheelhand motor		2HP/2P	2HP/2P
Machine weight		720kg	800kg
Machine dimension (L×W×H)		1365×1000×1850 (54"×39"×73")	1510×1315×1730 (60"×52"×68")
Package dimension (L×W×H)		1760×1300×1980 (69"×51"×78")	1760×1300×1980 (69"×51"×78")
Item No.		121010	121015

Standard accessories				Optional accessories
Wheel	1pc	Wheel dresser	1pc	Permanent magnet plate	1set
Wheel balance bar	1pc	Level wedge and screw	1set	Dust collector	1set
Hoisting set	4pcs	Tool box and special wrench	1set	Wheel balance stand	1set
Monkey spanner	1pc	Illumination lamp	1set	Cooling and dust collecting equipment	1set
Wheel chuck	1pc			Cooling equipment	1set
