Precision Die Sinking EDM Machine

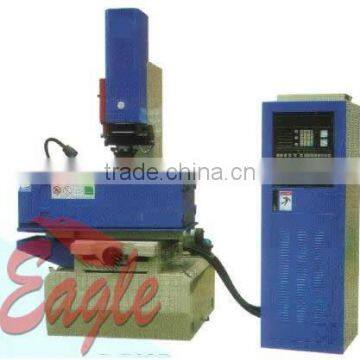

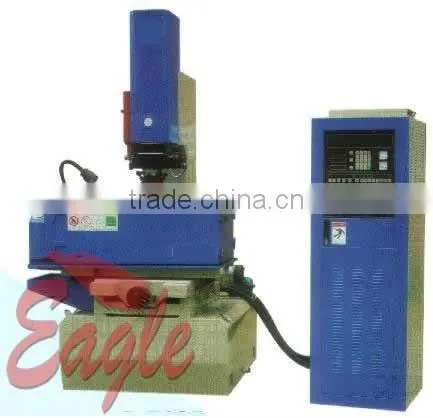

Precision Die Sinking EDM Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
eagle
Model Number:
EDM350 450
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name eagle
Model Number EDM350 450

EDM MACHINE
1.adopting high precision DC servomotor
2.With the function of PC hand wheel
3.Time saving,energy saving and etc



 specificationEDM350 EDM450
Parameter
working table (mm)350×630 450X700
working groove (mm)980×650×350 1210X770X450
X axis travel (mm)350 450
Y axis travel (mm)250 350
Z axis travel (mm)300(200)* 200
Work head travel (mm)200 250
Chief axis connectboard to working table (mm)600(700) 650
Max.electrode weight (kg)50 75
piece weight (kg)500 650
Overall dimension of  workfluid container1440×1460×2225 1560X1600X2165
Net weight of machine (kg)1300 1800
Max.machining current60 80
Max.machining current (mm3/min)500 800
Minrate of electorode wear≤0.2%  ≤0.2%
Optinum roughnessumRα<0.3 Rα<0.3
Item no .161014 161018

*Adopting higeh precision DC servomotor
*With the function of PC hand wheel,it is easier to remove the machine
*Adopting the prepressing high precision bearing working in high precision ball screw ,with good rigidity.

Optional accessory:
Magnetic working table
Fire extinguisher
Horizontal fine-adjustment head
