CNC Die Sinking EDM Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
EAGLE
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shandong, China
Brand Name
EAGLE
Model Number
EDM500 700
Certification
CE

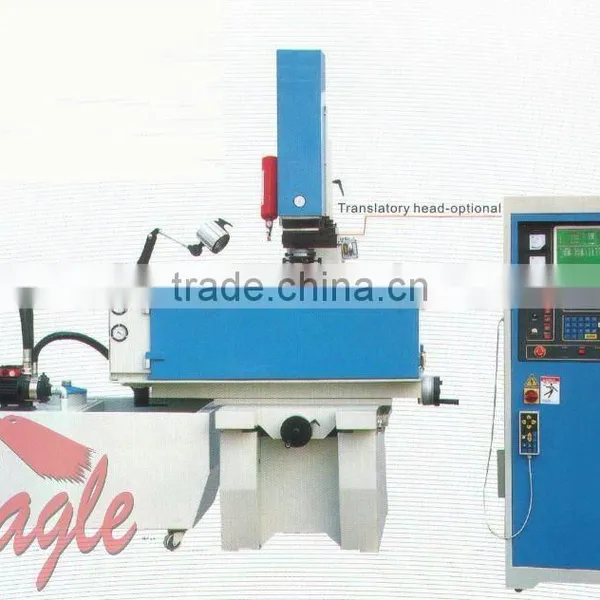

CNC Die Sinking EDM Machine
1.adopting high precision DC servomotor
2.With the function of PC hand wheel
3.Time saving,energy saving and etc
| specification | EDM500 | EDM700 | |
| Parameter | |||
| working table (mm) | 500X800 | 700×1200 | |
| working groove (mm) | 1450X920X500 | 2000×1100×550 | |
| X axis travel (mm) | 500 | 700 | |
| Y axis travel (mm) | 400 | 600 | |
| Z axis travel (mm) | 200 | 300 | |
| Work head travel (mm) | 250 | 350 | |
| Chief axis connectboard to working table (mm) | 750 | 1100 | |
| Max.electrode weight (kg) | 100 | 200 | |
| piece weight (kg) | 850 | 2000 | |
| Overall dimension of workfluid container | 1810X1500X2295 | 1855×1410×2550 | |
| Net weight of machine (kg) | 2000 | 3800 | |
| Max.machining current | 80 | 1500 | |
| Max.machining current (mm3/min) | 800 | 1500 | |
| Minrate of electorode wear | ≤0.2% | ≤0.2% | |
| Optinum roughnessum | Rα<0.3 | Rα<0.3 | |
| Item no . | 161020 | 161022 | |
*Adopting higeh precision DC servomotor
*With the function of PC hand wheel,it is easier to remove the machine
*Adopting the prepressing high precision bearing working in high precision ball screw ,with good rigidity.
Optional accessory:
Magnetic working table
Fire extinguisher
Horizontal fine-adjustment head<
