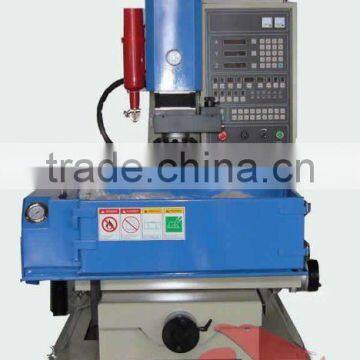

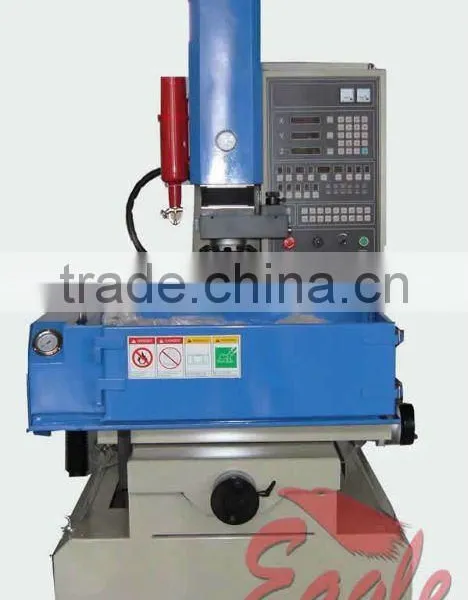

Die Sinking EDM Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Place of Origin
Shandong, China
Brand Name
Eagle
Certification
CE
Specifications
Die Sinking EDM MachineEDM MACHINE
1.adopting high precision DC servomotor
2.With the function of PC hand wheel
3.Time saving,energy saving and etc
| specification | EDM250 | EDM300 | |
| Parameter | |||
| working table (mm) | 280×450 | 300×450 | |
| working groove (mm) | 800×490×280 | 890×530×320 | |
| X axis travel (mm) | 250 | 300 | |
| Y axis travel (mm) | 200 | 200 | |
| Z axis travel (mm) | 200 | 200 | |
| Work head travel (mm) | |||
| Chief axis connectboard to working table (mm) | 540 | 580 | |
| Max.electrode weight (kg) | 30 | 50 | |
| piece weight (kg) | 200 | 300 | |
| Overall dimension of workfluid container | 1390×1480×2100 | 1390×1480×2100 | |
| Net weight of machine (kg) | 1000 | 1200 | |
| Max.machining current | 40 | 60 | |
| Max.machining current (mm3/min) | 400 | 500 | |
| Minrate of electorode wear | ≤0.2% | ≤0.2% | |
| Optinum roughnessum | Rα<0.3 | Rα<0.3 | |
| Item no . | 161010 | 161012 | |
