Specifications
rotary staking machine for sheepfting by double or single blade
2.sheep or goat with wool skin
fting and setting o

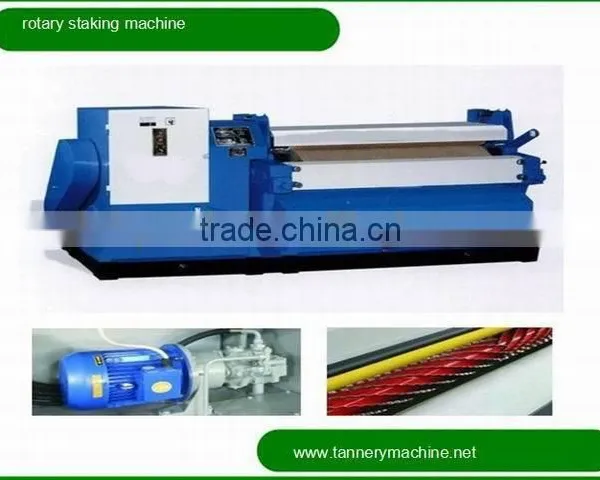

The machine is designed to stake and set out dried leather for fine grain and smooth finish. It is a key machine to improve the quality of soft leather.
Compact and versatile, the Machine is particularly suitable for the processing of goat and sheep skins, double face as well as of light hides. Rugged construction (exclusive heavy duty full piece frame), reduced maintenance, easy adjustment and high working speed make the difference between this modern machine and all traditional rotary staking machines. The combined action of two blade rollers and of two special design feed rollers (exclusive double layer rubber and wear resistant leather coat) allow the best staking, the complete spud ding and the perfect spreading of all types of leather. Thanks to the special design of the blades edge and to the separate control for the adjustment of the speed of the two feed rollers, the machine can get matchless performance on the large, heavy and rigid leathers as well as on the most delicate, soft and small size leathers, with the best surface yield and the minimum loss due to staking wastes even on double-face leathers.
The machine is equipped with two blade rollers. The first roller with wave shaped blades is designed to carry out the heavy staking and the spud ding action whereas the second roller, provided by straight profile blades, has the goal of completing the staking action and of spreading and setting out the leather surface
The special hydraulic system with variable delivery hydraulic pump prevents any overheating of the oil and allows reduced power consumption and high opening and closing speed. The Machine is actually the fastest rotary staking machine available.
The setting up of the special leather coat of the two feed rollers has definitely solved the adjustment problems related to the traditional leather sleeves (fitted on two rollers) and has allowed a more rational design of the work area getting an easier feeding of the leather into the machine with a consequent increase of the performances
roller 2.blade roller 3.upper idle roller 4.lower idle roller 5.leather
|
Machinery detail(3-Phase, 380/440V, 50Hz ) :
Item | Specifications | Detail |
1 | Working width | 1500mm |
2 | Feeding spead | 2-17m/min |
3 | Total power | 11KW |
4 | Total weight | 3500Kg |
5 | Overall dimension | 3450×1180×16 |
